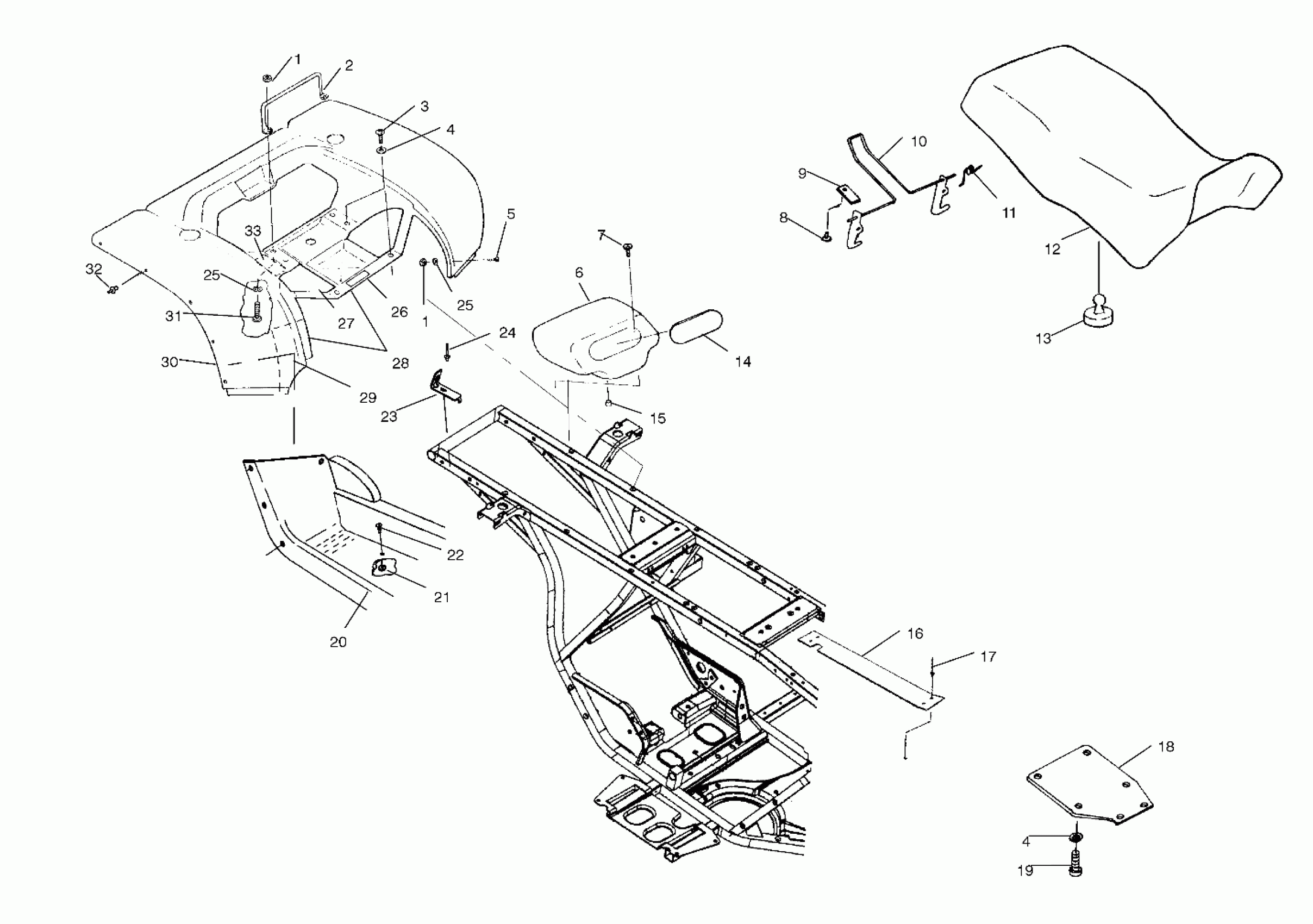

Polaris TRAIL BOSS 330 - A03CA32AA REAR CAB and SEAT - A03CA32AA (4978627862A04) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$1.49

1

Nut, Nylok

7541925

$1.49

2

Retainer, Seat Latch

5246091

$10.71

3

SCREW

7512242

$2.39

4

Washer, Flat

7555859

$1.49

4

Washer, Flat

7555859

$1.49

5

Screw

7512085

Unavailable

6

Box, Tool

5434040

$32.95

7

Screw

7517375

Unavailable

8

RIVET

7621403

$1.49

9

BRACKET, LEVER RETAINER

5211033

$29.25

10

LATCH, SEAT

1040387

$47.99

11

SPRING, LATCH

7041370

$9.59

12

Covering, Seat (AB)

2682958-070

$141.65

12

Asm., Seat, Black [Incl. 8-13](AB)

2682957-070

$424.98

12

Asm., Seat, Silver [Incl. 8-13](AA)

2682957-320

$424.98

12

Covering, Seat (AA)

2682958-320

$141.65

13

BUMPER-RUBBER

5412067

$3.99

14

Cover, Tool Box

5431787

Unavailable

15

Cap, Drain

5410896

$5.59

16

Guard, Clutch

5241403-067

Unavailable

17

RIVET-3/16-.090-.290

7661637

$1.49

18

Guard, Rock

5432763

$87.99

19

Screw

7515179

$2.39

20

Footwell, Black, RH

5434417-070

$230.70

20

Footwell, Black, LH

5431771-070

$230.70

21

Nut, Nylok

7542122

$1.49

22

Screw

7517376

Unavailable

23

Mount, Cab, Rear

5245898

Unavailable

24

RIVET-3/16-.090-.290

7661637

$1.49

25

WASHER

7555792

$4.79

25

WASHER

7555792

$4.79

26

Decal, Carb/Filter Information

7170007

Unavailable

27

Foil

5811087

Unavailable

28

Foil, Rear Cab, Front

5811106

$8.89

29

Foil, Rear Fender

5811111

$32.37

30

Cab, Rear, Sonic Blue Metallic (AA)

5432117-341

Unavailable

30

Cab, Rear, Wine Invasion (AB)

5432117-424

Unavailable

31

Bolt

7511930

$2.39

32

Rivet

7081040

$1.49

33

Foil, Rear Cab, Rear

5811107

$6.46
