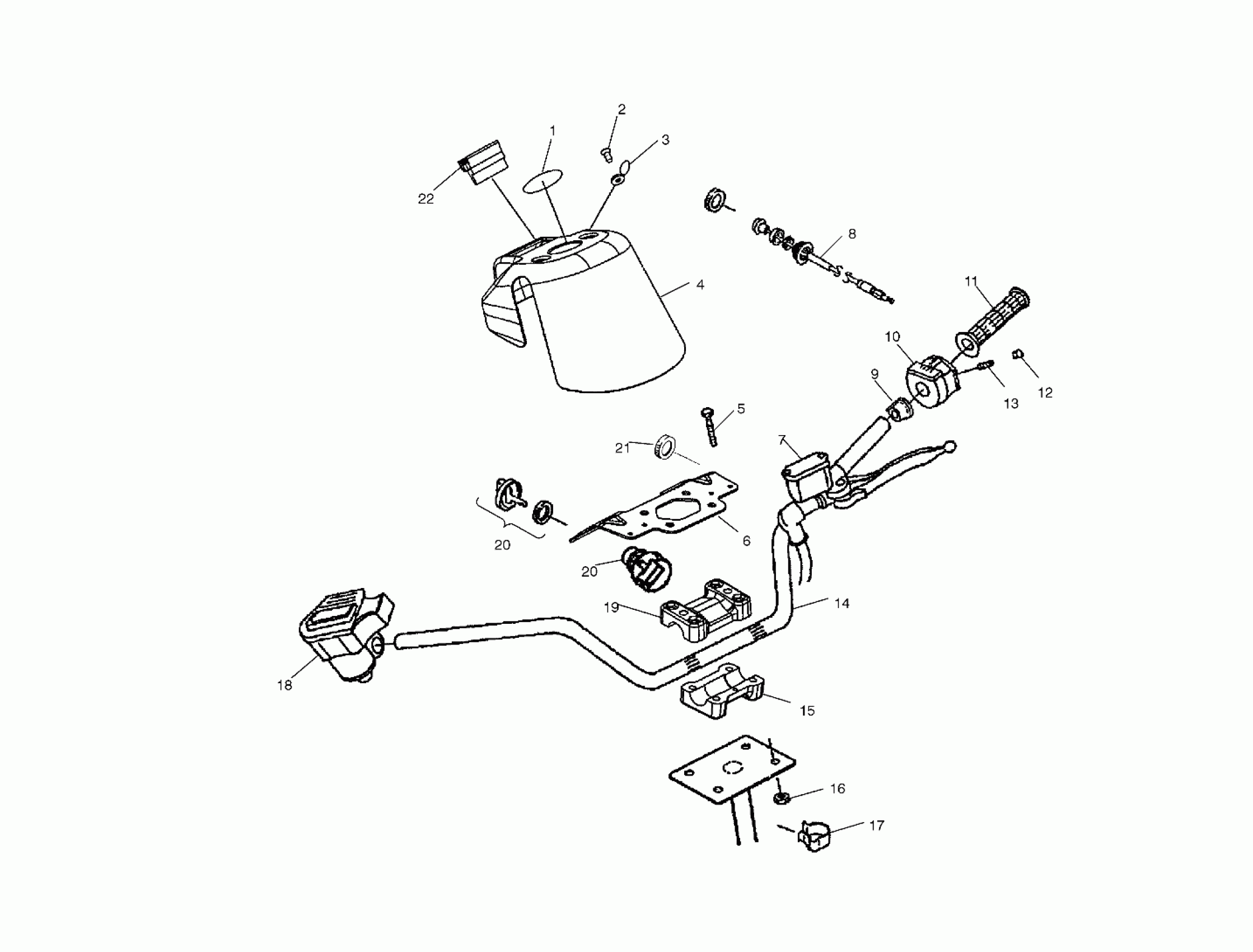

Polaris TRAIL BOSS 330 - A03CA32AA HANDLEBAR - A03CA32AA (4978627862B08) Diagram

#

Description
Price

1

LOGO-POLARIS STAR

7078465

$11.32

2

SCREW

7512024

$4.79

3

Cover, Screw, Hinged

5432420

Unavailable

4

Panel, Instrument

5434643-070

Unavailable

5

SCREW

7515189

Unavailable

6

Bracket, Instrument Panel

5246406-067

$4.37

7

ASM., MASTER CYLINDER [SEE CONTROL - MASTER CYLINDER/BRAKE LINE PG. B5 FOR DETAILS]

-------

Unavailable

8

Cable, Choke

7081007

$42.46

9

Spacer, Switch, LH

5433903

Unavailable

10

Switch, Handlebar, Hi/Lo/Rev. Override (If built before 2/03/03)

4010422

$123.54

10

Switch, Handlebar, Hi/Lo/Off (If built after 2/03/03)

4010592

$38.60

11

Grip, Handlebar

5433834-070

$24.27

12

PLUG, HOLE

5432952

$5.59

13

Screw

7517625

$4.79

14

Tube, Handlebar

5334127-067

Unavailable

15

Block, Handlebar

5631147

Unavailable

16

Nut, Nylok

7542122

$1.49

17

Clip, Cable Retaining

7080631

$6.29

18

ASM., THROTTLE CONTROL [SEE THROTTLE CONTROLS/THROTTLE CABLE PG. B4, REF. 5]

-------

Unavailable

19

Block, Handlebar, Pegged

5631146

$10.71

20

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

20

KEY SWITCH KEY COVER

5433534

$12.35

20

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

20

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

20

Switch, Ignition

4010390

Unavailable

20

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

20

KEY SWITCH KEY COVER

5433534

$12.35

20

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

20

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

20

Switch, Ignition

4010390

Unavailable

21

Nut, Choke Slide

7080922

$3.19

22

Panel Indicator Light

4010459

Unavailable

22

Bulb, Indicator

4010416

$9.59
