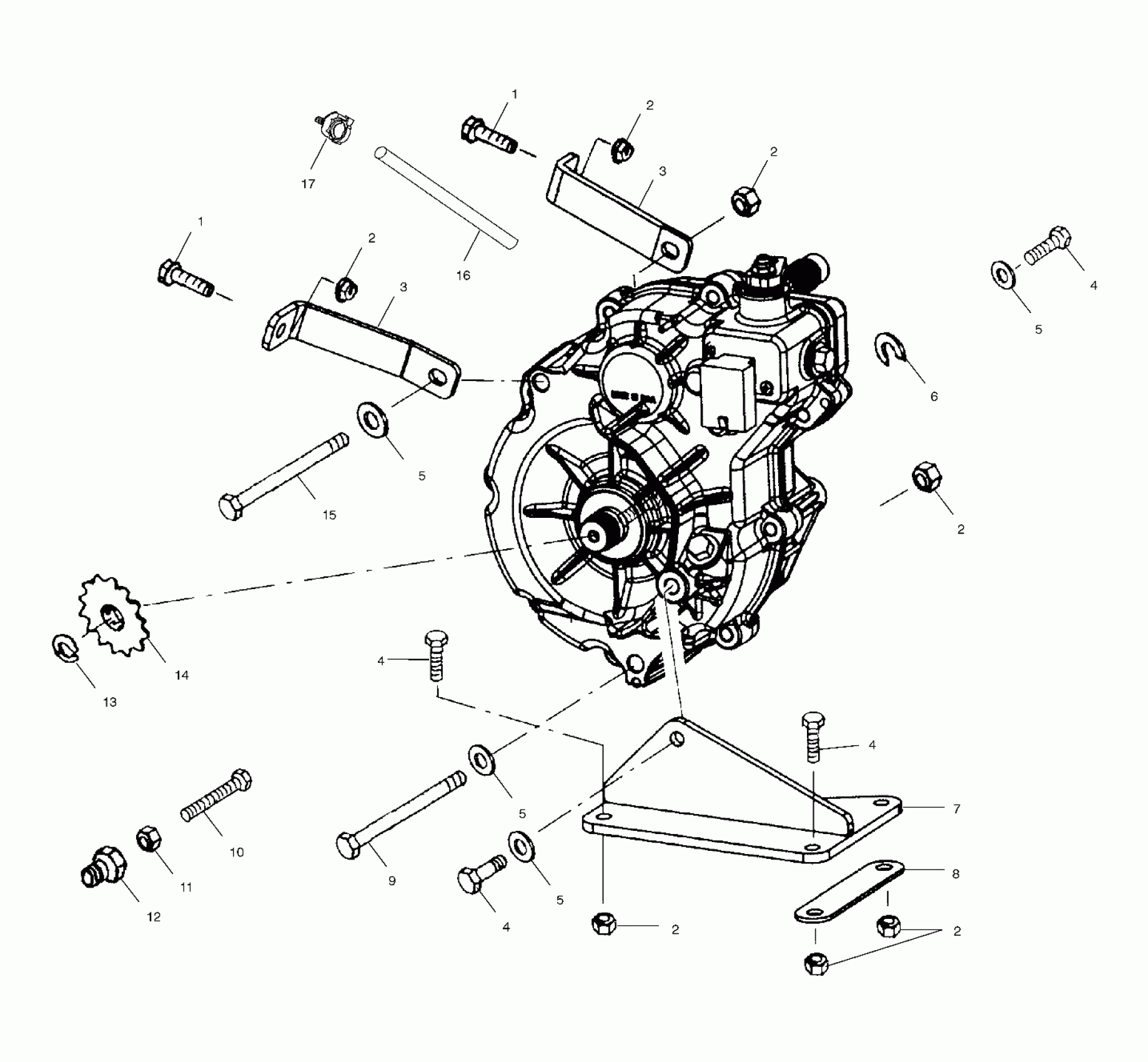

Polaris TRAIL BOSS 330 - A03CA32AA GEARCASE MOUNTING - A03CA32AA (4978627862C02) Diagram

#

Description
Price

1

SCREW

7517632

$5.56

1

SCREW

7517632

$5.56

2

Nut, Flange

7547089

$4.76

2

Nut, Flange

7547089

$4.76

2

Nut, Flange

7547089

$4.76

2

Nut, Flange

7547089

$4.76

2

Nut, Flange

7547089

$4.76

2

Nut, Flange

7547089

$4.76

3

Bracket, Transmission Mount

5242456-067

$24.99

3

Bracket, Transmission Mount

5242456-067

$24.99

4

Screw

7512492

$1.19

4

Screw

7512492

$1.19

4

Screw

7512492

$1.19

4

Screw

7512492

$1.19

5

Washer, Flat

7555806

$0.79

5

Washer, Flat

7555806

$0.79

5

Washer, Flat

7555806

$0.79

5

Washer, Flat

7555806

$0.79

6

Shim [.020]

5210764

Unavailable

6

Shim [.010]

5211065

Unavailable

6

Shim [.030]

5211517

Unavailable

7

Mount, Transmission

1012886-067

$31.75

8

Spacer

5243296-067

$4.06

9

SCREW

7517646

$7.14

10

Screw

7517631

$5.56

11

Nut

7542440

$1.59

12

PLUG, DRAIN [SEE GEARCASE PG. C4, REF. 36]

----

Unavailable

13

RING, RETAINING

7710434

$3.97

14

Sprocket, 11T

3221043

$40.46

15

Screw

7517640

$10.32

16

Line, Fuel

8450003-1525

Unavailable

17

CLIP, ROUTING

7670116

$5.56
