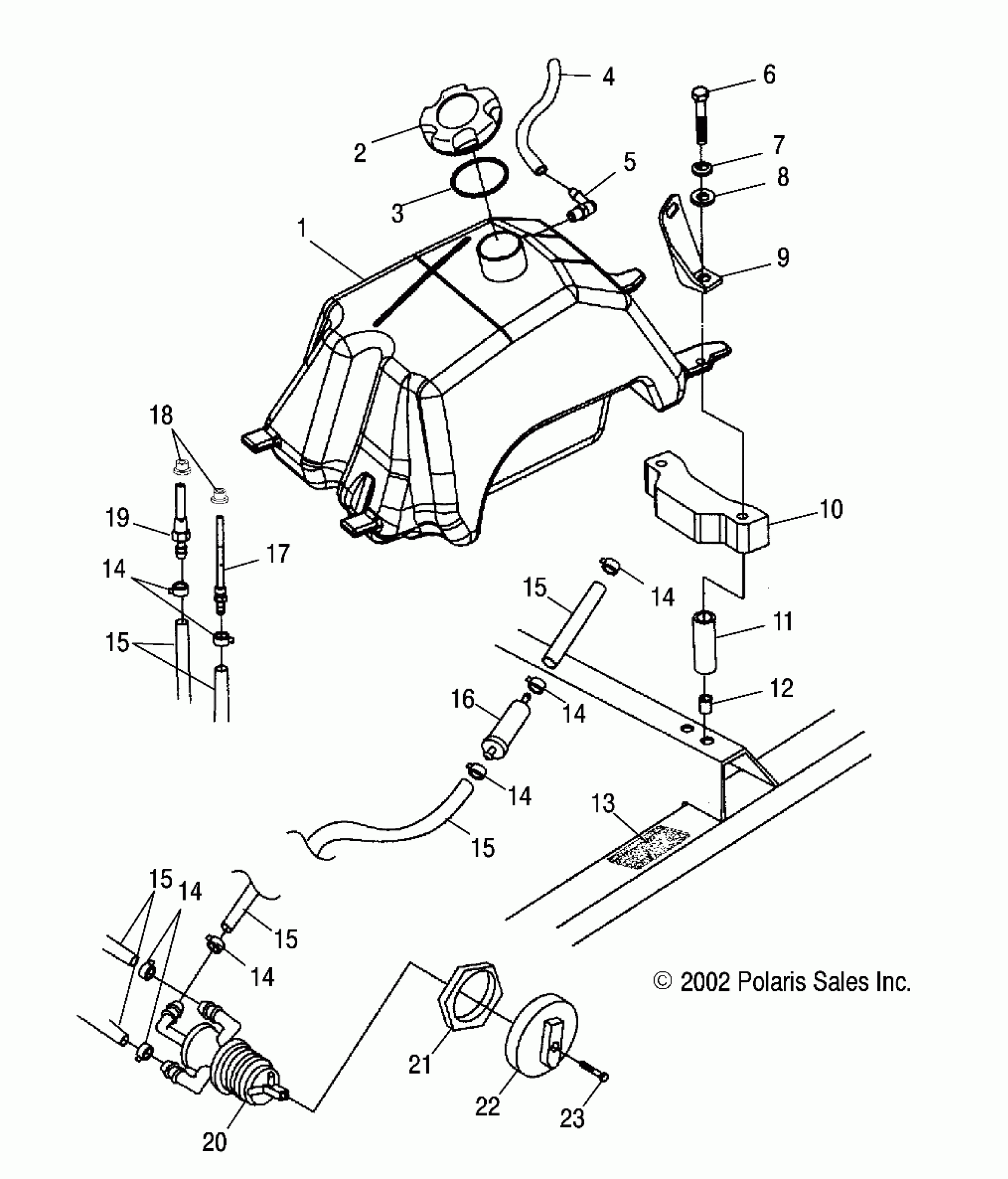

Polaris TRAIL BOSS 330 - A03CA32AA FUEL TANK - A03CA32AA (4978627862A12) Diagram

#

Description
Price

1

Tank, Fuel

2520183

Unavailable

2

Cap, Gas Tank

5433687

$20.22

3

GASKET

5812123

$5.65

4

Hose, Vent

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Screw

7512249

Unavailable

7

WASHER, SPRING LOCK

7552801

$1.59

8

Washer, Flat

7555859

$1.49

9

Bracket, Cover Mount, Rear, LH

5222154

Unavailable

9

Bracket, Cover Mount, Rear, RH

5222155

Unavailable

10

Seal, Foam

5811951

$32.37

11

Tube

5332457

Unavailable

12

Nutsert

7547069

$3.99

13

Pad, Fuel Tank Bracket

5810317

Unavailable

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

15

Line, Fuel

8450040-600

Unavailable

15

Line, Fuel

8450040-600

Unavailable

15

Line, Fuel

8450040-600

Unavailable

15

Line, Fuel

8450040-600

Unavailable

15

Line, Fuel

8450040-600

Unavailable

16

Filter, Fuel

2530009

$5.65

17

Fitting, Fuel Outlet

7052146

$27.99

18

Grommet

7052362

$9.99

19

Fitting, Fuel Outlet, Reserve, 90 Degree

7052149

$23.99

20

Valve, 3-Way

7052161

$39.99

21

Nut, Fuel Valve

5432733

Unavailable

22

Knob, Fuel Valve

5432559

$10.39

23

Screw

7517505

$1.59
