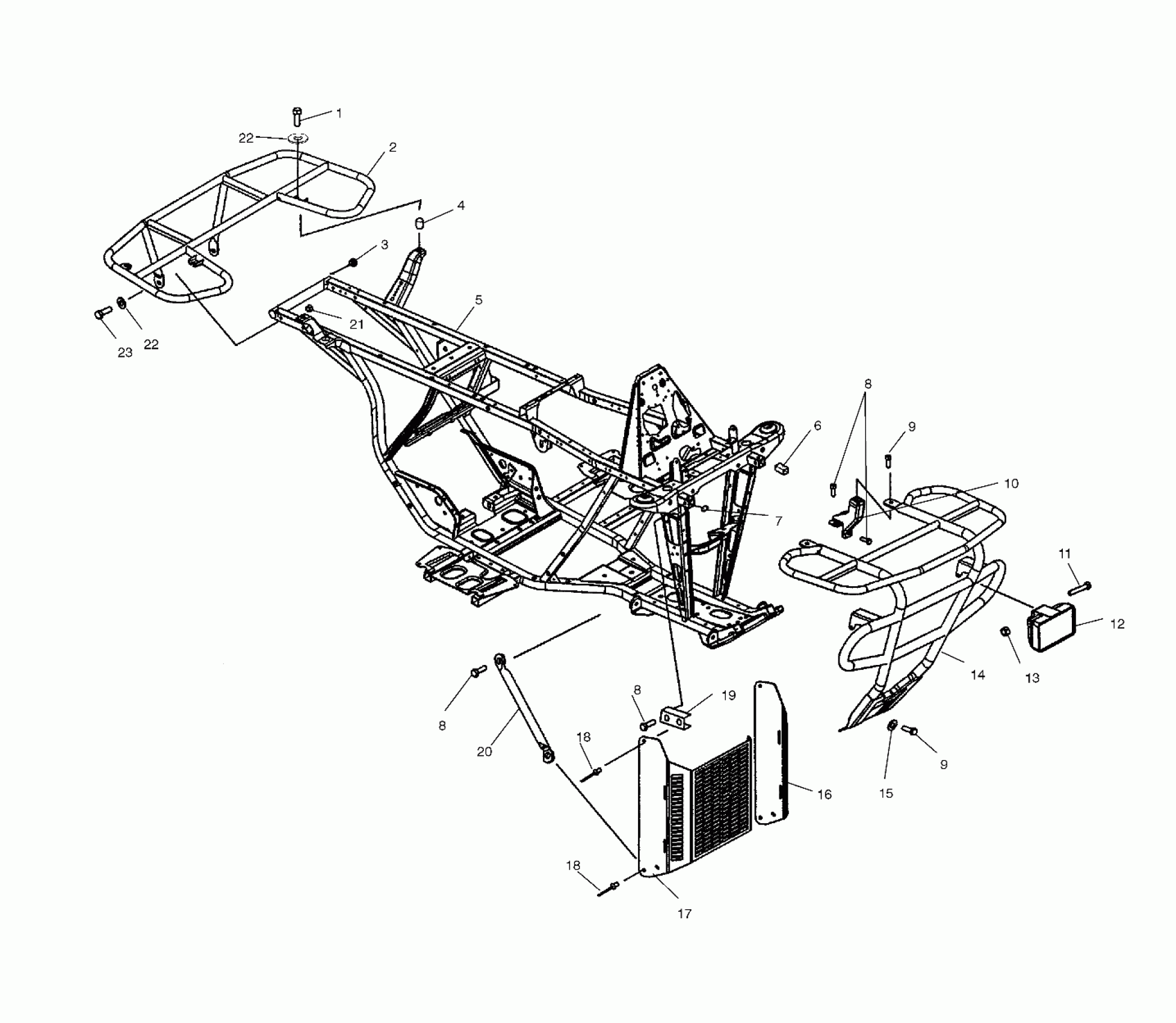

Polaris TRAIL BOSS 330 - A03CA32AA BUMPER and RACK MOUNTING - A03CA32AA (4978627862A06) Diagram

#

Description
Price

1

Bolt

7517977

Unavailable

2

Rack, Rear (AA)

1014039-067

$215.08

2

Rack, Rear (AB)

1014039-385

$215.08

3

Plug, End Cap

5432831

$5.59

4

Spacer

5334092

$10.99

5

Frame, Main (If built before 12/01/02)

1014105-067

Unavailable

5

Frame, Main (If built after 12/01/02)

1014347-067

$820.65

6

PLUG, FRAME

5810467

Unavailable

7

Nutsert

7547069

$3.99

8

SCREW

7512232

$1.49

8

SCREW

7512232

$1.49

8

SCREW

7512232

$1.49

9

SCREW

7515399

$1.49

9

SCREW

7515399

$1.49

10

Support Rack, Front, LH

1013744-067

$119.99

10

Support Rack, Front, RH

1013746-067

$94.99

11

SCREW

7515189

Unavailable

12

Bulb, 30W

4030061

Unavailable

12

Asm., Headlight

2410285

Unavailable

13

Nut, Nylok

7542122

$1.49

14

Bumper, Front (AB)

1014040-385

Unavailable

14

Bumper, Front (AA)

1014040-067

Unavailable

15

WASHER

7555827

$3.99

16

Shield, Radiator Side, LH

5245342-067

Unavailable

17

Shield, Radiator Side, RH

5245343-067

Unavailable

18

Rivet

7661121

Unavailable

18

Rivet

7661121

Unavailable

19

Bracket, Shield

5245357-067

$10.71

20

Support, Grill

5334231-067

$12.65

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

22

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

23

Screw

7512329

$3.99
