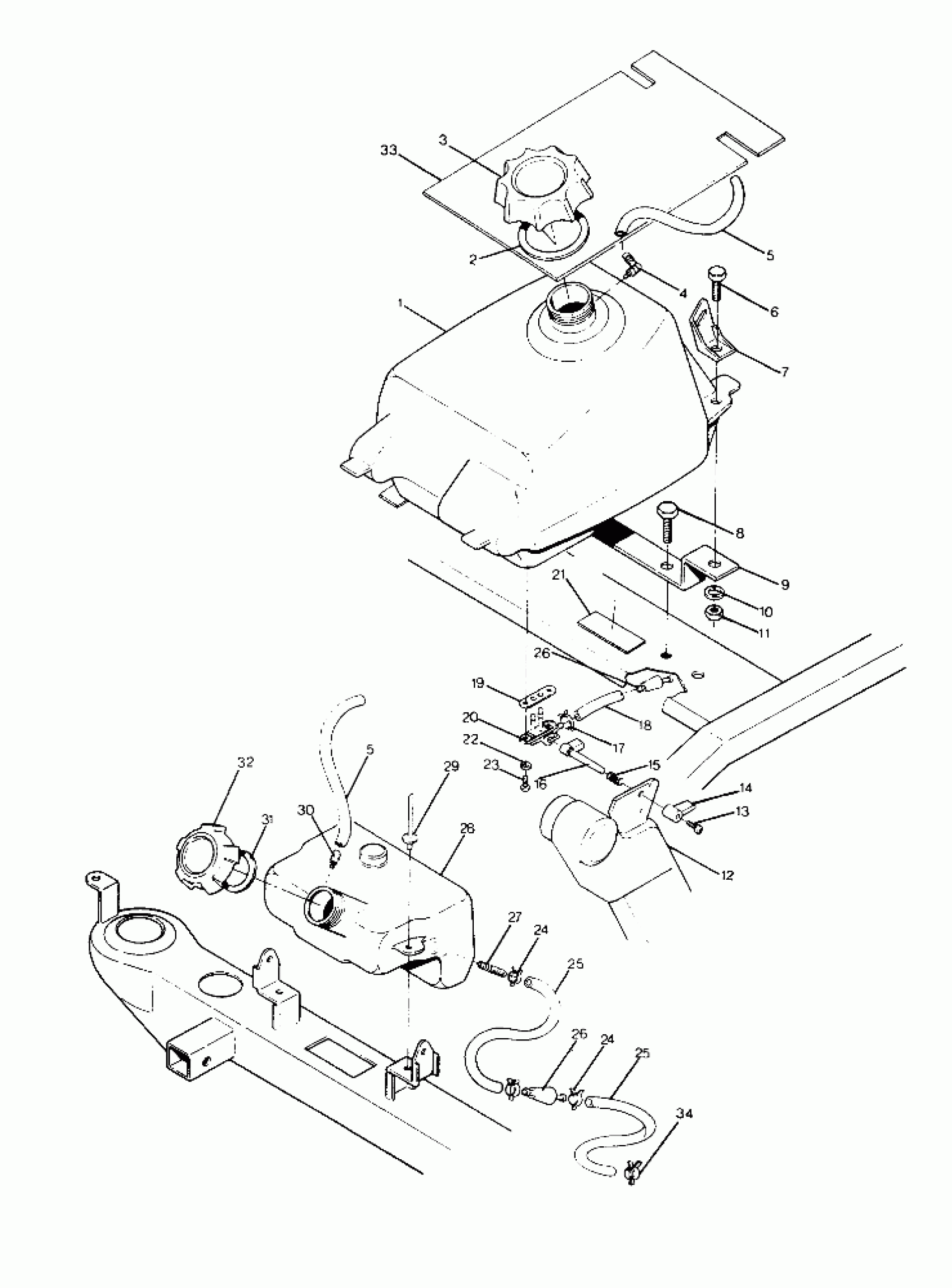

Polaris TRAIL BOSS 2X4 - W917527 FUEL TANK ASSEMBLY 250 2X4 - Update (4919781978009A) Diagram

#

Description
Price

1

TANK,FUEL Substituted by 2511323

5430968

Unavailable

2

GASKET-GAS CAP

5810144

$5.59

3

CAP, GAS, (BLACK)

5430725

$24.27

4

Vent, Tank

5431053

$19.99

5

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

5

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

6

SCREW(10)

7512310

$2.39

7

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

7

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

8

SCREW(10)

7512208

$3.99

9

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

12

DUCT,INLET DOWN TUBE

5431006

$82.39

13

SCREW(10)

7511840

Unavailable

14

Lever, Fuel

5431021

$4.79

15

SPRING,LEVER,COMPRESS.

7041209

$7.19

16

EXT.,FUEL LEVER ("J" Model Only)

5431391

$7.19

16

LEVER,EXT. FUEL

5431020

Unavailable

17

CLAMP-HOSE,(10)

7080236

$1.59

18

LINE,FUEL,(6 FT.)

5521204

Unavailable

19

GASKET, FUEL VALVE

5810308

Unavailable

20

VALVE, FUEL Substituted by 7051002

7052046

Unavailable

20

VALVE, FUEL ("J" Model Only)

7051002

Unavailable

21

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

22

WASHER(10)

7552605

$5.27

23

BOLT, BLACK(10)

7512282

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

25

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

26

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

26

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

27

FITTING - OUTLET(10)

7052023

$24.99

28

TANK,OIL

5430969

Unavailable

29

RIVET(50)

7621457

$1.49

30

VENT-TANK

5430579

Unavailable

31

GASKET-OIL CAP

5810141

$2.39

32

CAP,OIL TANK

5430779

$14.56

33

PAD, SILENCER

5810423

Unavailable

34

CLAMP, HOSE Substituted by 7080684

7080374

Unavailable
