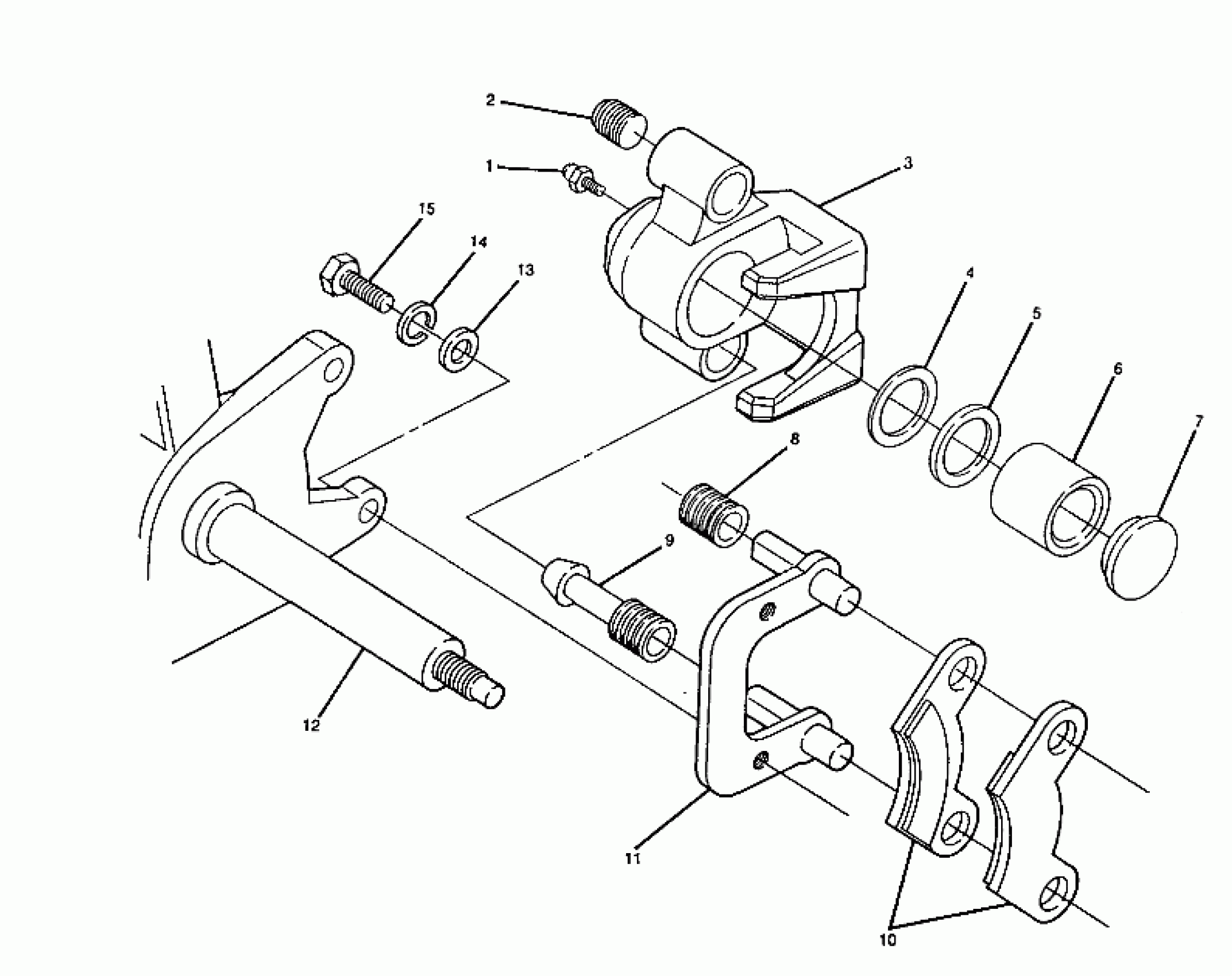

Polaris TRAIL BOSS 2X4 - W917527 FRONT BRAKE ASSEMBLY 250 2X4 - Update (4919781978016A) Diagram

#

Description
Price

-

CALIPER ASM,LH FR.BRAKE Substituted by 1910074 (Complete)

1910066

Unavailable

1

SCREW,BLEEDER

7080352

$3.19

1

CALIPER ASM,LH BRAKE Substituted by 1910173 (Complete) ("J" Model Only)

1910074

Unavailable

1

CALIPER ASM,RH BRAKE Substituted by 1910174 (Complete) ('J' Model Only)

1910075

Unavailable

1

CALIPER ASM,RH FR.BRAKE Substituted by 1910075 (Complete)

1910067

Unavailable

2

SETSCREW,SKT.HD.(10)

7515489

$5.59

3

KIT,SEALS,PISTON&INSUL. Substituted by 1930665 (Incl. 4-7)

1930641

Unavailable

3

CALIPER,BRAKE Substituted by 5131261

5130657

Unavailable

3

CALIPER,BRAKE,RH Substituted by 5131262

5130659

Unavailable

3

CALIPER,LH BRAKE Substituted by 5131261 ("J" Model Only)

5130791

Unavailable

3

CALIPER,RH.BRAKE Substituted by 5131262 ("J" Model Only)

5130815

Unavailable

4

Square Ring

-------

Unavailable

6

Piston, Caliper

-------

Unavailable

7

KIT-BOOT,FRONT BRAKE

1930642

$11.19

7

Insulator, Front Caliper

-------

Unavailable

8

Boot, Pin Seal

-------

Unavailable

9

Boot, Bushing

-------

Unavailable

10

KIT,PAD,F.BRAKE Substituted by 2200465 (Complete set of 4 Pads)

1930643

$47.62

11

MT.ASM, CALIPER

1910057

Unavailable

12

SUPPORT,LH STRUT&SPINDLE Substituted by 5130803

5130655

Unavailable

13

SUPPORT,RH STRUT&SPINDLE Substituted by 5130804

5130656

Unavailable

14

LOCK WASHER(10)

7552901

$1.49

15

SCREW, CAP(10)

7512365

$1.49

15

KIT,SEVEREDUTY BRAKEPAD Substituted by 2200464 ("J" Model Only)

2200418

$31.75
