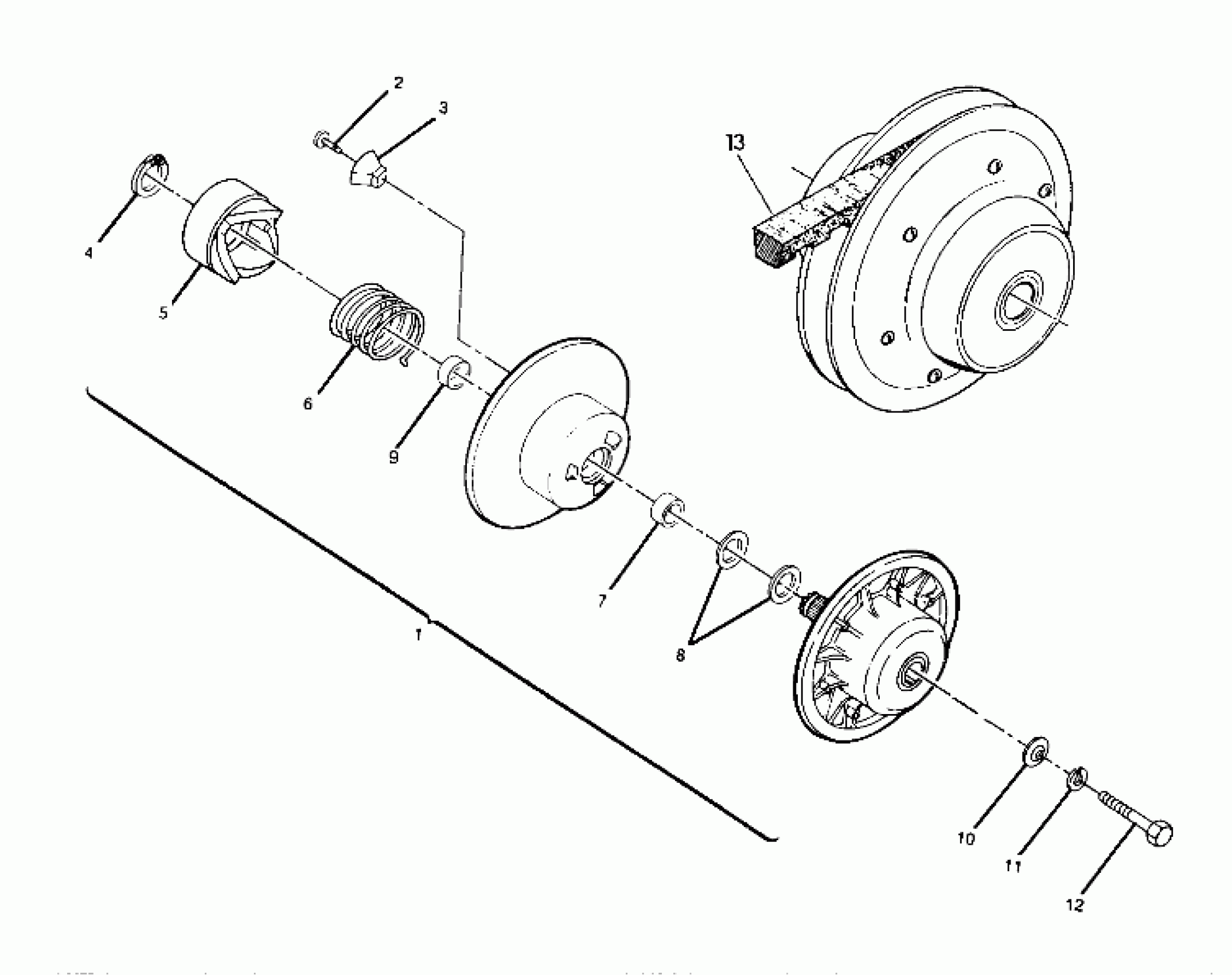

Polaris TRAIL BOSS 2X4 - W917527 DRIVEN CLUTCH ASSEMBLY 250 2X4 - Update (4919781978024A) Diagram

#

Description
Price

1

CLUTCH, DRIVEN Substituted by 1322158

1322138

Unavailable

2

BOLT(10)

7511854

$1.19

3

BUTTON,RAMP

5430766

$6.35

4

RETAINING RING(10)

7714401

$2.62

5

RAMP, STATIONARY

5130738

Unavailable

6

SPRING,CLUTCH,(RED)

7041198

$56.65

7

BUSHING, DRIVEN

3576504

$23.81

8

WASHER(10)

7556804

$0.79

9

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.78

10

WASHER, DOMED(10)

5220646

$2.38

11

LOCK WASHER(10)

7552901

$1.19

12

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.56

13

BELT-DRIVE(5) Substituted by 3211077

3211048

$75.99
