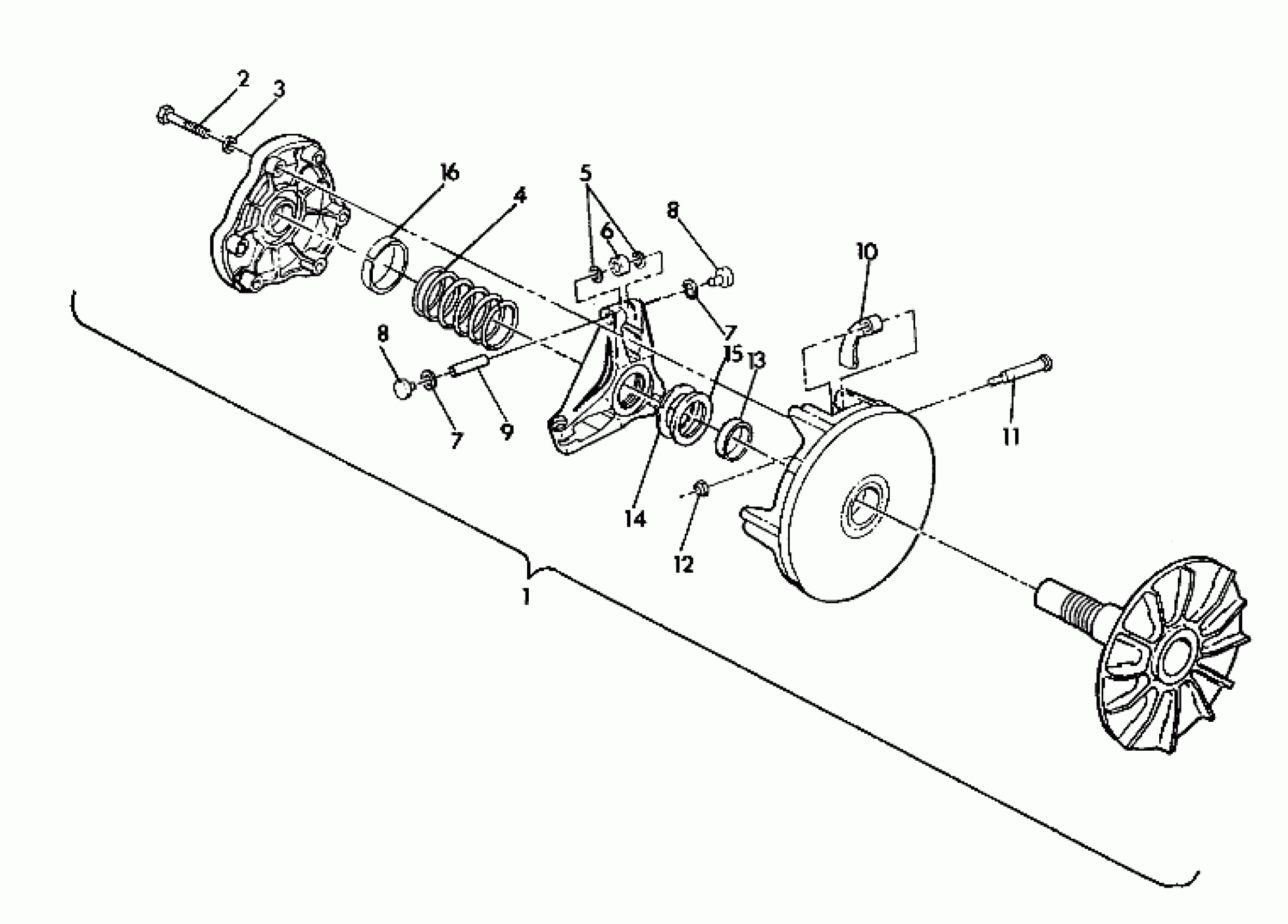

Polaris TRAIL BOSS 2X4 - W917527 DRIVE CLUTCH ASSEMBLY 250 2X4 - Update (4919781978023A) Diagram

Description

Price

CLUTCH, BASIC Substituted by 1321633 (Less 4, 10)

1321497

$697.13

BOLT,(10)

7512265

$3.99

LOCK WASHER(10)

7552801

$1.59

SPRING,CLUTCH

7041157

$47.99

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING

1321457

$40.46

SEAL, O RING,(10)

5410374

$1.83

SEAL, O RING,(10)

5410374

$1.83

BUTTON, GUIDE(10)

5430768

$10.39

BUTTON, GUIDE(10)

5430768

$10.39

PIN, SPIDER Substituted by 5020795

5020436

$23.81

WT.,CLUTCH,16(6) (16)

5630279

$31.99

BOLT,SPECIAL(10)

7512266

$3.19

NUT FLEX LOC(10)

7541906

$3.19

BUSHING, DRIVEN

3576504

$23.99

SPACER(10)

5210752

$1.59

SPACER(10)

5210754

$3.19

BEARING, COVER,(10)

3576510

$9.59
