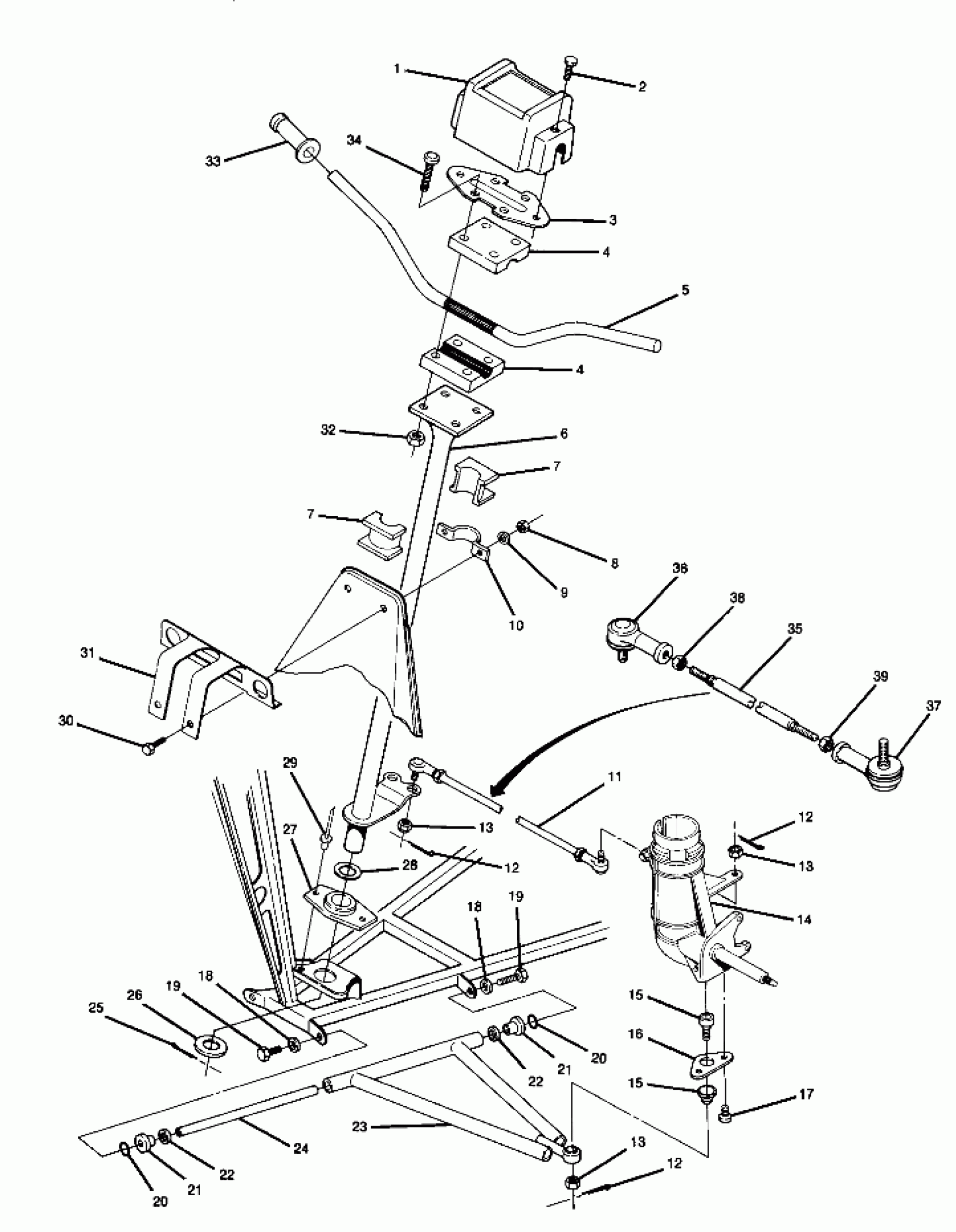

Polaris TRAIL BOSS 250 - X888528 Steering Assembly (4914781478011A) Diagram

#

Description
Price

1

PAD, HANDLEBAR

5810379

$40.46

2

BOLT(10) Substituted by 7515197

7512286

Unavailable

3

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

5

TUBE, HANDLEBAR Substituted by 5224316-067

5224361

Unavailable

6

POST, STEERING Substituted by 1843028-067

1843028

Unavailable

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

Unavailable

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

BUSHING,UPPER STRG. Substituted by 5220887-067

5220887

Unavailable

11

TIE ROD ASM. Substituted by 1822307

1822070

Unavailable

12

PIN COTTER(10)

7661203

$1.49

12

PIN COTTER(10)

7661203

$1.49

12

PIN COTTER(10)

7661203

$1.49

13

NUT, CASTLE(10)

7546904

$4.79

13

NUT, CASTLE(10)

7546904

$4.79

13

NUT, CASTLE(10)

7546904

$4.79

14

SUPPORT,LH STRUT&SPINDLE Substituted by 5130803

5130655

Unavailable

14

SUPPORT,RH STRUT&SPINDLE Substituted by 5130804

5130656

Unavailable

15

BALL JOINT Substituted by 7080673

7080364

Unavailable

15

BALL JOINT Substituted by 7080673

7080364

Unavailable

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

20

O RING

5410458

Unavailable

20

O RING

5410458

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

22

WASHER(10)

7555774

Unavailable

22

WASHER(10)

7555774

Unavailable

23

A-FRAME, LH Substituted by 1580028-067

1580028

Unavailable

23

A-FRAME, RH Substituted by 1580029-067

1580029

Unavailable

24

SHAFT,'A' ARM

5020477

Unavailable

25

PIN, COTTER(10)

7661404

$4.79

26

BUSHING(10)

7555781

Unavailable

27

BUSHING,STRG.,LOWER Substituted by 5431570

5430895

Unavailable

28

BUSHING(10)

7556401

$4.99

29

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

30

BOLT(10)

7512315

$4.79

31

BRKT,IGN.PANEL Substituted by 5220965-067

5220965

Unavailable

32

NUT-LOCK(10)

7542122

$1.49

33

GRIP, HANDLEBAR

5431025

Unavailable

34

BOLT(10)

7512272

Unavailable

35

TIE ROD

5020478

$48.56

36

ROD END, RH Substituted by 7060172

7060138

$56.65

37

ROD END

7060147

$56.65

38

NUT, RH, 10 MM.(10)

7546901

$2.39

39

NUT, LH, 10 MM.(10)

7546902

Unavailable
