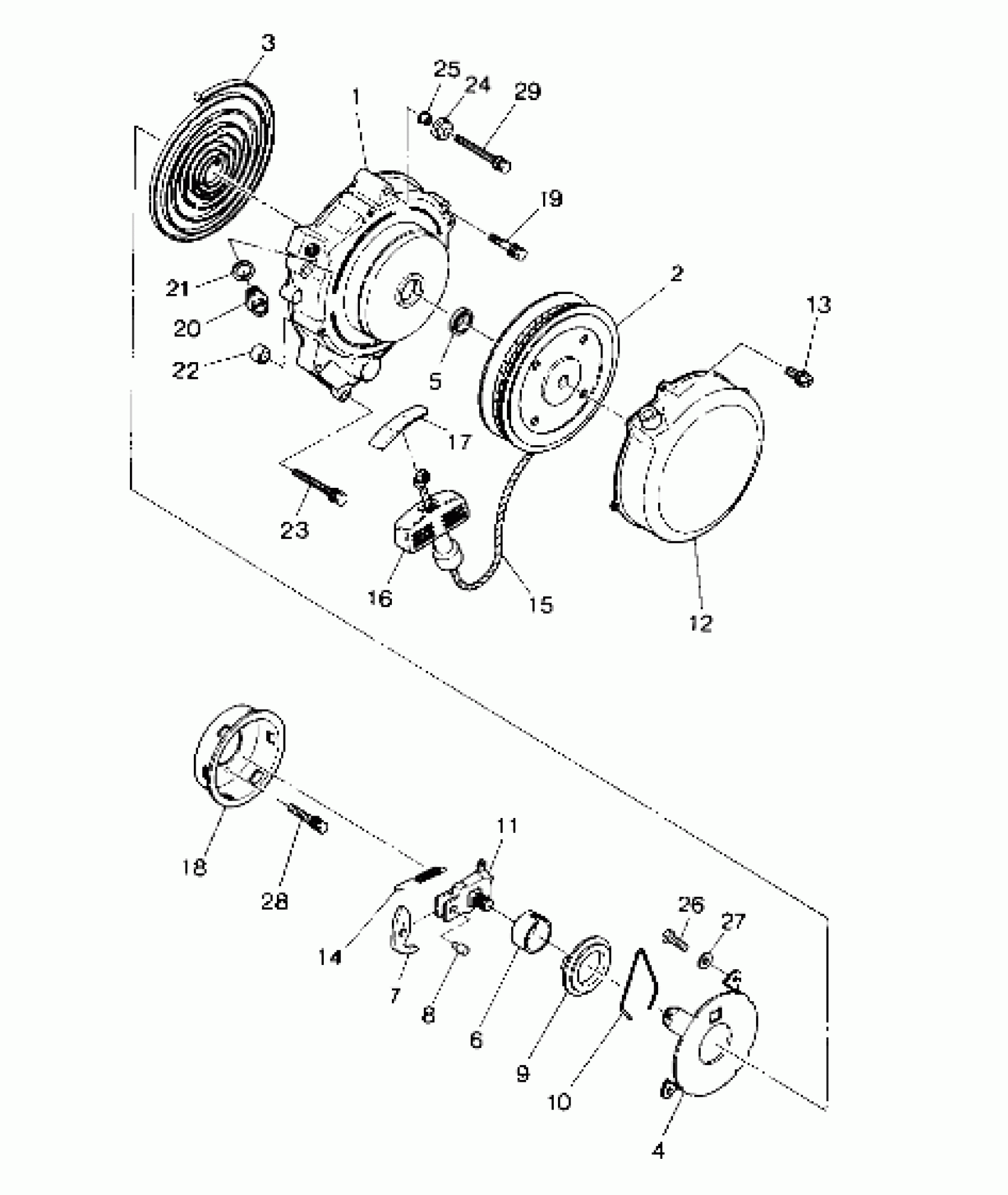

Polaris TRAIL BOSS 250 - X888528 Recoil Starter Assembly (4914781478037A) Diagram

#

Description
Price

-

STARTER,RECOIL,COMPL. (Incl. 1-17)

3083924

Unavailable

1

CASE,STARTER,B UNIT

3083911

$271.99

2

REEL, COMPL.

3083814

$97.13

3

Spring, Spiral

3083815

$45.59

4

Case, Spring

3083925

Unavailable

5

Grommet

3083817

Unavailable

6

Hook, Spring

3083818

$39.99

7

Ratchet

3083819

Unavailable

8

Pin, Ratchet

3083820

Unavailable

9

GUIDE,RATCHET

3083821

Unavailable

10

SPRING,FRICTION

3083912

$25.59

11

GUIDE, COMPL.

3083913

Unavailable

12

CASE,STARTER,COMPL.

3083914

Unavailable

13

Bolt, Flange

3083826

Unavailable

14

Spring, Return

3083827

$11.59

15

ROPE,100 FT,NYL.STARTER

2870621

$34.99

16

Knob, Starter

3083659

Unavailable

17

Cap, Knob

3083660

Unavailable

18

Pulley, Starting

3083915

Unavailable

19

BOLT&WASHER ASM.

3082228

Unavailable

20

PLUG Substituted by 3086749

3083453

Unavailable

21

GASKET

3082956

$4.84

22

BUSHING, STARTER

3083669

Unavailable

23

BOLT&WASHER

3083729

$3.49

24

MOUNTING,RUBBER

3083731

$4.95

25

COLLAR

3083732

Unavailable

26

SCREW, BINDE

3083916

Unavailable

27

WASHER, SPRING(10)

3083917

Unavailable

28

BOLT&WASHER ASM. Substituted by 3081665

3083792

$3.17

29

BOLT & WASHER ASM.

3083926

Unavailable
