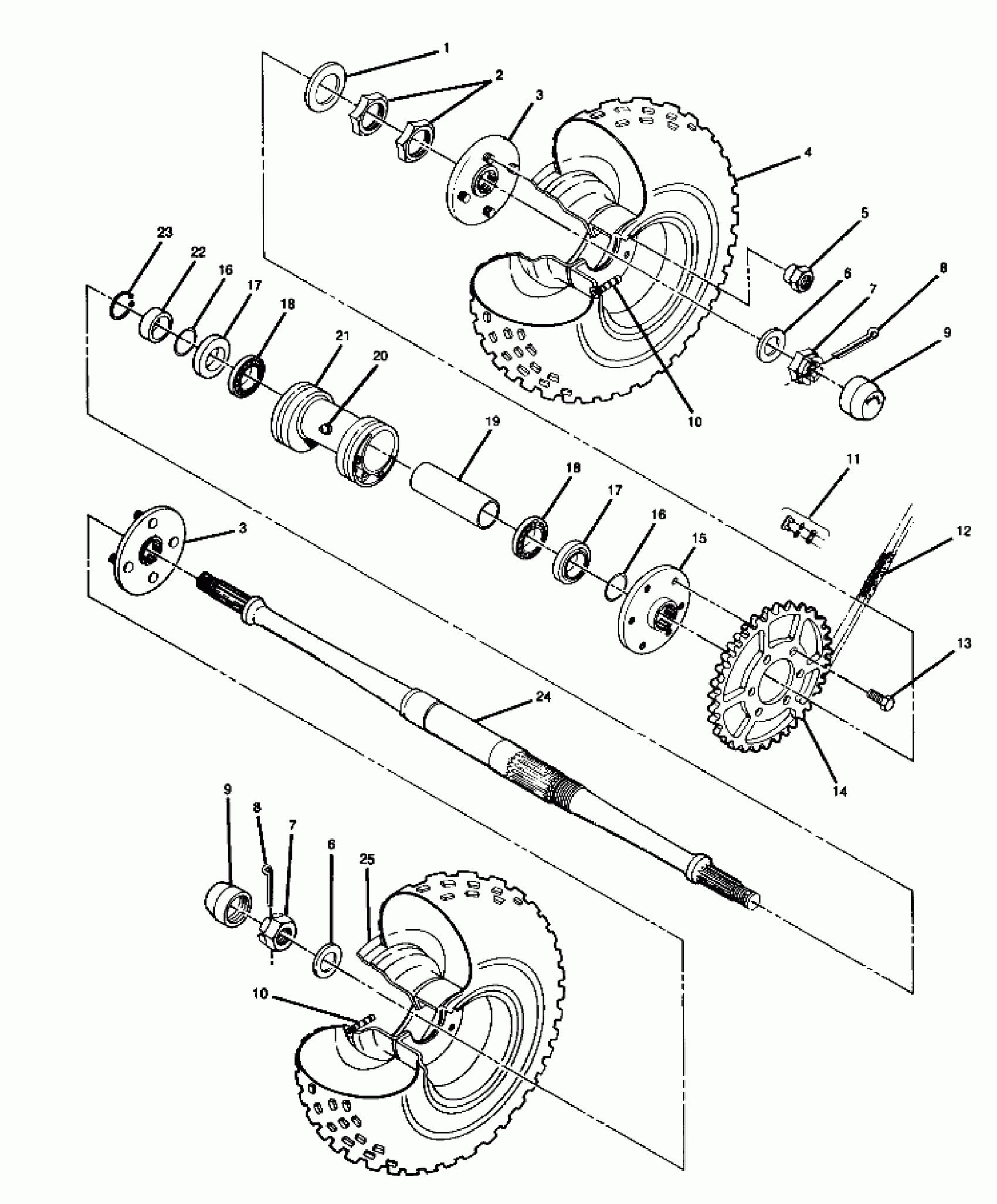

Polaris TRAIL BOSS 250 - X888528 Rear Wheel Drive Assembly (4914781478017A) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

$39.59

3

HUB, REAR Substituted by 1520102-067

1520102

Unavailable

3

HUB, REAR Substituted by 1520102-067

1520102

Unavailable

4

TIRE,REAR

5410465

Unavailable

5

NUT, WHEEL(10)

7542714

$1.59

6

WASHER(10)

7555745

$7.19

6

WASHER(10)

7555745

$7.19

7

NUT, CASTLE(10)

7543005

Unavailable

7

NUT, CASTLE(10)

7543005

Unavailable

8

PIN, COTTER(10)

7661404

$4.79

8

PIN, COTTER(10)

7661404

$4.79

9

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

9

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

10

VALVE-RIM

1525017

$5.59

10

VALVE-RIM

1525017

$5.59

11

CONNECTOR LINK

3225024

$19.99

12

CHAIN,DRIVE, 88P Substituted by 3224056-088 (Includes Connector)

3224042

Unavailable

13

BOLT(10)

7515488

Unavailable

14

SPROCKET, 42T Substituted by 3222070

3223009

Unavailable

15

HUB,SPROCKET WELD Substituted by 1520170

1011559

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

17

SEAL, REAR AXLE

3610013

$19.99

17

SEAL, REAR AXLE

3610013

$19.99

18

Bearing, Ball

3515501

$27.99

18

Bearing, Ball

3515501

$27.99

19

TUBE,BEARING SPACER

5010204

Unavailable

20

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

21

HOUSING, AXLE

5130663

Unavailable

22

SPACER,BEARING

5010206

$35.99

23

RING, SNAP(10)

7710405

$4.79

24

AXLE, REAR

5020469

Unavailable

25

RIM,REAR,PRIMED Substituted by 1520114 (Primed)

1520128

Unavailable
