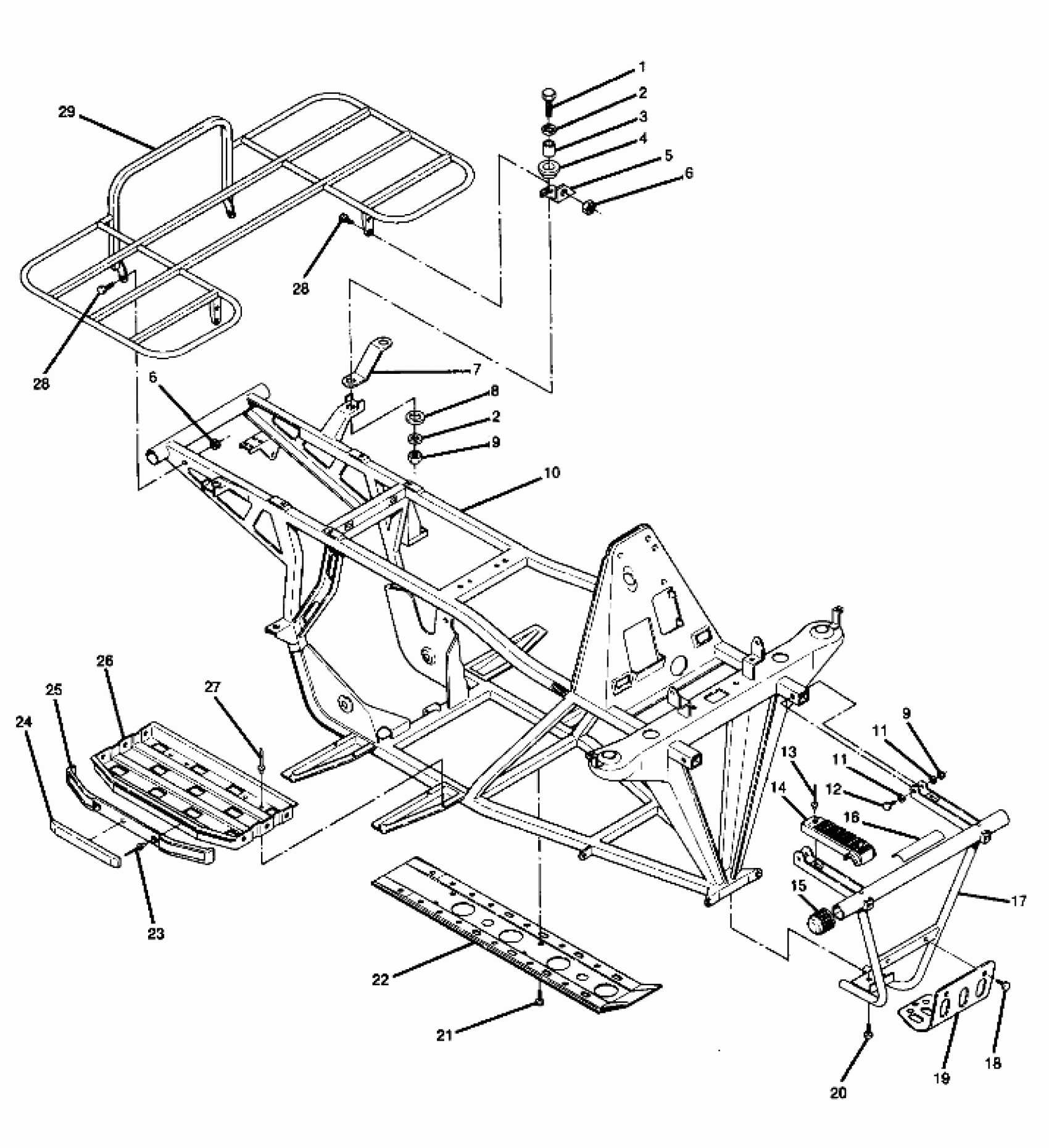

Polaris TRAIL BOSS 250 - X888528 Frame Assembly with Racks (4914781478003A) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5220899-067

5220899

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5220901-067

5220901

Unavailable

6

NUT, NYLOK(10) (Nylok)

7542327

$4.79

6

NUT, NYLOK(10) (Nylok)

7542327

$4.79

7

SUPPORT,R.FENDER Substituted by 5220902-067

5220902

$48.40

8

WASHER,RUBBER

5410436

$1.59

9

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

10

FRAME, WELD. Substituted by 1040202

1040161

Unavailable

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

BOLT(10)

7512329

$3.99

13

RIVET(50)

7621229

Unavailable

14

COVER,BRKT,BUMPER MT.

5431023

$10.71

15

CAP,BUMPER,FR. Substituted by 5431013-093

5431013

Unavailable

16

DECAL,FR.BUMPER [No Longer Available]

7072534

Unavailable

17

BUMPER, FRONT Substituted by 2670106-067

2670106

Unavailable

18

SCREW(10)

7512208

$3.99

19

SKID-PLATE,FR.BUMPER

5220981

Unavailable

20

SCREW(10)

7512399

$5.59

21

SCREW(10) [No Longer Available]

7512216

Unavailable

22

GUARD, ROCK Substituted by 5220922-067

5220922

Unavailable

23

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

24

REFLECTOR AMBER

2670071

Unavailable

25

RUBRAIL,(FOOTREST) Substituted by 5431484

5431019

Unavailable

26

PAD, FOOT Substituted by 1040189

1040154

$81.75

27

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

28

BOLT(10) Substituted by 7512377

7512394

Unavailable

28

BOLT(10) Substituted by 7512377

7512394

Unavailable

29

RACK, REAR Substituted by 2670110-067

2670110

Unavailable
