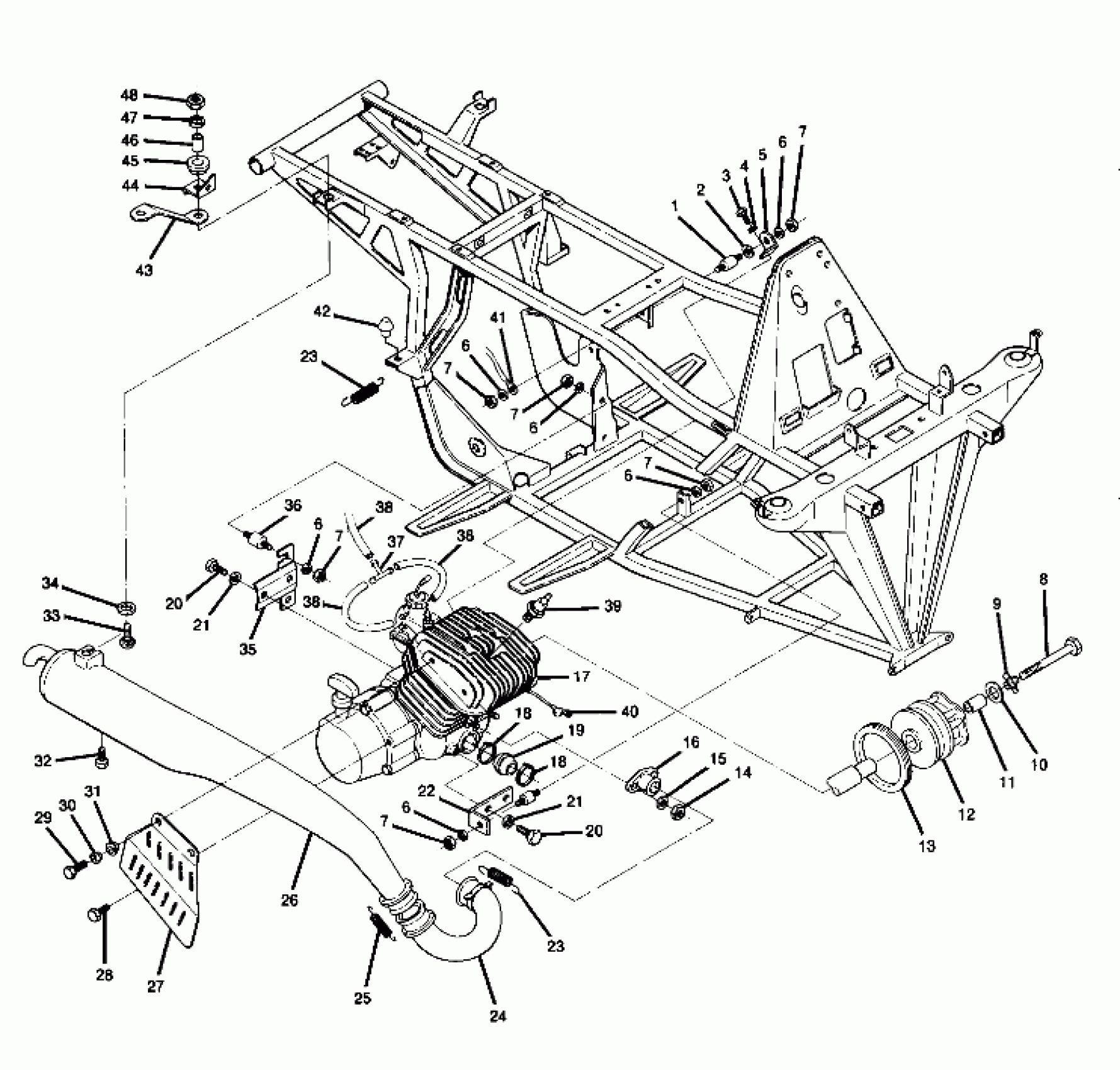

Polaris TRAIL BOSS 250 - X888528 Engine and Muffler Mounting (4914781478005A) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

$40.46

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

BOLT(10)

7515321

Unavailable

4

LOCK WASHER(10)

7552901

$1.19

5

MOUNT,ENG.,TOP Substituted by 5220471-067

5220471

Unavailable

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

8

BOLT(10)

7512566

$33.24

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

11

BUSHING-.437 X.770 X.50

5430261

$7.14

12

CLUTCH,DRIVE Substituted by 1321496

1321490

$697.13

13

SEAL,ENG./CLUTCH

5410411

Unavailable

14

NUT(10)

3080285

Unavailable

15

WASHER LOCK ,(10)

3080530

$3.17

16

MANIFOLD WELD. [No Longer Available]

1260534

Unavailable

17

ENG,EC25-04,ELEC.START [No Longer Available]

1211455

Unavailable

18

CABLE, TIE

7080346

Unavailable

18

CABLE, TIE

7080346

Unavailable

19

BOOT,CLUTCH INTAKE

5410421

$11.32

20

SCREW(10)

7512490

$3.97

20

SCREW(10)

7512490

$3.97

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

22

PLATE,FR.MTR.MT. Substituted by 5220881-067

5220881

Unavailable

23

SPRING-EXHAUST(10)

7042029

$5.65

23

SPRING-EXHAUST(10)

7042029

$5.65

24

HEADPIPE WELD. Substituted by 1260540-029

1260540

Unavailable

25

SPRING, EXHAUST(10)

7042031

$6.46

26

MUFFLER/ARRESTER WELD. Substituted by 1260535-029

1260535

Unavailable

27

SHIELD,MUFFLER,BLACK Substituted by 5220671-067

5222117

$9.35

28

BOLT&WASHER

3083729

Unavailable

29

BOLT&WASHER

3083730

$4.76

30

COLLAR

3083732

Unavailable

31

MOUNTING,RUBBER

3083731

$4.92

32

BOLT(10)

7512666

$2.38

33

BOLT(10)

7515316

$2.38

34

WASHER,RUBBER

5410436

$1.59

35

MOUNT,REAR Substituted by 5241056-067

5220757

Unavailable

36

MOUNT, MOTOR

3110028

Unavailable

37

Fitting, Tee

7052005

Unavailable

38

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

38

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

38

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

39

SPARKPLUG, RN4YC(3)

3070167

Unavailable

40

INSULATOR-CABLE

5410346

$7.73

41

CABLE,GROUND/ENG.

4010067

Unavailable

42

DAMPNER, VIB.

5410467

$8.73

43

SUPPORT,R.FENDER Substituted by 5220902-067

5220902

$48.40

44

BRKT,RH SUPPORT RACK Substituted by 5220901-067

5220901

Unavailable

45

DAMPENER

5410241

$5.22

46

BUSHING-RES. MT.

5010192

$6.35

47

WASHER(10)

7555716

$1.59

48

NUT-5/16-18 NYLOK-Y

7542324

$0.79
