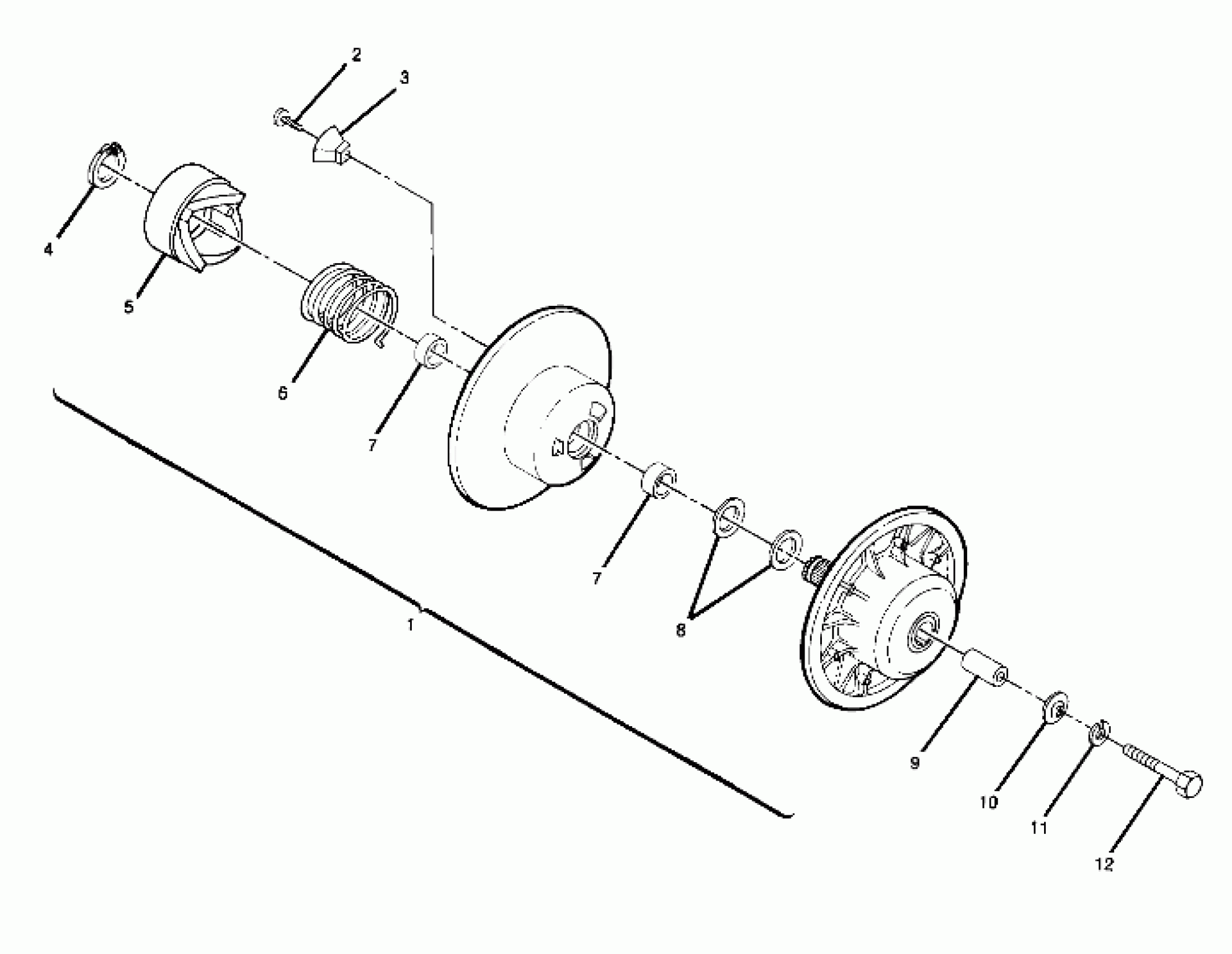

Polaris TRAIL BOSS 250 - X888528 Driven Clutch Assembly (4914781478024A) Diagram

#

Description
Price

1

CLUTCH, DRIVEN

1322127

Unavailable

2

BOLT(10)

7511854

$1.49

3

BUTTON,RAMP

5430766

Unavailable

4

RETAINING RING(10)

7714401

$2.63

5

RAMP,STATIONARY Substituted by 5131447

5630321

$77.21

6

SPRING,CLUTCH,(RED)

7041198

$52.60

7

BUSHING, DRIVEN

3576504

$23.99

7

BUSHING, DRIVEN

3576504

$23.99

8

WASHER(10)

7556804

$1.49

9

SPACER, DRIVEN

5211041

Unavailable

10

WASHER, DOMED(10)

5220646

$2.39

11

DESC NOT_AVAILABLE

755290L

Unavailable

12

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59
