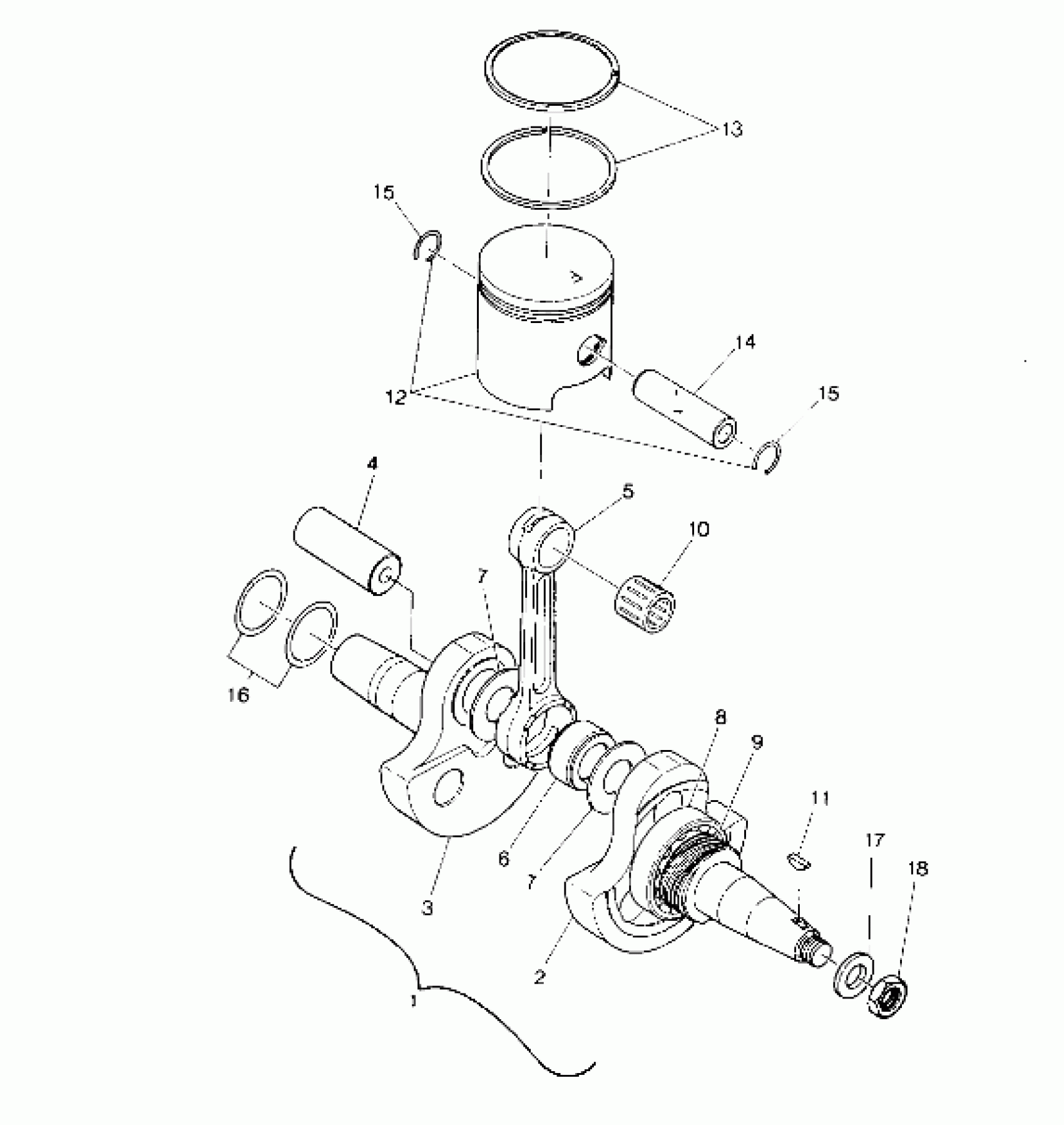

Polaris TRAIL BOSS 250 - X888528 Crankshaft and Piston Assembly (4914781478032A) Diagram

#

Description
Price

1

CRANKSHAFT Substituted by 3084582 (Incl. 2-9)

3083921

Unavailable

3

CRANKSHAFT #2

3083927

Unavailable

4

CRANK PIN PTO

3082796

$36.41

5

ROD,CONNECTING Substituted by 3082790

3083922

Unavailable

6

BEARING,LGE.END

3083803

Unavailable

7

Spacer

3083804

$19.99

7

Spacer

3083804

$19.99

7

Spacer

3083804

$19.99

8

BEARING,BALL

3083805

Unavailable

9

GEAR, CRANKSHAFT Substituted by 3083745

3083414

Unavailable

10

BEARING, SMALL END

3083626

Unavailable

11

KEY WOODRUFF

3081543

$12.94

12

PISTON (Std)

3083901

Unavailable

12

PISTON,.010 O/S (.25 mm Oversize)

3083902

Unavailable

12

PISTON,.020 O/S (.50 mm Oversize)

3083903

Unavailable

13

RING, PISTON (Std)

3083546

Unavailable

13

RING,.020 O/S (.50 mm Over)

3083717

$28.56

13

RING,.010 O/S (.25 mm Over)

3083678

Unavailable

14

Pin, Piston

3083838

$27.99

15

CLIP,PISTON PIN,(10)

3083839

$4.75

15

CLIP,PISTON PIN,(10)

3083839

$4.75

16

SPACER #1

3083629

Unavailable

16

SPACER #3

3083630

Unavailable

17

WASHER Substituted by 3086767

3083904

Unavailable

18

LOCKNUT

3083905

Unavailable
