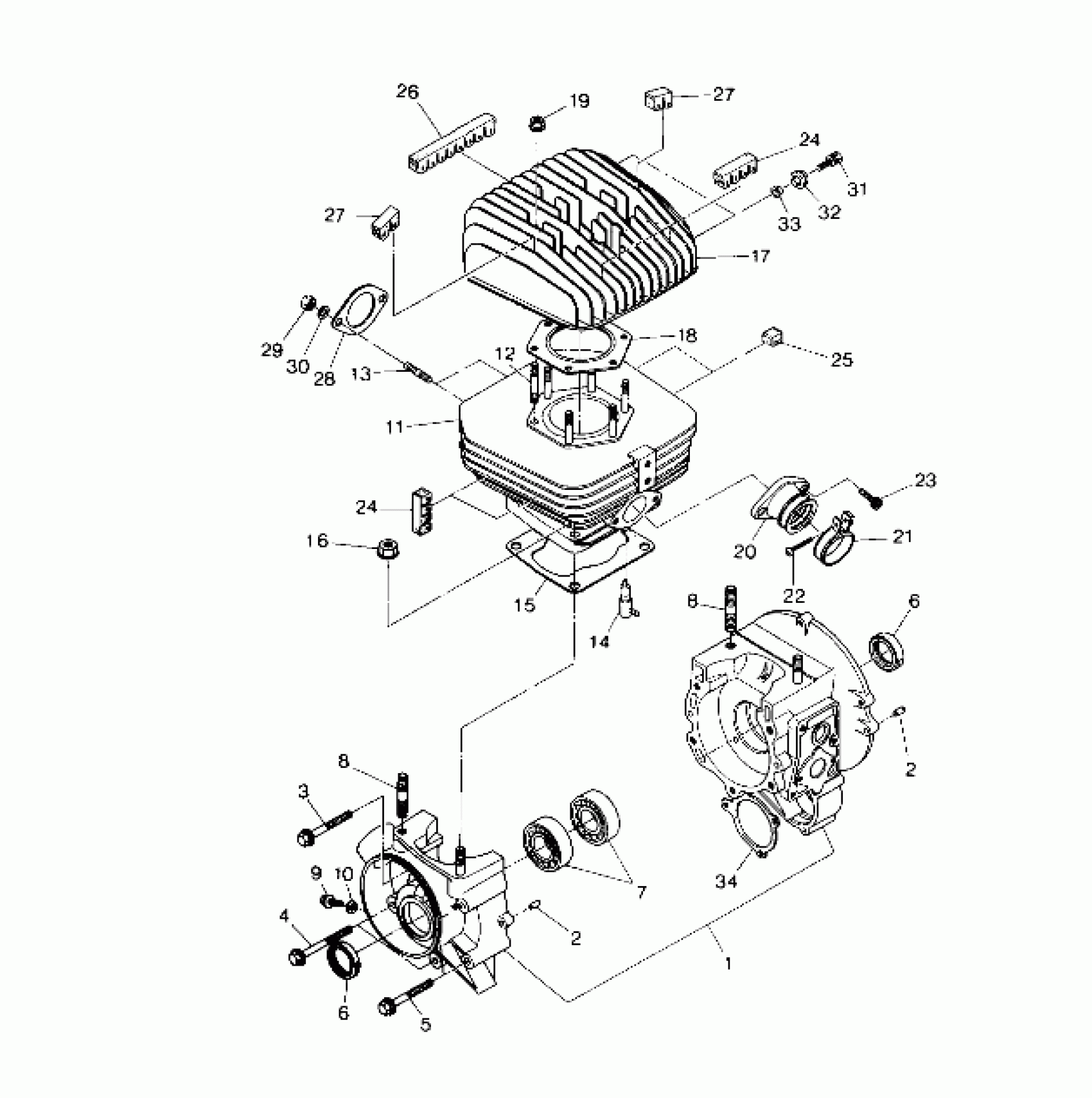

Polaris TRAIL BOSS 250 - X888528 Crankcase and Cylinder Assembly (4914781478031A) Diagram

#

Description
Price

1

CRANKCASE ASM. Substituted by 3084579 (Incl. 2-10)

3083836

Unavailable

2

PIN, DOWEL Substituted by 3086838

3080103

$7.14

2

PIN, DOWEL Substituted by 3086838

3080103

$7.14

3

BOLT AND WASHER ASSY.

3082096

$1.49

4

BOLT&WASHER ASSY.

3083615

Unavailable

5

BOLT W/WASHER

3080739

$6.39

6

SEAL,OIL Substituted by 3082162

3080006

$38.60

6

SEAL,OIL Substituted by 3082162

3080006

$38.60

7

BALL BEARING Substituted by 3083805

3082836

Unavailable

8

STUD Substituted by 3085713

3080746

Unavailable

8

STUD Substituted by 3085713

3080746

Unavailable

9

PLUG, DRAIN

3083767

Unavailable

10

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

11

CYLINDER (Incl. 12-14)

3083897

Unavailable

12

Stud

3080283

$12.94

13

STUD (10)

3080016

$5.75

14

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

15

GASKET,CYLINDER

3083733

$40.46

16

NUT-FLANGE(10)

3082911

$1.99

17

HEAD,CYLINDER [No Longer Available]

3083898

Unavailable

18

GASKET, HEAD

3083768

Unavailable

19

NUT-FLANGE(10)

3082910

$2.39

20

ADAPTER Substituted by 3084325

3083171

Unavailable

21

BAND ASM.

3083166

$19.84

22

SCREW Substituted by 3081497

3083086

Unavailable

23

Bolt, Allen

3081330

$3.99

24

FIN DAMPER #1 Substituted by 3083929

3083621

Unavailable

24

FIN DAMPER #1 Substituted by 3083929

3083621

Unavailable

25

FIN DAMPER #2 Substituted by 3083930

3083622

Unavailable

26

FIN DAMPER #3 [No Longer Available]

3083623

Unavailable

27

FIN DAMPER #4 [No Longer Available]

3083624

Unavailable

27

FIN DAMPER #4 [No Longer Available]

3083624

Unavailable

28

GASKET, EXHAUST

3083770

Unavailable

29

NUT(10)

3080285

Unavailable

30

WASHER LOCK ,(10)

3080530

$3.19

31

BOLT&WASHER

3083730

$4.79

32

MOUNTING,RUBBER

3083731

$4.95

33

COLLAR

3083732

Unavailable

34

GASKET

3083835

Unavailable
