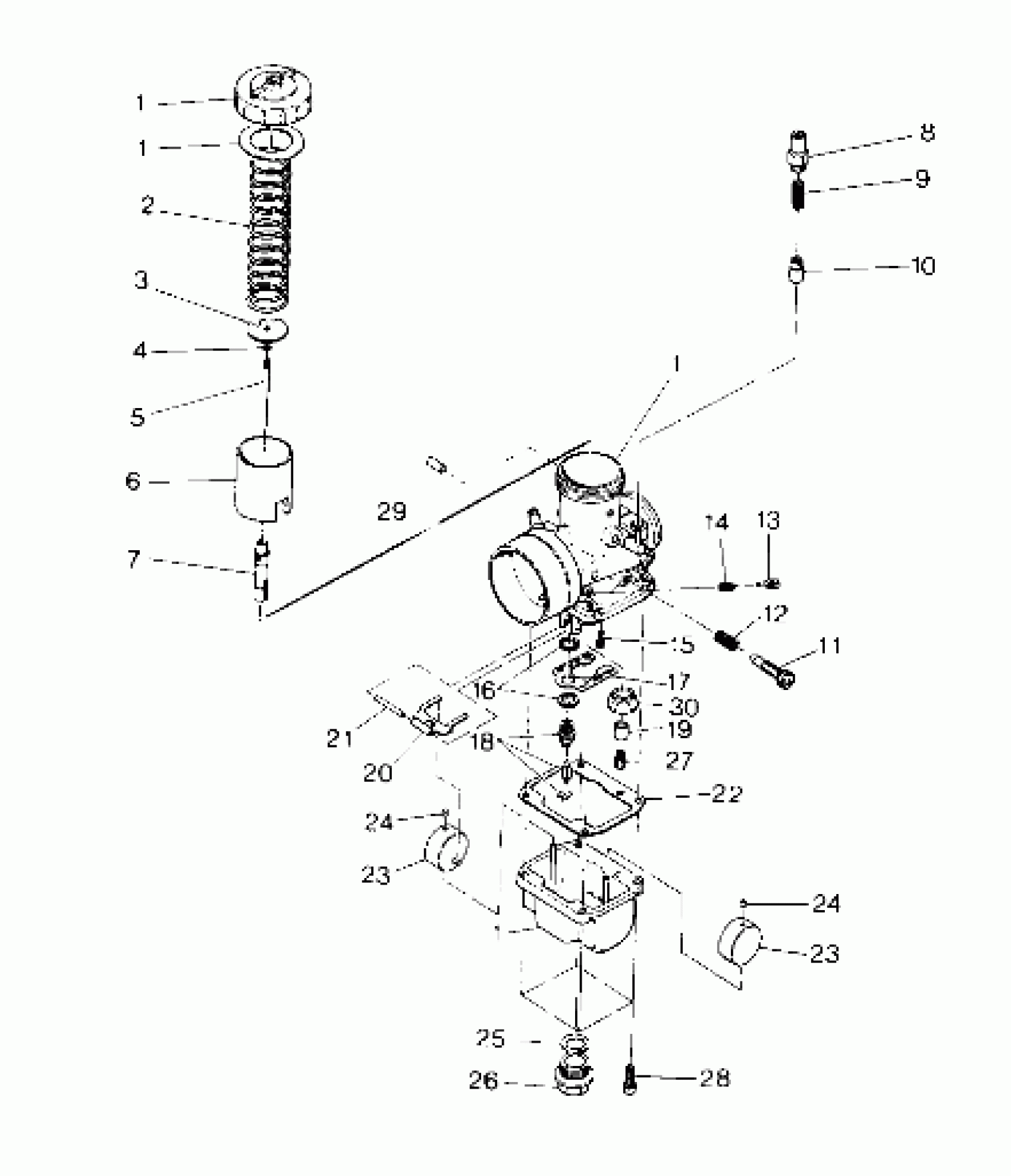

Polaris TRAIL BOSS 250 - X888528 Carburetor Assembly (4914781478034A) Diagram

#

Description
Price

1

CARB. ASM. (Incl. 2-30)

3130401

Unavailable

1

CARB. ASM. (Incl. 2-30)

3130401

Unavailable

1

CARB. ASM. (Incl. 2-30)

3130401

Unavailable

1

CARB. ASM. (Incl. 2-30)

3130401

Unavailable

2

SPRING, THROTTLE

3130318

$20.22

3

PLATE, THROTTLE

3130054

$6.46

4

E RING,(10) Substituted by 3130508

3130230

Unavailable

5

NEEDLE JET,J86DH04 (6DH4-3)

3130402

Unavailable

6

VALVE,THROTTLE,(3.0) (3.0)

3130352

Unavailable

7

JET,NEEDLE,Q-2 (Q-2)

3130165

Unavailable

8

HOLDER,GUIDE Substituted by 3130199

3082480

Unavailable

9

SPRING PLUNGER Substituted by 3130006

3080821

Unavailable

10

PLUNGER ASM, STARTER

3130328

$32.37

11

SCREW,THROTTLE STOP

3130009

$19.99

12

SPRING,THROTTLE ADJ.

3130010

$8.89

13

SCREW,AIR Substituted by 3130011

3130233

Unavailable

14

SPRING,AIR ADJUSTER

3130407

Unavailable

15

JET,PILOT,#45(10)

3130068

$8.89

16

WASHER(10) Substituted by 3130047

3081422

Unavailable

17

PLATE

3130243

Unavailable

18

VALVE,NEEDLE,2.5

3130403

Unavailable

19

RING,CARB

3130232

Unavailable

20

ARM,FLOAT Substituted by 3130048

3081423

Unavailable

21

PIN, FLOAT Substituted by 3130361

3130235

$8.89

22

GASKET,FLOAT CHAMBER

3130236

$12.13

23

FLOAT ASM Substituted by 3130021

3080534

Unavailable

23

FLOAT ASM Substituted by 3130021

3080534

Unavailable

24

CAP,(10) Substituted by 3130237

3130022

Unavailable

24

CAP,(10) Substituted by 3130237

3130022

Unavailable

25

O RING Substituted by 3130239

3082472

Unavailable

26

SCREW, GUIDE

3130404

Unavailable

27

JET,MAIN,HX.HD#230(10)

3130126

$7.27

28

SCREW Substituted by 3130056

3081416

Unavailable

29

CAP Substituted by 3130379

3130405

$6.59

30

RING

3130406

$6.63
