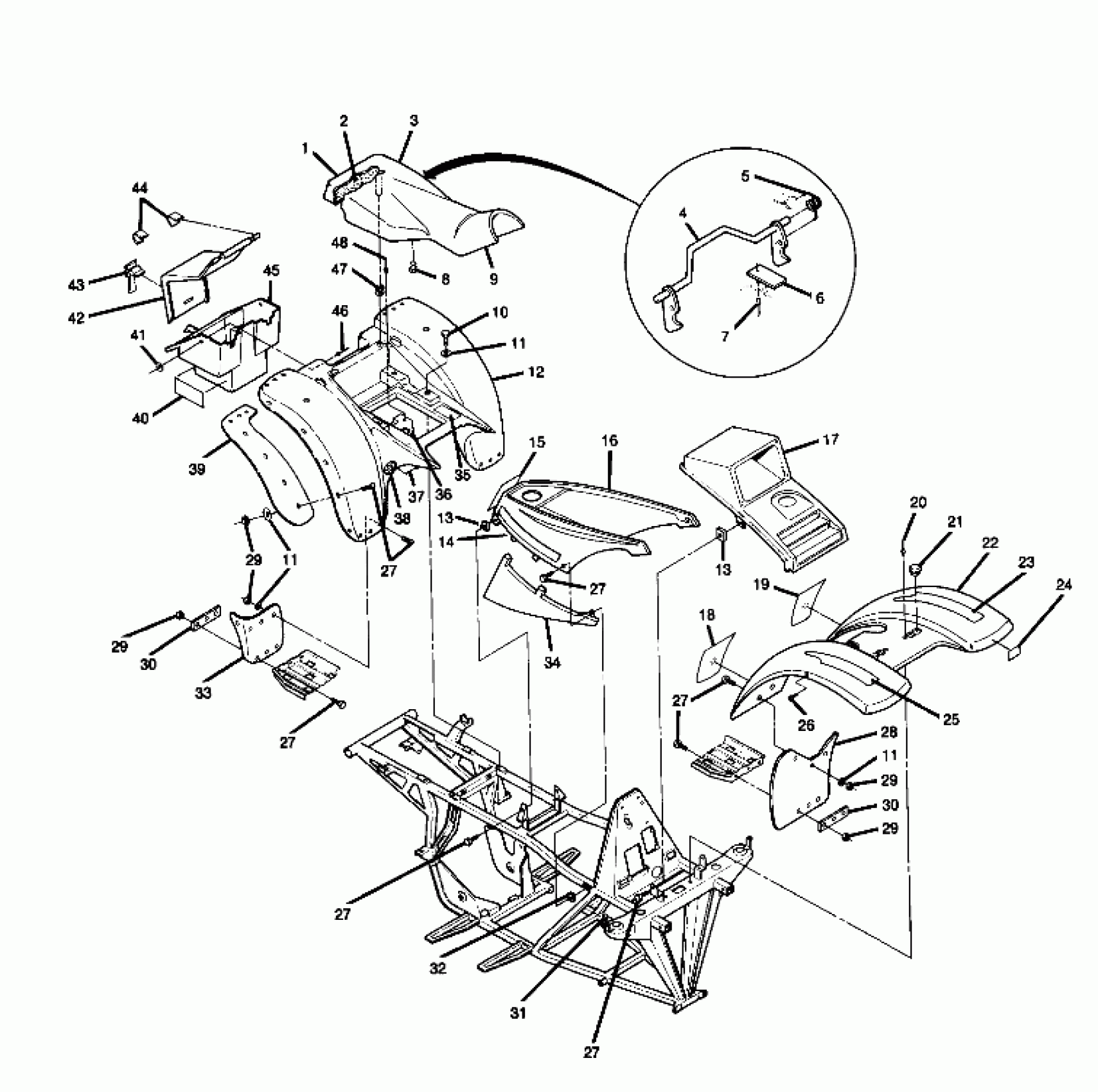

Polaris TRAIL BOSS 250 - X888528 Body Assembly (4914781478001A) Diagram

#

Description
Price

1

SEAT ASM,(T.B.SPORT) Substituted by 2681393

2681338

Unavailable

2

BUN, SEAT Substituted by 2681393

5430975

Unavailable

3

COVER, SEAT [No Longer Available]

2681337

Unavailable

4

LATCH,SEAT

1011558

Unavailable

5

SPRING, LATCH

7041158

Unavailable

6

BRACKET,LEVER RETAINER

5211033

$34.99

7

BLIND RIVET(50)

7621403

$1.19

8

Bumper, Rubber

5410414

$3.17

9

BASE, SEAT Substituted by 2681393

5430974

Unavailable

10

BOLT(10)

7512232

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

12

CAB, REAR [No Longer Available] (Fender)

5430991

Unavailable

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

14

DECAL,TANK COVER [No Longer Available]

7072524

Unavailable

15

DECAL,OPER.CAUT. [No Longer Available]

7072607

Unavailable

16

COVER, FUEL TANK Substituted by 5431197-133

5430972

Unavailable

17

COVER,H/L.(BLUE)

5430973-107

$67.46

18

DECAL,WARN.(ENG.) Substituted by 7072554 (English)

7072556

Unavailable

19

DECAL,WARN.(FR.) [No Longer Available] (French)

7072555

Unavailable

20

RIVET(50)

7621457

$1.19

21

PLUG, RACK HOLE

5430887

Unavailable

22

CAB, FRONT [No Longer Available]

5430990

Unavailable

23

DECAL,LH F.FENDER [No Longer Available]

7072512

Unavailable

24

LABEL, 'U.S.A.' [No Longer Available]

7073025

Unavailable

25

DECAL,RH F.FENDER [No Longer Available]

7072513

Unavailable

26

CLIP, PUSH-ON(10)

7670052

$1.98

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

28

MUDFLAP, LH FRONT Substituted by 5850082-070

5850082

$11.51

28

MUDFLAP, RH FRONT Substituted by 5850083-070

5850083

Unavailable

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

30

BRKT, MUD FLAP Substituted by 5211131-067

5211131

Unavailable

30

BRKT, MUD FLAP Substituted by 5211131-067

5211131

Unavailable

31

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

32

NUT, RETAINER(10) Substituted by 7670060

7670059

$3.97

33

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

33

MUDFLAP,RH,LOW REAR

5850077

$23.65

35

DECAL,FILTER ELEMENT [No Longer Available]

7072403

Unavailable

36

BRKT,R.HOLDDOWN

5220880

Unavailable

37

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

37

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

38

DECAL,SHIFT PATTERN [No Longer Available]

7072525

Unavailable

39

FLAP,MUD,LH REAR

5850060

Unavailable

39

FLAP,MUD,RH REAR

5850061

Unavailable

40

TAPE, FOIL

5810310

Unavailable

41

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

42

LID,TOOL BOX

5430910

Unavailable

43

STRAP,TOOL COMPARTMENT

5410425

Unavailable

44

CLIP, LID HINGE(10)

7670050

Unavailable

45

BOX,TOOL COMP.

5430882

Unavailable

46

RIVET(50)

7621462

$1.19

47

GROMMET

5410413

Unavailable

48

RIVET,3/16X.402(50)

7621432

$1.19
