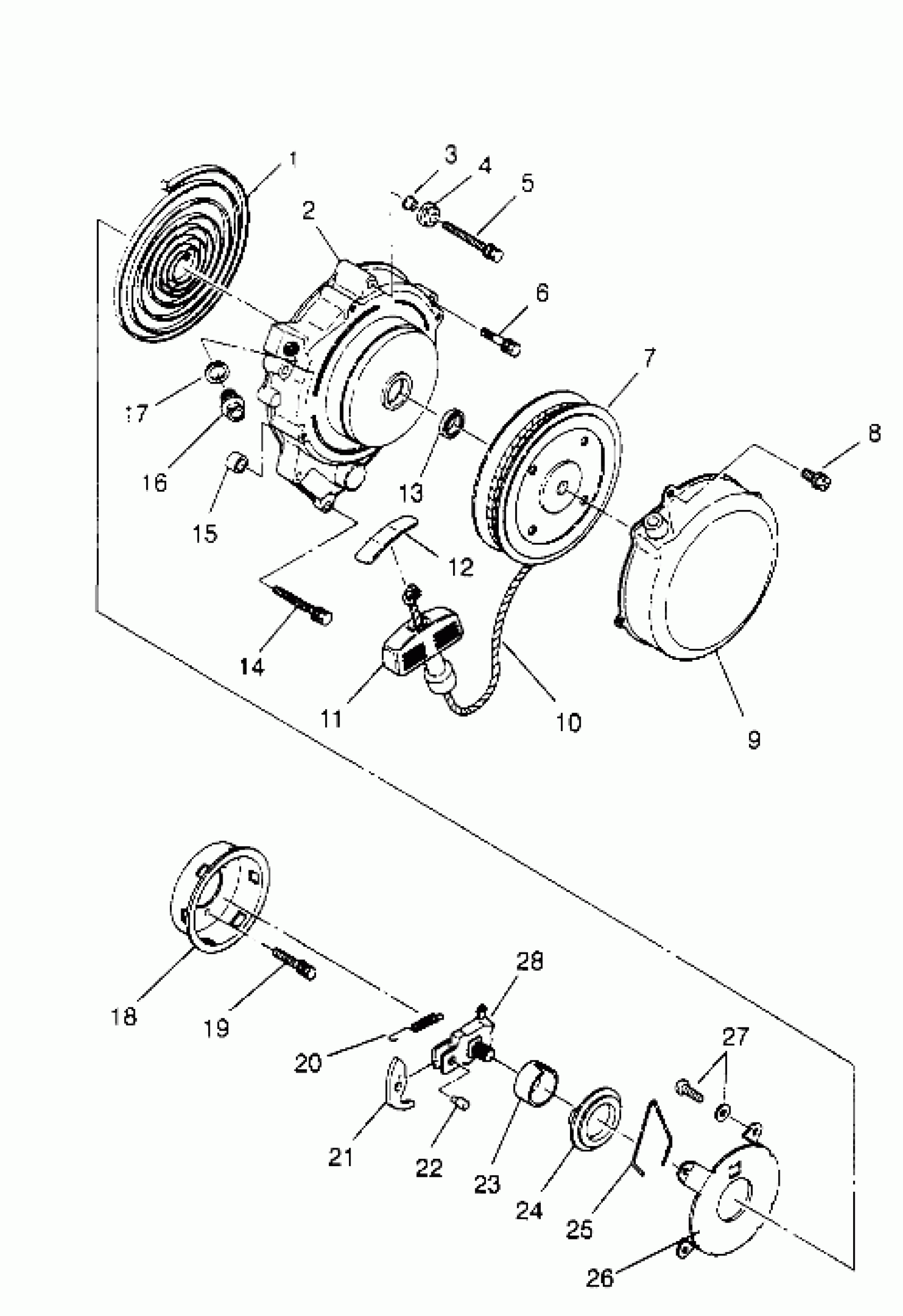

Polaris TRAIL BLAZER - W957221 RECOIL STARTER Trail Blazer W957221 (4930363036C010) Diagram

#

Description
Price

1

Spring, Spiral

3083815

$45.59

2

CASE,STARTER,B UNIT

3083911

$271.99

2

STARTER,RECOIL,COMPL. (Incl. 1, 2, 7-9, 11-13, 20-28)

3083924

Unavailable

3

COLLAR

3083732

Unavailable

4

MOUNTING,RUBBER

3083731

$4.95

5

BOLT & WASHER ASM.

3083926

Unavailable

6

BOLT&WASHER ASM.

3082228

Unavailable

7

REEL, COMPL.

3083814

$97.13

8

Bolt, Flange

3083826

Unavailable

9

CASE,STARTER,COMPL.

3083914

Unavailable

10

ROPE,100 FT,NYL.STARTER

2870621

Unavailable

10

ROPE ASM. Substituted by 2870621 (Incl. 11)

3083828

Unavailable

11

Knob, Starter

3083659

Unavailable

12

Cap, Knob

3083660

Unavailable

13

Grommet

3083817

Unavailable

14

BOLT&WASHER

3083729

$3.49

15

BUSHING, STARTER

3083669

Unavailable

16

PLUG Substituted by 3086749

3083453

Unavailable

17

GASKET

3082956

$4.84

18

Pulley, Starting

3083915

Unavailable

19

BOLT,(10)

3081665

$3.19

20

Spring, Return

3083827

$11.59

21

Ratchet

3083819

Unavailable

22

Pin, Ratchet

3083820

Unavailable

23

Hook, Spring

3083818

$39.99

24

GUIDE,RATCHET

3083821

Unavailable

25

SPRING,FRICTION

3083912

$25.59

26

Case, Spring

3083925

Unavailable

27

SCREW & WASHER

3084176

Unavailable

28

GUIDE, COMPL.

3083913

Unavailable
