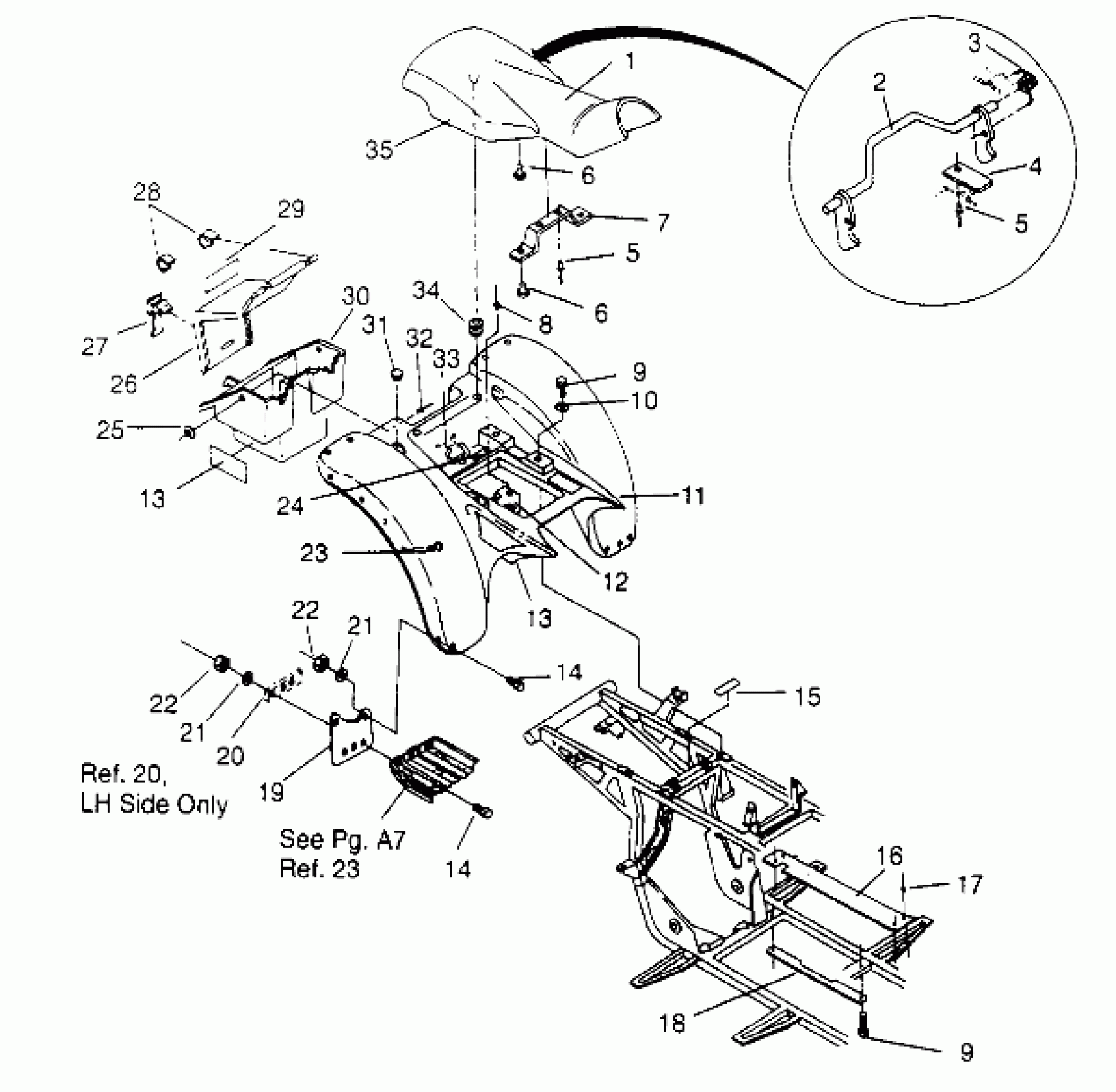

Polaris TRAIL BLAZER - W957221 REAR CAB ASSEMBLY Trail Blazer W957221 (4930363036A006) Diagram

#

Description
Price

1

SEAT ASM,(ATV),PURP.VELVET Substituted by 2682357-194

2681724-194

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$29.25

5

BLIND RIVET(50)

7621403

$1.49

5

BLIND RIVET(50)

7621403

$1.49

6

Bumper, Rubber

5410414

$3.19

6

Bumper, Rubber

5410414

$3.19

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

RIVET,3/16X.402(50)

7621432

$1.49

9

BOLT(10)

7512232

$1.49

9

BOLT(10)

7512232

$1.49

10

WASHER,WROUGHT(10)

7558302

$1.59

11

CAB,REAR,WHITE

5430991-133

Unavailable

12

BRKT,R.HOLDDOWN

5220880

Unavailable

13

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

13

TAPE, FOIL

5810310

Unavailable

13

TAPE, FOIL

5810424

Unavailable

13

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

13

TAPE, FOIL

5810310

Unavailable

13

TAPE, FOIL

5810424

Unavailable

14

BOLT, BLACK(10)

7512282

$1.49

14

BOLT, BLACK(10)

7512282

$1.49

15

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

16

GUARD,CLUTCH,OUTER

5222860-067

$7.06

17

RIVET-3/16-.090-.290

7661637

$1.49

18

GUARD,CLUTCH,INNER

5211359-067

Unavailable

19

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

19

MUDFLAP,RH,LOW.REAR

5850111

Unavailable

20

BRKT, LH MUD FLAP

5211131-067

Unavailable

21

WASHER, FLAT(10)

7555859

$1.49

21

WASHER, FLAT(10)

7555859

$1.49

22

NUT-LOCK(10)

7542122

$1.49

22

NUT-LOCK(10)

7542122

$1.49

23

CLIP, PUSH-ON(10)

7670052

$1.99

24

DECAL,CARB.INFO.

7073761

Unavailable

25

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

26

LID,TOOLBOX,(WHITE)

5430769-133

$98.79

27

STRAP,TOOL COMPARTMENT

5410425

Unavailable

28

CLIP, LID HINGE(10)

7670050

Unavailable

29

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

30

BOX,TOOL COMP.

5430882

Unavailable

31

PLUG, RACK HOLE

5430887

$2.99

32

RIVET(50)

7621462

$1.49

33

RETAINER,TOOL POUCH

7080385

Unavailable

34

Grommet

5411042

Unavailable

35

COVER,SEAT,PURP.VELVET

2681723-194

Unavailable
