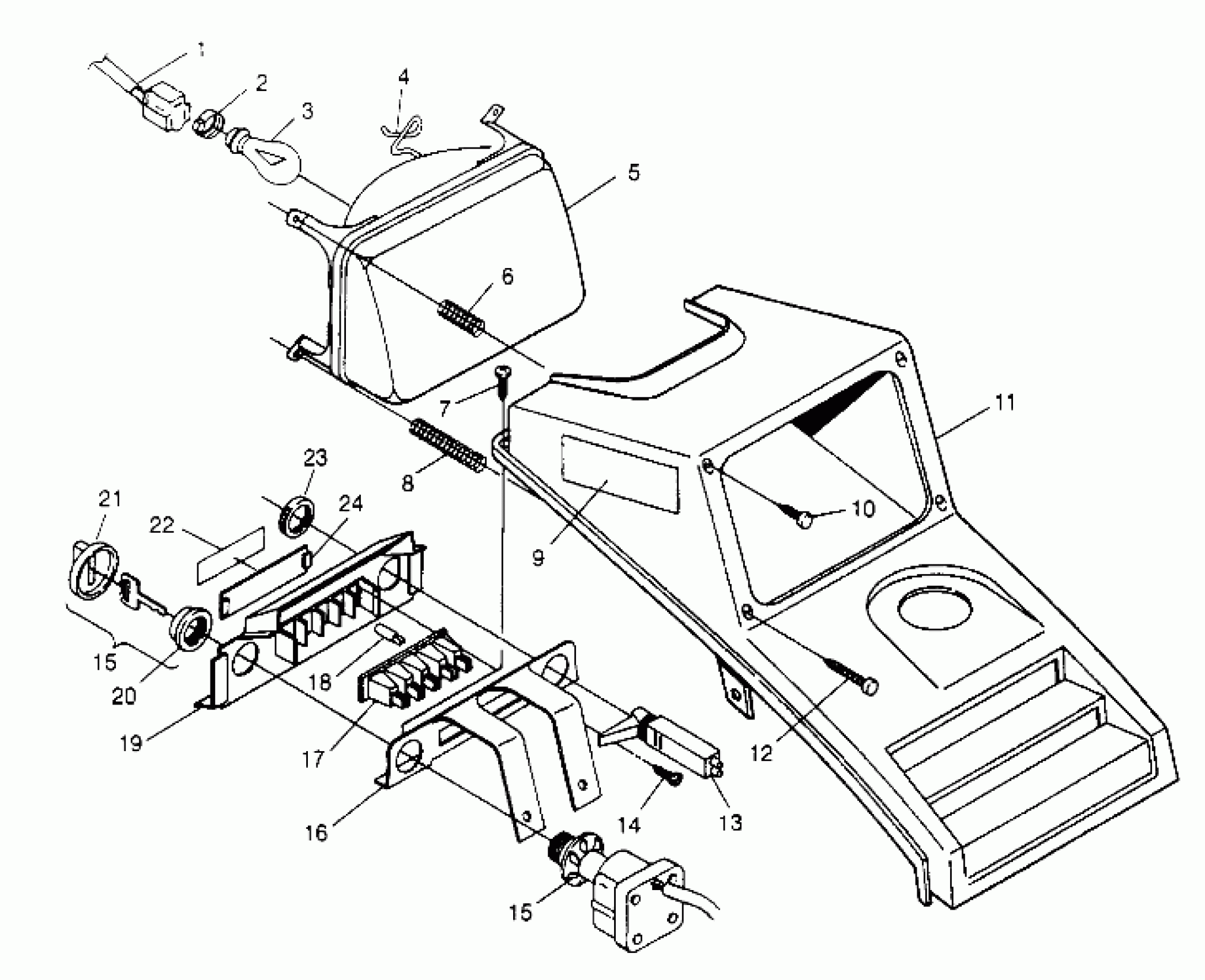

Polaris TRAIL BLAZER - W957221 HEADLIGHT ASSEMBLY Trail Blazer W957221 (4930363036A013) Diagram

#

Description
Price

1

Harness, Main (See Pg. A31, Ref. 1)

-------

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

$29.99

4

RETAINER,H/L BULB

4032063

Unavailable

5

H/L ASM,W/BULBSEAL

4032065

Unavailable

6

SPRING-ADJ

4032002

Unavailable

7

SCREW(10)

7512017

$4.79

8

SPRING,ADJ.

4032041

Unavailable

9

REFLECTOR ASM,AMBER

2670134

$9.70

10

SCREW, ADJ.(10)

4032003

Unavailable

11

COVER,OILTANK-H/L,PURP.

5430973-194

Unavailable

12

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

13

KIT-CHOKE CONTROL

2200188

$24.27

13

CABLE, CHOKE

7080371

$97.13

14

SCREW, SEM(10)

7511862

$6.99

15

SWITCH,IGNITION,A.D. (See Footnote Below)

4110139

Unavailable

15

SWITCH,IGNITION,A.D. (See Footnote Below)

4110139

Unavailable

16

BRKT, IGN. PANEL

5220965-067

Unavailable

17

STRIP, SOCKET

4032037

$27.19

18

BULB

4030042

Unavailable

19

PANEL, IGNITION

5430995

Unavailable

20

NUT,IGN.SWITCH

5432090

Unavailable

21

COVER, KEY Substituted by 5433534

5431964

Unavailable

22

DECAL, PANEL [No Longer Available]

7072528

Unavailable

23

Nut

7080229

$19.99

24

LENS ASM,PILOT LIGHT (Incl. 22) NOTE: Ignition Key may be ordered by using the 4 digit number on the key.

2652049

Unavailable
