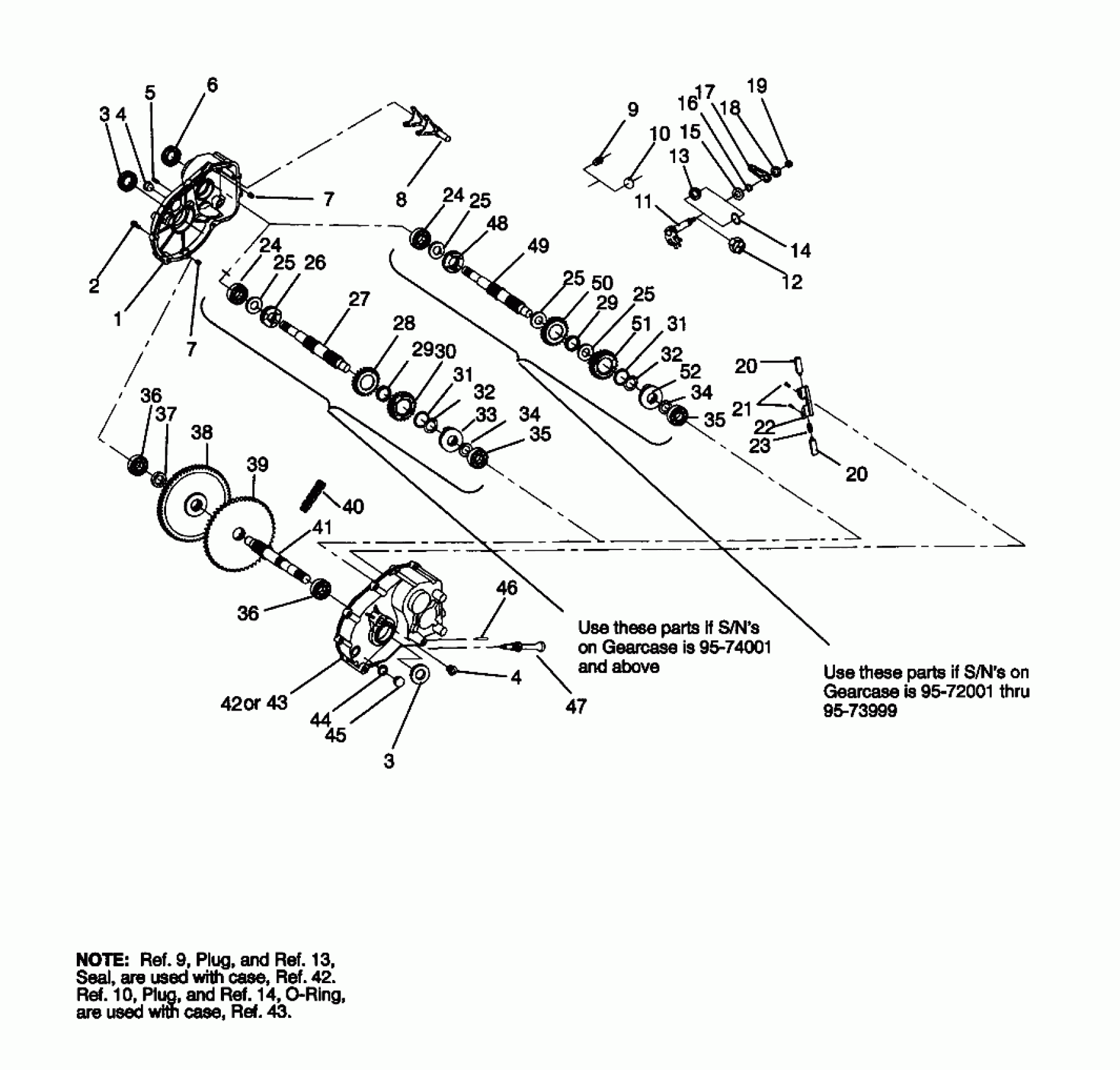

Polaris TRAIL BLAZER - W957221 GEARCASE ASSEMBLY Trail Blazer W957221 (4930363036C005) Diagram

#

Description
Price

-

GEARCASE ASM,PRD. Substituted by 1341124

1341151

Unavailable

1

GEARCASE, LH.

3233095

$298.99

2

Screw

3233026

$6.46

3

SEAL Substituted by 3233248

3233096

Unavailable

3

SEAL Substituted by 3233248

3233096

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

SEAL Substituted by 3233248

3233097

$30.88

7

PIPE, KNOCK

3233021

Unavailable

7

PIPE, KNOCK

3233021

Unavailable

8

RAIL,SHIFT,ASM.

3233098

Unavailable

9

PLUG

3233116

Unavailable

10

PLUG

3233178

Unavailable

11

SHAFT,SHIFT,ASM,

3233117

Unavailable

12

SWITCH,TRANS.INDIC.

4110172

Unavailable

13

SEAL

3233118

Unavailable

14

O-RING

3233179

Unavailable

15

WASHER

3233119

$7.79

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

17

BELLCRANK, HI/REV

3233155

Unavailable

18

Washer

3233054

$6.46

19

Nut

3233055

Unavailable

20

PIN

3233031

$32.11

20

PIN

3233031

$32.11

21

SCREW Substituted by 3233747

3233033

Unavailable

22

BRACKET

3233030

$21.43

23

Spring

3233032

$12.94

24

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

24

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

25

WASHER

3233099

Unavailable

25

WASHER

3233099

Unavailable

25

WASHER

3233099

Unavailable

25

WASHER

3233099

Unavailable

26

DOG,REV.ENGAGE.

3233180

Unavailable

27

SHAFT, INPUT

3233181

$214.29

28

GEAR,REVERSE

3233182

Unavailable

29

BEARING, NEEDLE

3233103

$31.99

29

BEARING, NEEDLE

3233103

$31.99

30

SPKT,19T,FWD.

3233183

Unavailable

31

Washer

3233105

$7.19

31

Washer

3233105

$7.19

32

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

32

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

33

DOG,FWD.ENGAGE.

3233184

Unavailable

34

WASHER

3233007

Unavailable

34

WASHER

3233007

Unavailable

35

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

35

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

36

BEARING

3233020

$47.99

36

BEARING

3233020

$47.99

37

VALVE,SHOCK

1500032

$4.95

38

GEAR, 65T

3233109

Unavailable

39

SPROCKET, 51T

3233121

Unavailable

40

CHAIN,SILENT,60P

3233111

$79.19

41

SHAFT, OUTPUT

3233112

Unavailable

42

GEARCASE, RH.

3233113

Unavailable

43

GEARCASE,RH.

3233185

Unavailable

44

Washer

3233035

Unavailable

45

PLUG Substituted by 3233448

3233114

$23.81

46

Vent

3233037

Unavailable

47

DIPSTICK Substituted by 3233478

3233115

$24.27

48

DOG,REV.ENGAGEMENT

3233100

Unavailable

49

SHAFT, INPUT

3233101

Unavailable

50

GEAR,REVERSE,19T

3233102

Unavailable

51

SPRKT,FWD,19T

3233104

Unavailable

52

DOG,FWD.ENGAGEMENT NOTE: Ref. 9, Plug, and Ref. 13, Seal, are used with case, Ref. 42. Ref. 10, Plug, and Ref. 14, O-Ring, are used with case, Ref. 43.

3233107

Unavailable
