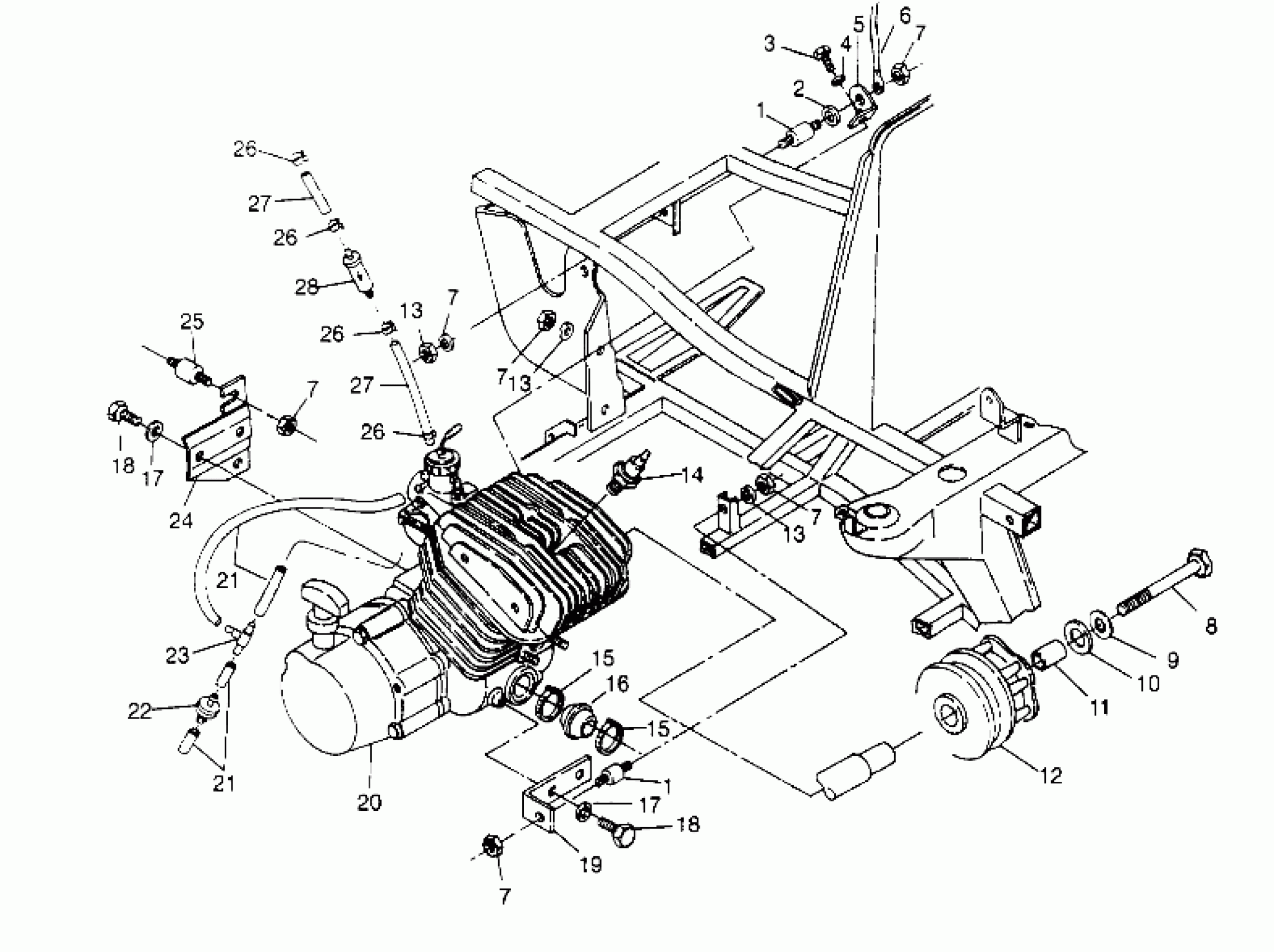

Polaris TRAIL BLAZER - W957221 ENGINE MOUNTING Trail Blazer W957221 (4930363036A009) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

$40.46

1

MOUNT,MOTOR

3110026

$40.46

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

BOLT(10)

7515321

Unavailable

4

LOCK WASHER(10)

7552901

$1.19

5

MOUNT, ENG.,TOP

5220471-067

Unavailable

6

CABLE,GROUND/ENG.

4010067

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

7

NUT LOCK(10)

7542403

Unavailable

8

BOLT(10)

7512566

$33.24

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

11

BUSHING-.437 X.770 X.50

5430261

$7.14

12

Asm., Drive Clutch (See Pg., Ref.)

----

Unavailable

13

WASHER(10)

7555801

$3.97

13

WASHER(10)

7555801

$3.97

13

WASHER(10)

7555801

$3.97

14

SPARKPLUG (10)

3070156

$3.97

15

CLAMP, NARROW BAND(10)

7080511

$4.76

15

CLAMP, NARROW BAND(10)

7080511

$4.76

16

BOOT,CLUTCH INTAKE

5410421

$11.32

17

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

17

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

18

SCREW(10)

7512490

$3.97

18

SCREW(10)

7512490

$3.97

19

PLATE,FR.MTR.MT.

5220881-067

Unavailable

20

ENG.(S.B.)EC25PF-SB [No Longer Available]

3084717

Unavailable

21

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

21

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

22

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

23

Fitting, Tee

7052005

Unavailable

24

MT,R.A/C(ATV),BLK.

5241056-067

Unavailable

25

MOUNT, MOTOR

3110028

Unavailable

26

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

26

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

26

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

26

CLAMP-HOSE,(10) (Yellow)

7080236

$1.59

27

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

27

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

28

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46
