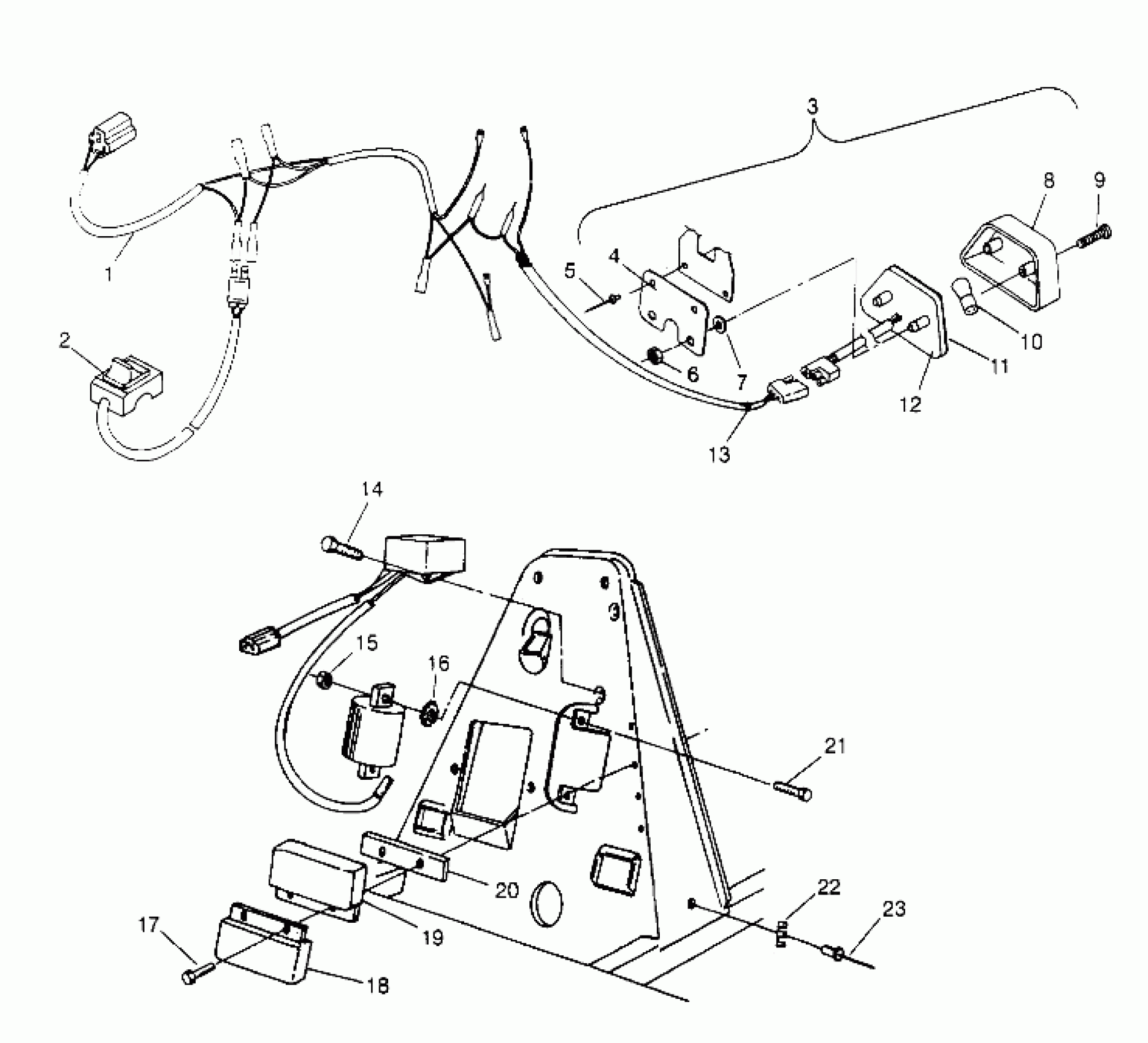

Polaris TRAIL BLAZER - W957221 ELECTRICAL/TAILLIGHT ASSEMBLY Trail Blazer W957221 (4930363036C003) Diagram

#

Description
Price

1

HARNESS,MAIN,(TRL BLAZER)

2460486

$214.29

2

Switch, Aux. Shut-Off (See Pg. A19, Ref. 6)

-------

Unavailable

3

TAIL LIGHT ASM.

2432034

$55.99

4

ISOLATOR,TAILLIGHT

5211391-067

$13.39

5

RIVET(50)

7621470

$3.17

6

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

7

WASHER,NYLON(10)

7555916

$1.59

8

LENS,TAILLIGHT

4032046

$32.37

9

Screw, Taillight

4032029

$4.79

10

BULB,TAILLIGHT

4030043

$6.46

11

GASKET,TAILLIGHT

4032045

$4.03

12

BACKING,TAILLIGHT

4032064

$83.99

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

BOLT(10)

7512232

$1.49

15

NUT(10)

7541925

$1.49

16

WASHER(10)

7571602

$4.79

17

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

18

LIMITER,LR-47,MINKS

4060093

Unavailable

19

REGULATOR,14 VAC.LR-9

4060122

Unavailable

20

HEAT SINK

5210650

Unavailable

21

SCREW(10)

7512007

$3.99

22

STRIP,TERMINAL

4040025

Unavailable

23

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49
