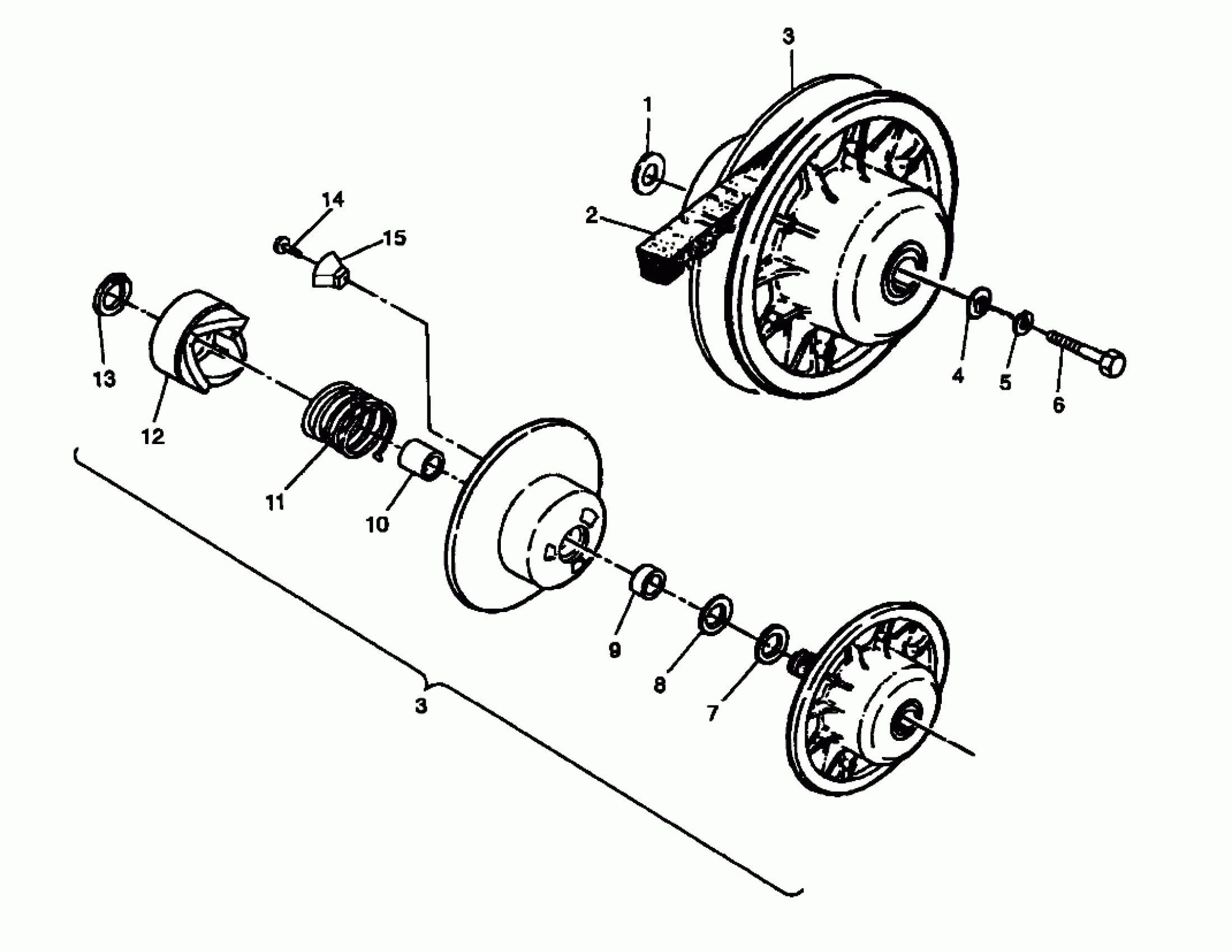

Polaris TRAIL BLAZER - W957221 DRIVEN CLUTCH ASSEMBLY Trail Blazer W957221 (4930363036B012) Diagram

Description

Price

BUSHING(10)

7556401

Unavailable

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

CLUTCH, DRIVEN Substituted by 1322180

1322158

Unavailable

CLUTCH, DRIVEN Substituted by 1322180

1322158

Unavailable

WASHER, DOMED(10)

5220646

$2.39

WASHER, DOMED(10)

5220646

$2.39

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

WASHER(10)

7556804

Unavailable

WASHER(10)

7555898

Unavailable

BUSHING, DRIVEN

3576504

$23.99

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

SPRING,CLUTCH,(RED)

7041198

$52.60

RAMP, STATIONARY

5130738

Unavailable

RETAINING RING(10)

7714401

$2.63

BOLT(10)

7511854

$1.49

BUTTON,RAMP

5430766

Unavailable
