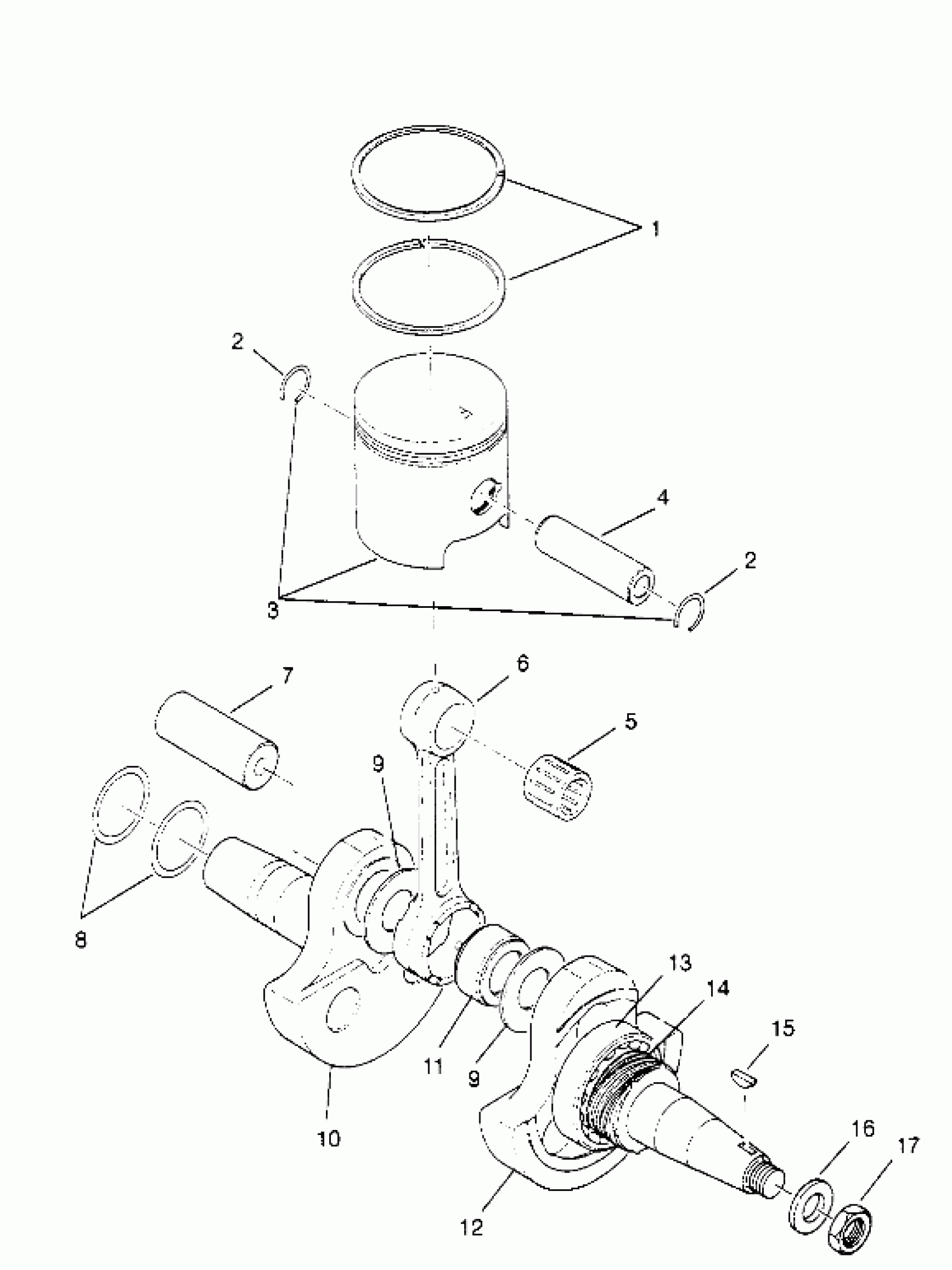

Polaris TRAIL BLAZER - W957221 CRANKSHAFT and PISTON Trail Blazer W957221 (4930363036C008) Diagram

#

Description
Price

-

RING,.020 O/S

3083717

$28.56

-

RING,PISTON(O/S,1.0MM)

3083974

$31.99

1

RING, PISTON

3083546

Unavailable

1

RING,.010 O/S

3083678

Unavailable

2

CLIP,PISTON PIN,(10)

3083839

$4.75

2

CLIP,PISTON PIN,(10)

3083839

$4.75

3

SET,PISTON,.040"/1.00MM O/S* [1.00mm/.04" O/S](Incl. 2)

3083972

Unavailable

3

PISTON * (Incl. 2)

3083942

Unavailable

3

PISTON,.020 O/S (Incl. 2)

3083944

Unavailable

3

PISTON,.010 O/S (Incl. 2)

3083943

Unavailable

4

Pin, Piston

3083838

$27.99

5

BEARING, SMALL END

3083626

Unavailable

6

ROD CONNECTING

3082790

Unavailable

7

CRANK PIN PTO

3082796

$36.41

8

SPACER #1 (0.2)

3083629

Unavailable

8

SPACER #3 (0.1)

3083630

Unavailable

9

Spacer

3083804

$19.99

9

Spacer

3083804

$19.99

10

CRANKSHAFT,#2

3083802

Unavailable

11

BEARING,LGE.END

3083803

Unavailable

12

CRANKSHAFT #1

3083899

$329.99

12

CRANKSHAFT ASM. (Incl. 6, 7, 9-14)

3084582

Unavailable

13

Bearing, Ball

3084580

$31.99

14

GEAR,CRANKSHAFT (O/I)

3083745

Unavailable

15

KEY Substituted by 3081543

3080130

Unavailable

16

WASHER Substituted by 3086767

3083904

Unavailable

17

LOCKNUT

3083905

Unavailable
