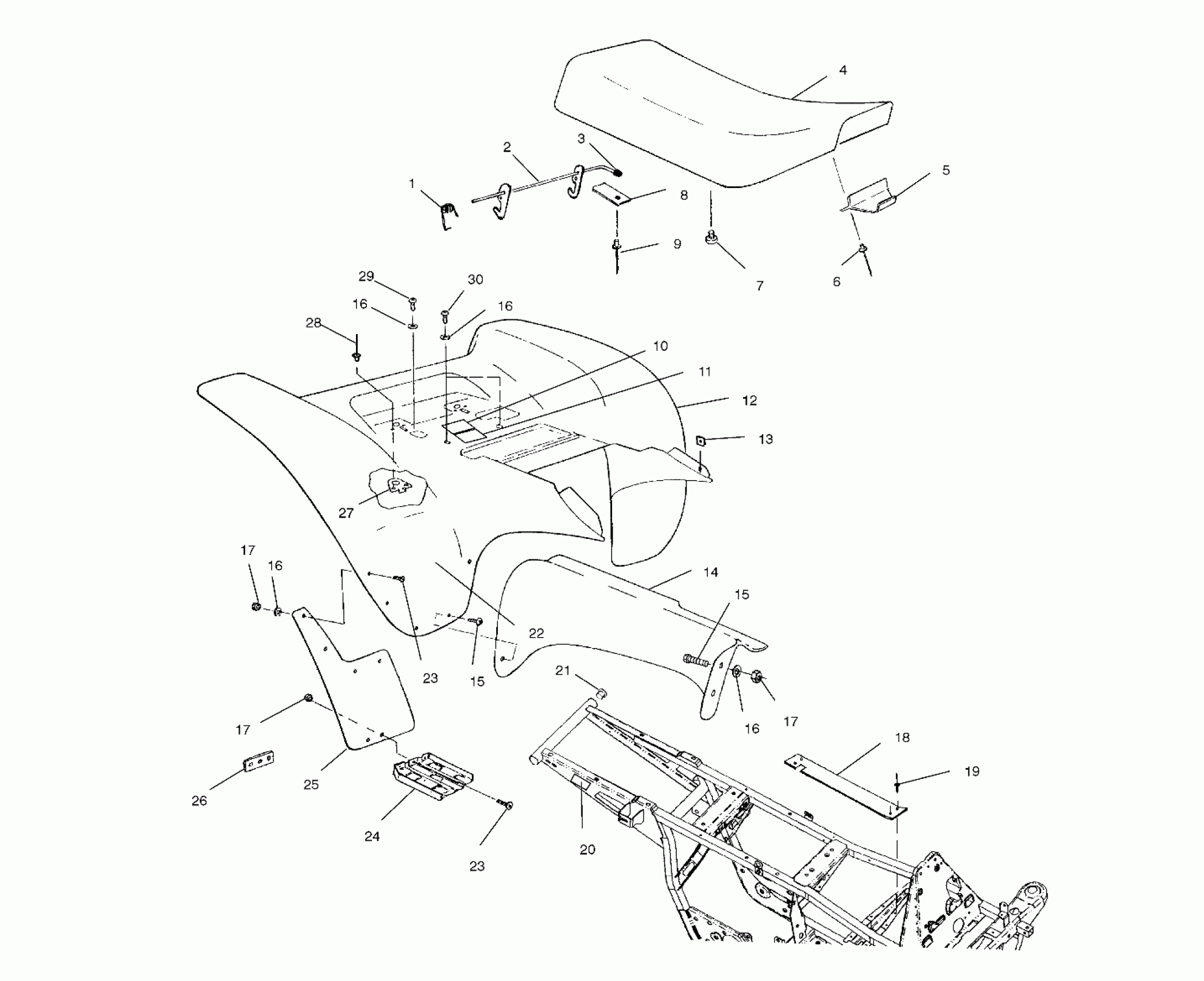

Polaris TRAIL BLAZER - A00BA25CA REAR CAB - A00BA25CA (4954825482A006) Diagram

#

Description
Price

1

SPRING,LATCH,LIGHT

7041607

Unavailable

2

LATCH,SEAT,BLK. Substituted by 1040412

1040412-067

Unavailable

3

CAP,SEATLATCH,GEN 3

5411392

Unavailable

4

COVER,SEAT,MED.YELLOW

2681769-053

Unavailable

4

SEAT,MED YELLOW

2682430-053

Unavailable

5

TONGUE,SEAT

5431986

$10.51

6

RIVET(50)

7621479

$1.98

7

Bumper, Rubber

5410414

$3.17

8

BRACKET,LEVER RETAINER

5211033

$34.99

9

BLIND RIVET(50)

7621403

$1.19

10

DECAL,CARB.INFO.

7073761

Unavailable

11

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

12

CAB,REAR,GEN III,BR.WHITE Substituted by 5434014-133 (If built before 7/06/00)

5432820-133

Unavailable

12

CAB-REAR,GEN 3,BRIGHT WHITE (If built after 7/06/00)

5434014-133

Unavailable

13

NUT, SPEED(10)

7670057

$1.19

14

SHIELD,MUFFLER,BLK Substituted by 2632280

5432278-070

Unavailable

15

Screw

7517264

$3.97

15

Screw

7517264

$3.97

16

WASHER, FLAT(10)

7555859

$1.19

16

WASHER, FLAT(10)

7555859

$1.19

16

WASHER, FLAT(10)

7555859

$1.19

16

WASHER, FLAT(10)

7555859

$1.19

17

NUT-LOCK(10)

7542122

$1.19

17

NUT-LOCK(10)

7542122

$1.19

17

NUT-LOCK(10)

7542122

$1.19

18

GUARD-CLUTCH, BLK

5241403-067

$5.71

19

RIVET,INTERLOCK,B(50)

7661638

$1.19

20

REFLECTOR ASM,RED

2670133

$5.71

21

PLUG,ENDCAP,RIBBED

5432831

$5.65

22

Foil, Rear Cab

5810957

Unavailable

22

Foil, Rear Cab, Small

5810991

Unavailable

23

BOLT, BLACK(10)

7512282

Unavailable

23

BOLT, BLACK(10)

7512282

Unavailable

24

Footpad (See Front Cab Pg. A5, Ref. 26)

----

Unavailable

25

MUDFLAP,LH,R.HYBRID Substituted by 5812134

5850147

Unavailable

25

MUDFLAP,RH,R.HYBRID

5850148

Unavailable

26

BRKT, LH MUD FLAP

5211131-067

Unavailable

27

BRKT,R.HOLDDOWN

5220880

Unavailable

28

RIVET(50)

7621472

$1.49

29

BOLT(10)

7512232

$1.19

30

SCREW(10)

7512242

$2.38
