Description

Price

1

CAP, GAS, (BLACK)

5430725

$24.27

2

GASKET-GAS CAP

5810144

$5.59

3

GROMMET,FUELTANK

5410842

Unavailable

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

SCREW(10)

7512310

$2.39

7

WASHER(10)

7555734

$1.49

8

SCREW(10)

7512208

$3.99

9

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

DECAL,FUEL LEVER

7074637

Unavailable

12

Duct, Inlet Down Tube (See Clutch Cover Pg. C4, Ref. 20)

-------

Unavailable

13

SCREW(10)

7511840

Unavailable

14

Lever, Fuel

5431021

$4.79

15

SPRING,LEVER,COMPRESS.

7041209

$7.19

16

EXT.,FUEL LEVER

5431391

$7.19

17

Grommet

5432291

$2.39

18

WASHER(10)

7555726

$1.59

19

SCREW(10)

7515136

$1.49

20

VALVE ASM, FUEL (Incl. Gasket)

7051006

$51.99

20

Gasket, Fuel Valve

5810859

$6.39

21

PAD,BULK FUEL

8360026

Unavailable

22

TANK,FUEL,W/ VALVE (Incl. 5,19,20)

1240049

Unavailable

23

SEAL,FOAM

5811527

Unavailable

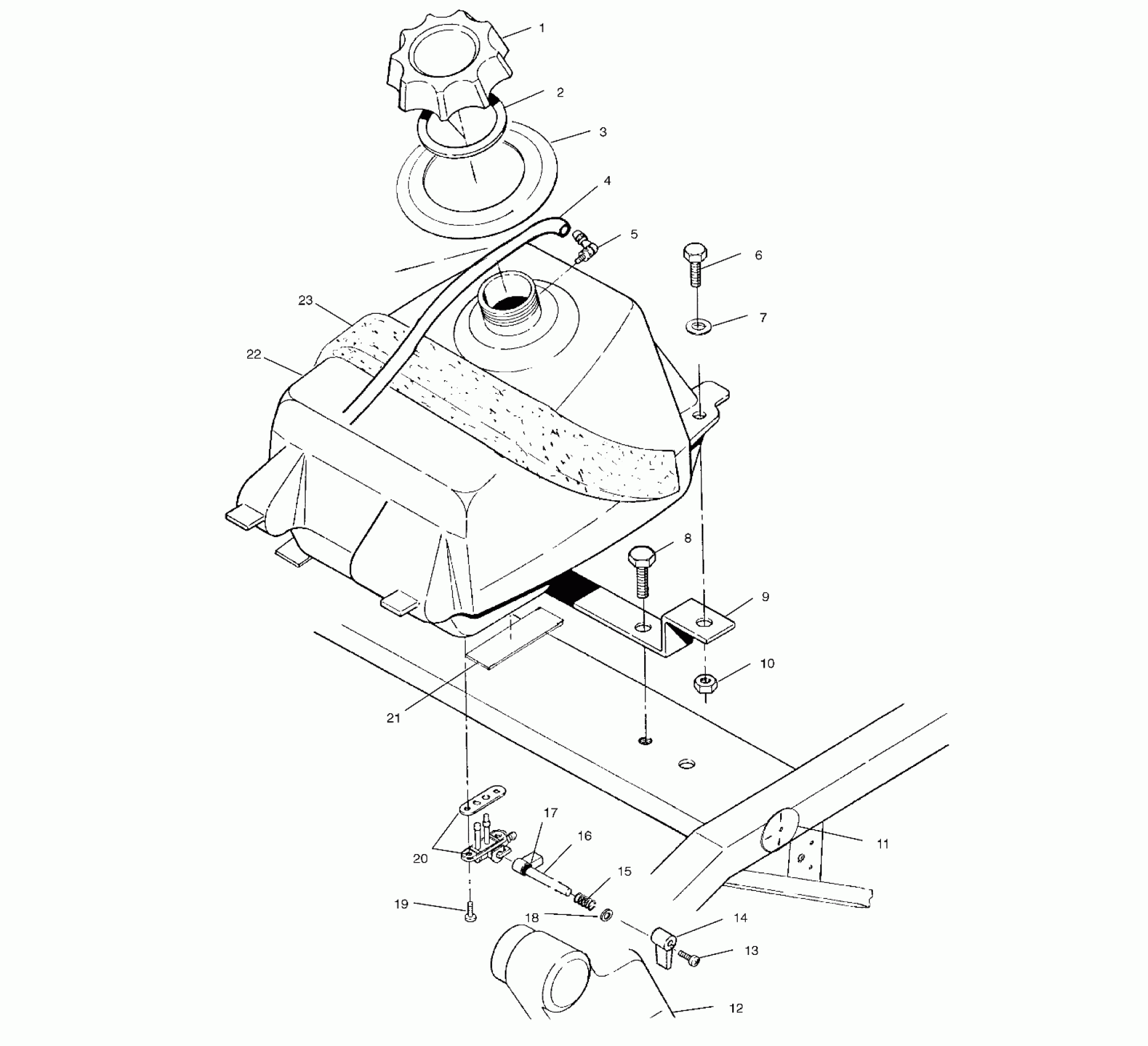

Polaris TRAIL BLAZER - A00BA25CA FUEL TANK - A00BA25CA (4954825482A012) Diagram

CAP, GAS, (BLACK)

GASKET-GAS CAP

GROMMET,FUELTANK

FUEL LINE,1/8 ID,600 CM.

Vent, Tank

SCREW(10)

WASHER(10)

SCREW(10)

BRKT,R.TANK MT,BLK.

NUT-5/16-18 NYLOK-Y

DECAL,FUEL LEVER

Duct, Inlet Down Tube (See Clutch Cover Pg. C4, Ref. 20)

SCREW(10)

Lever, Fuel

SPRING,LEVER,COMPRESS.

EXT.,FUEL LEVER

Grommet

WASHER(10)

SCREW(10)

VALVE ASM, FUEL (Incl. Gasket)

Gasket, Fuel Valve

PAD,BULK FUEL

TANK,FUEL,W/ VALVE (Incl. 5,19,20)

SEAL,FOAM
