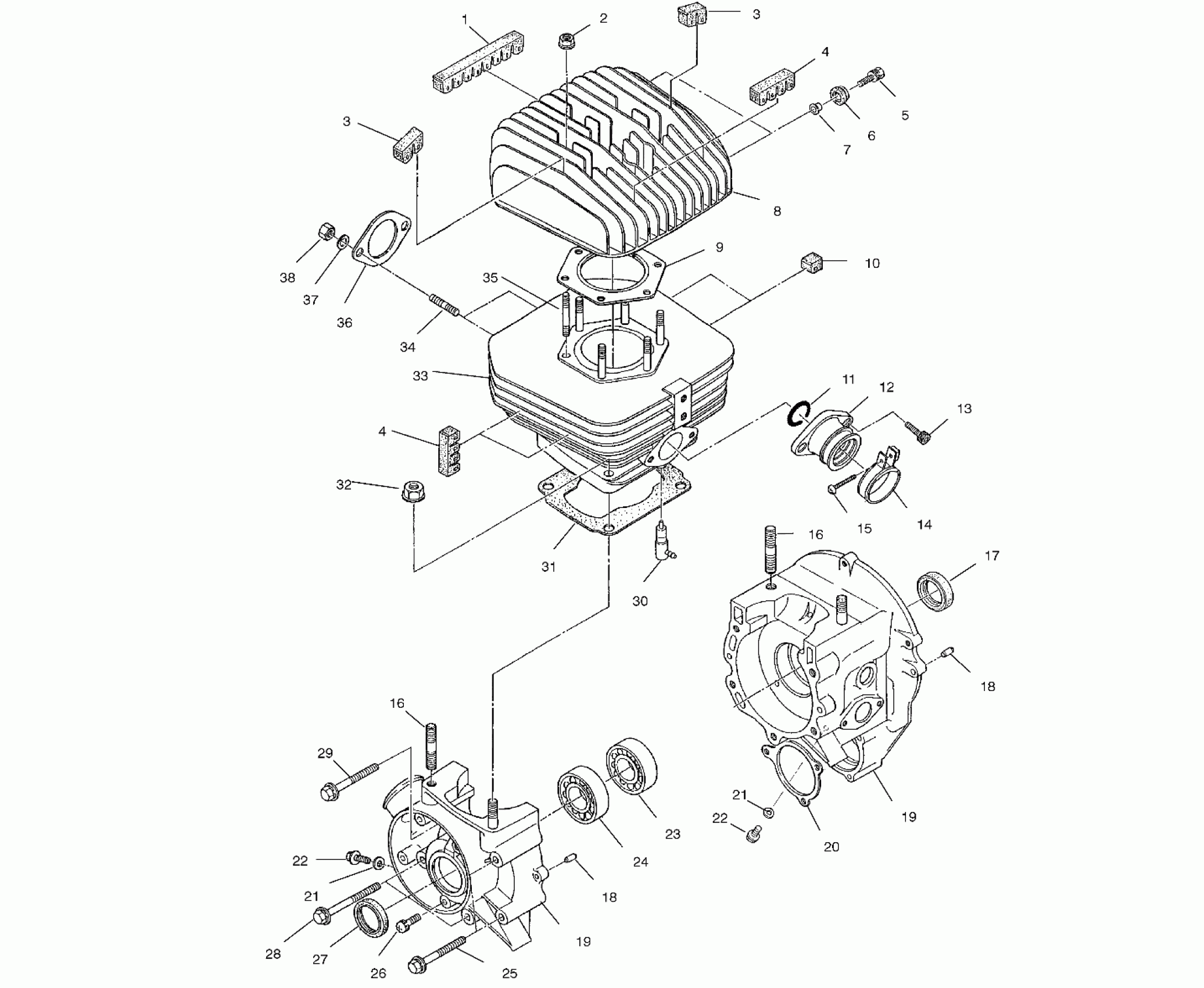

Polaris TRAIL BLAZER - A00BA25CA CRANKCASE and CYLINDER - A00BA25CA (4954825482C009) Diagram

#

Description
Price

1

FIN DAMPER #3

3083931

Unavailable

2

NUT-FLANGE(10)

3082910

$2.39

3

FIN DAMPER #4

3083932

$18.23

3

FIN DAMPER #4

3083932

$18.23

4

FIN DAMPER #1

3083929

Unavailable

4

FIN DAMPER #1

3083929

Unavailable

5

BOLT&WASHER

3083730

$4.79

6

MOUNTING,RUBBER

3083731

$4.95

7

COLLAR

3083732

Unavailable

8

HEAD,CYLINDER Substituted by 3086841

3086108

Unavailable

9

GASKET,HEAD,(CP)

3084015

Unavailable

10

FIN DAMPER #2

3083930

Unavailable

11

O-Ring

3084292

Unavailable

12

ADAPTER, CARB. * (Incl. 11)

3085013

$103.99

13

BOLT (SOCKET HEAD) Substituted by 3081330

3086786

Unavailable

14

BAND-CARB MTG. (Incl. 15)

3082257

Unavailable

15

SCREW,(10)

3081497

$2.39

16

STUD Substituted by 3085713

3080746

Unavailable

16

STUD Substituted by 3085713

3080746

Unavailable

17

SEAL,OIL Substituted by 3082162

3080006

$38.60

18

PIN, DOWEL Substituted by 3086838

3080103

$7.14

18

PIN, DOWEL Substituted by 3086838

3080103

$7.14

19

CRANKCASE Substituted by 3087048 (Incl. 16-18,21-25,27-29)

3085889

$559.99

19

CRANKCASE Substituted by 3087048 (Incl. 16-18,21-25,27-29)

3085889

$559.99

20

GASKET, STARTER Substituted by 3085283

3084018

Unavailable

21

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

21

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

22

PLUG, DRAIN

3083767

Unavailable

22

PLUG, DRAIN

3083767

Unavailable

23

BEARING,BALL

3085890

Unavailable

24

Bearing, Ball

3084580

$31.99

25

BOLT W/WASHER

3080739

$6.39

26

SCREW&WASHER ASM.

3081635

Unavailable

27

SEAL, OIL, PTO (PTO)

3084581

$28.32

28

BOLT&WASHER ASSY.

3083615

Unavailable

29

BOLT AND WASHER ASSY.

3082096

$1.49

30

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

31

GASKET, CYLINDER Substituted by 3083733

3084016

$40.46

32

NUT-FLANGE(10)

3082911

$1.99

33

CYLINDER * (Incl. 34,35)

3085541

Unavailable

34

STUD,(10)

3085326

Unavailable

35

Stud

3080283

$12.94

36

GASKET,EXHAUST Substituted by 3084439

3084017

Unavailable

37

WASHER LOCK ,(10)

3080530

$3.19

38

NUT(10)

3080285

Unavailable
