1972 Yamaha TR3 (TR3) Transmission Diagram

← All diagrams

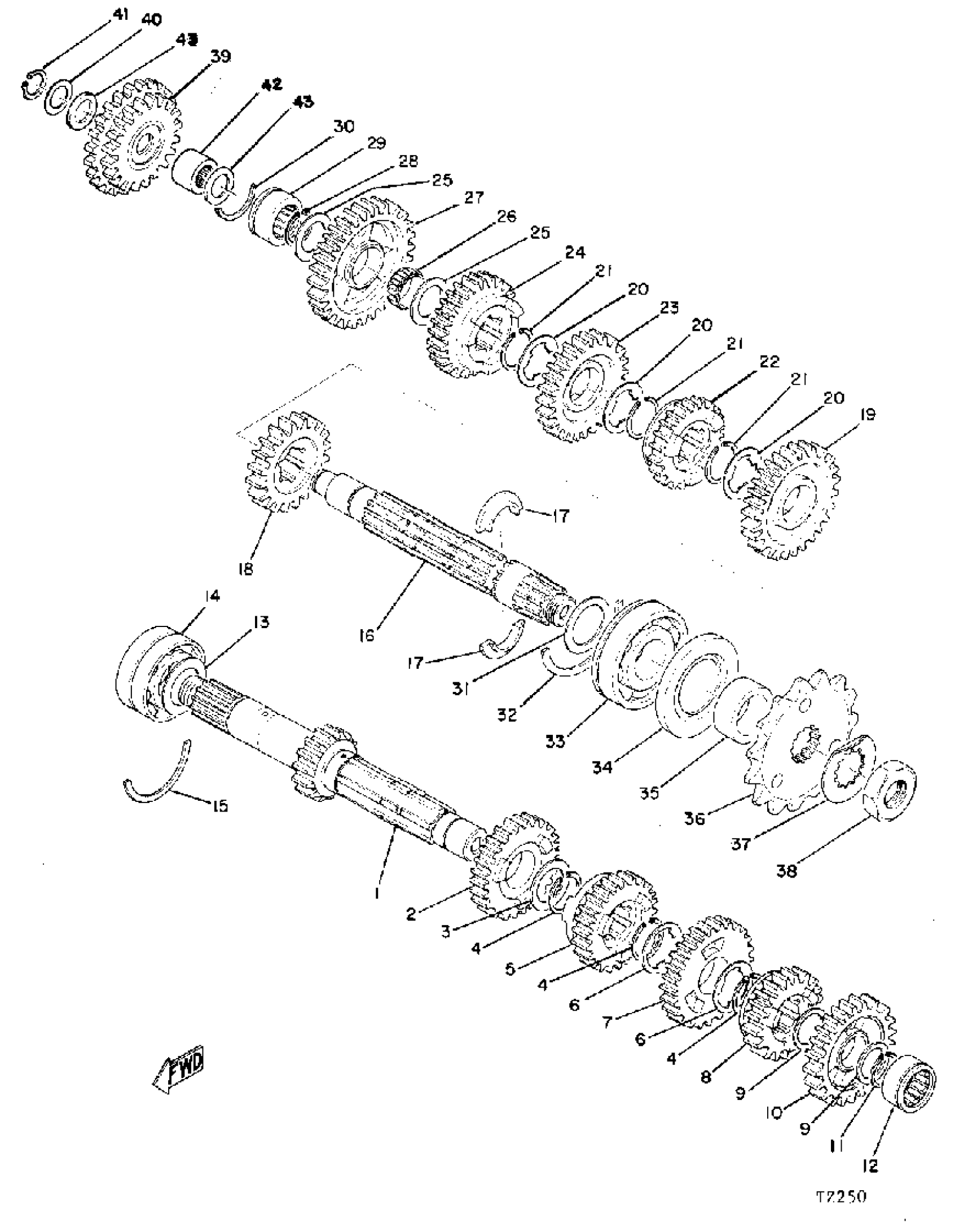

Find the part on the Transmission diagram for your 1972 Yamaha TR3 (TR3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha TR3 (TR3) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

328-17411-00-00

1
Out of stock

2

GEAR, 4TH PINION

328-17141-00-00

1
Out of stock

3

WASHER PLATE 152172260000

90201-25490-00

1
Out of stock

4

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

5

GEAR, 3RD PINION

328-17131-00-00

1
Out of stock

6

WASHER 328172160000

90209-21105-00

1
Out of stock

7

GEAR, 6TH PINION

328-17161-00-00

1
Out of stock

8

GEAR, 2ND PINION

328-17121-00-00

1
Out of stock

9

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

10

GEAR, 5TH PINION

328-17151-00-00

1
Out of stock

11

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

12

BRG,CYL-CAL ROLLER 36G NT

93311-22027-00

1
Out of stock

13

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

13

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

14

BRG,R-B 5205 52MM 190G KY

93305-20502-00

—
Out of stock

15

CIRCLIP (168)

93440-52009-00

—
Out of stock

16

AXLE, DRIVE

328-17421-01-00

1
Out of stock

17

SPACER, DRIVE AXLE

156-17429-00-00

1
Out of stock

18

GEAR, 5TH WHEEL

328-17251-00-00

1
Out of stock

19

GEAR, 2ND WHEEL

328-17221-00-00

1
Out of stock

20

WASHER 328172160000

90209-21105-00

1
Out of stock

21

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

22

GEAR, 6TH WHEEL

328-17261-00-00

1
Out of stock

23

GEAR, 3RD WHEEL

328-17231-00-00

1
Out of stock

24

GEAR, 1ST WHEEL

328-17211-00-00

1
Out of stock

25

WASHER PLATE 328171160000

90201-20276-00

—
Out of stock

26

BRG,CYL-CAL ROLLER 7G NT

93310-22057-00

—
Out of stock

27

GEAR, 1ST WHEEL

328-17211-00-00

1
Out of stock

28

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

29

BEARING, CYL.#11

93311-42045-00

1
Out of stock

30

CIR CLIP

278-17425-00-00

—
Out of stock

31

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

31

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

32

CIRCLIP

278-17424-01-00

—
Out of stock

33

BRG,R-B 6305 62MM 225G NK

93306-30504-00

—
Out of stock

34

OIL SEAL (35X62X6-371)

93102-35109-00

—
Out of stock

35

COLLAR(1AE)

90387-253M9-00

—

$34.15

In stock

36

SPROCKET, DRIVE

9383E-16105-00

1
Out of stock

36

SPROCKET, DRIVE

9383E-15083-00

1
Out of stock

36

SPROCKET, DRIVE

9383E-17122-00

1
Out of stock

37

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

38

NUT 152174630000

90179-18020-00

—
Out of stock

39

IDLE GEAR ASSEMBLY

278-15650-00-00

1
Out of stock

39

IDLE GEAR ASSEMBLY

328-15650-00-00

1
Out of stock

40

SHIM, MAIN AXLE (1.0)

164-17417-00-10

—
Out of stock

41

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

42

BEARING, CYLINDER.#10

93310-21564-00

1
Out of stock

43

WASHER, PLATE (4L0)

90201-154E8-00

—

$6.17

In stock
