1972 Yamaha TR3 (TR3) Shifter A Diagram

← All diagrams

Find the part on the Shifter A diagram for your 1972 Yamaha TR3 (TR3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

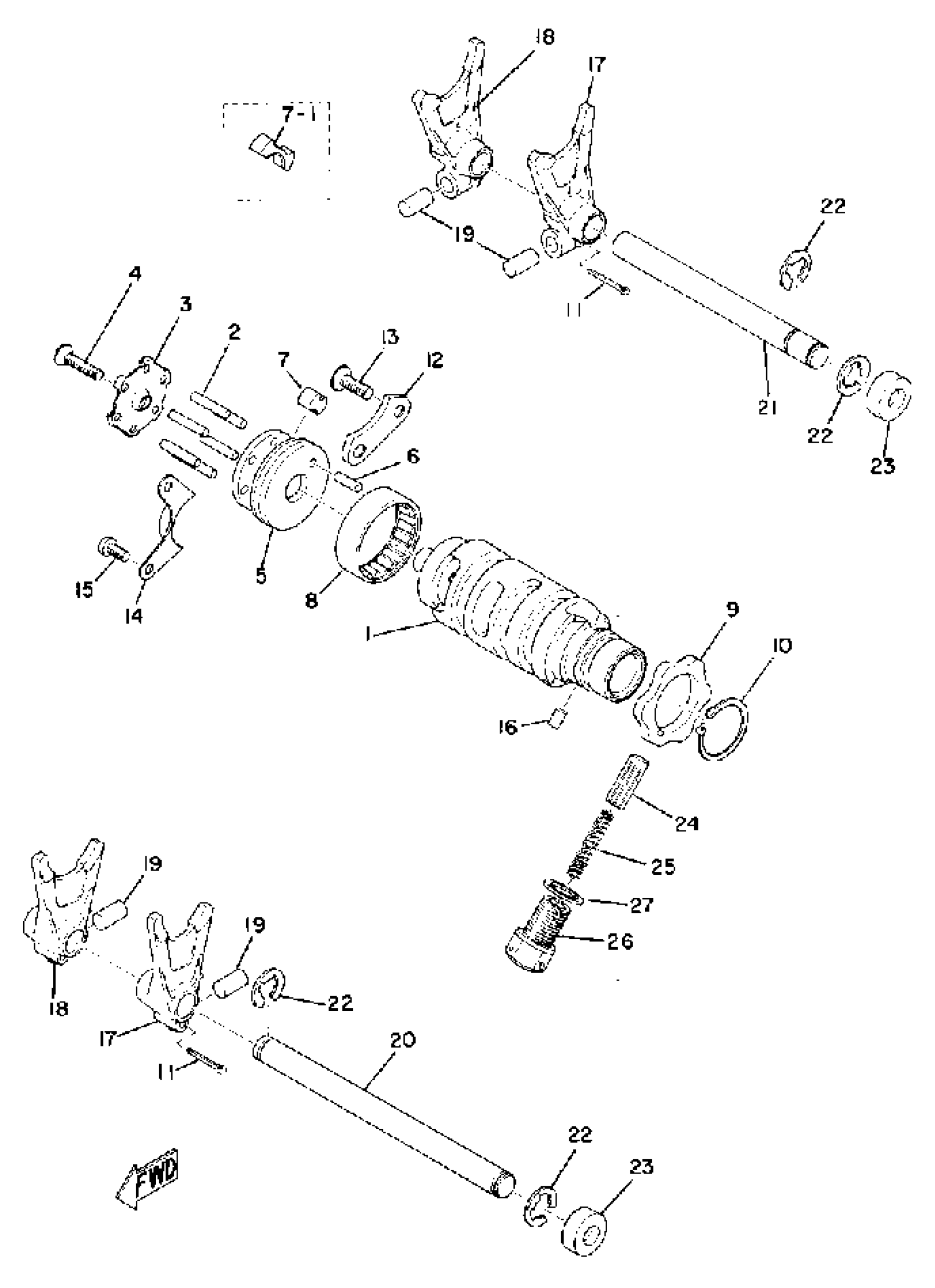

1972 Yamaha TR3 (TR3) Shifter A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

328-18540-00-00

1
Out of stock

2

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

3

. PLATE, SIDE 1

328-18561-00-00

1
Out of stock

4

. SCREW, FLAT HEAD (98701-05018-00)

98703-05018-00

1
Out of stock

5

SEGMENT

328-18185-00-00

1
Out of stock

6

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

7

PLATE, PAWL

328-18352-00-00

1
Out of stock

7

PLATE, PAWL

328-18352-10-00

1
Out of stock

8

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

9

PLATE, STOPPER

328-18141-00-00

1
Out of stock

10

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

11

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

12

PLATE, STOPPER 2

328-18562-00-00

1
Out of stock

13

SCREW, FLAT

98707-06014-00

1
Out of stock

14

GUIDE

328-18179-00-00

1
Out of stock

15

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

16

PIN, DOWEL (278)

93604-08071-00

—

$6.17

In stock

17

FORK, SHIFT 1

328-18511-01-00

1
Out of stock

18

FORK, SHIFT 2

328-18512-01-00

1
Out of stock

19

PIN, STRAIGHT

90250-08017-00

1
Out of stock

20

BAR, SHIFT FORK GUIDE 1

278-18531-00-00

1
Out of stock

21

BAR, SHIF FRK GDE 2

278-18535-00-00

1
Out of stock

22

CIRCLIP

99006-10600-00

—

$6.91

In stock

23

PLUG(3AJ)

90338-22207-00

—

$3.92

In stock

24

STOPPER, CAM

278-18547-02-00

1
Out of stock

25

SPRING COMPRESSION278185570000

90501-10062-00

—
Out of stock

26

SCREW, SPEC''L SHAPE

90149-14066-00

1
Out of stock

27

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock
