1972 Yamaha TR3 (TR3) Front Fork Diagram

← All diagrams

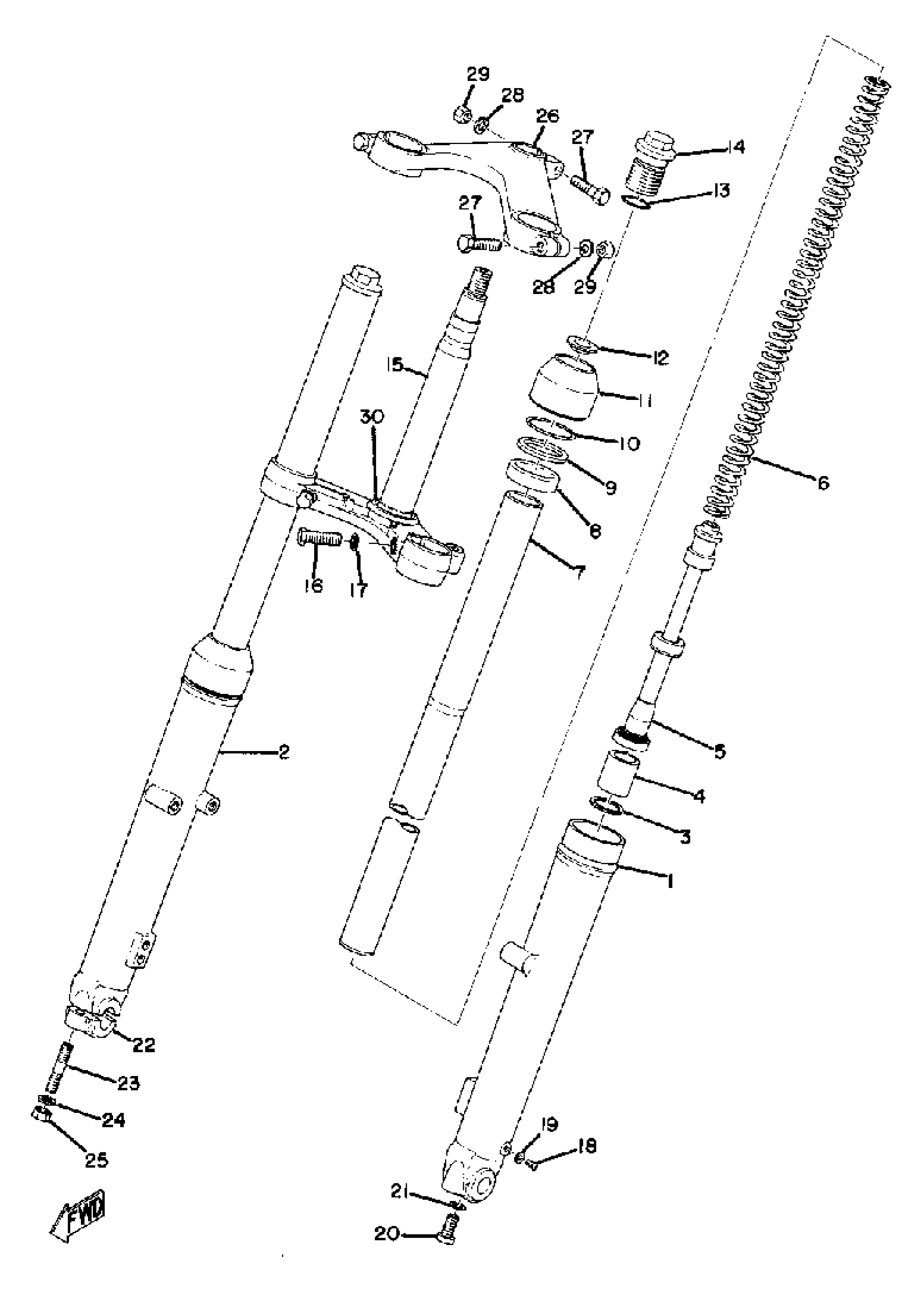

Find the part on the Front Fork diagram for your 1972 Yamaha TR3 (TR3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha TR3 (TR3) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 1

(328-23126-00-00)

1
Out of stock

2

TUBE, OUTER 2

(278-23136-50-00)

1
Out of stock

3

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

4

PISTON, FRONT FORK

(278-23171-50-00)

1
Out of stock

5

CYLINDER, FRTFRK

(328-23170-00-00)

1
Out of stock

6

SPRING, FRONT FORK

(328-23141-00-00)

1
Out of stock

7

TUBE, INNER 1

(328-23124-00-00)

1
Out of stock

8

OIL SEAL

584-23145-50-00

1

$52.72

In stock

9

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

10

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

11

. SEAL, DUST

292-23144-00-00

1
Out of stock

12

. SEAT, SPRING UPPER

278-23142-50-00

1
Out of stock

13

. GASKET

214-23114-00-00

1
Out of stock

14

BOLT, CAP

(291-23111-60-00)

1
Out of stock

15

UNDER BRACKET

(328-23340-00-33)

1
Out of stock

16

BOLT 1

122-23346-02-00

—

$6.25

In stock

17

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

18

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

19

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

20

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

21

GASKET

509-23158-L0-00

—

$14.34

In stock

22

HOLDER, AXLE

(278-23167-50-00)

1
Out of stock

23

BOLT, STUD (278)

90116-08261-00

—
Out of stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

NUT(6L2)

95333-08600-00

—

$3.20

In stock

26

CROWN, HANDLE

(240-23435-00-00)

1
Out of stock

27

BOLT

97014-08040-00

—

$5.26

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

NUT(6L2)

95333-08600-00

—

$3.20

In stock

30

SEAL, DUST

164-23462-00-00

—

$6.42

In stock
