1972 Yamaha TR3 (TR3) Steering - Front Fender Diagram

← All diagrams

Find the part on the Steering - Front Fender diagram for your 1972 Yamaha TR3 (TR3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

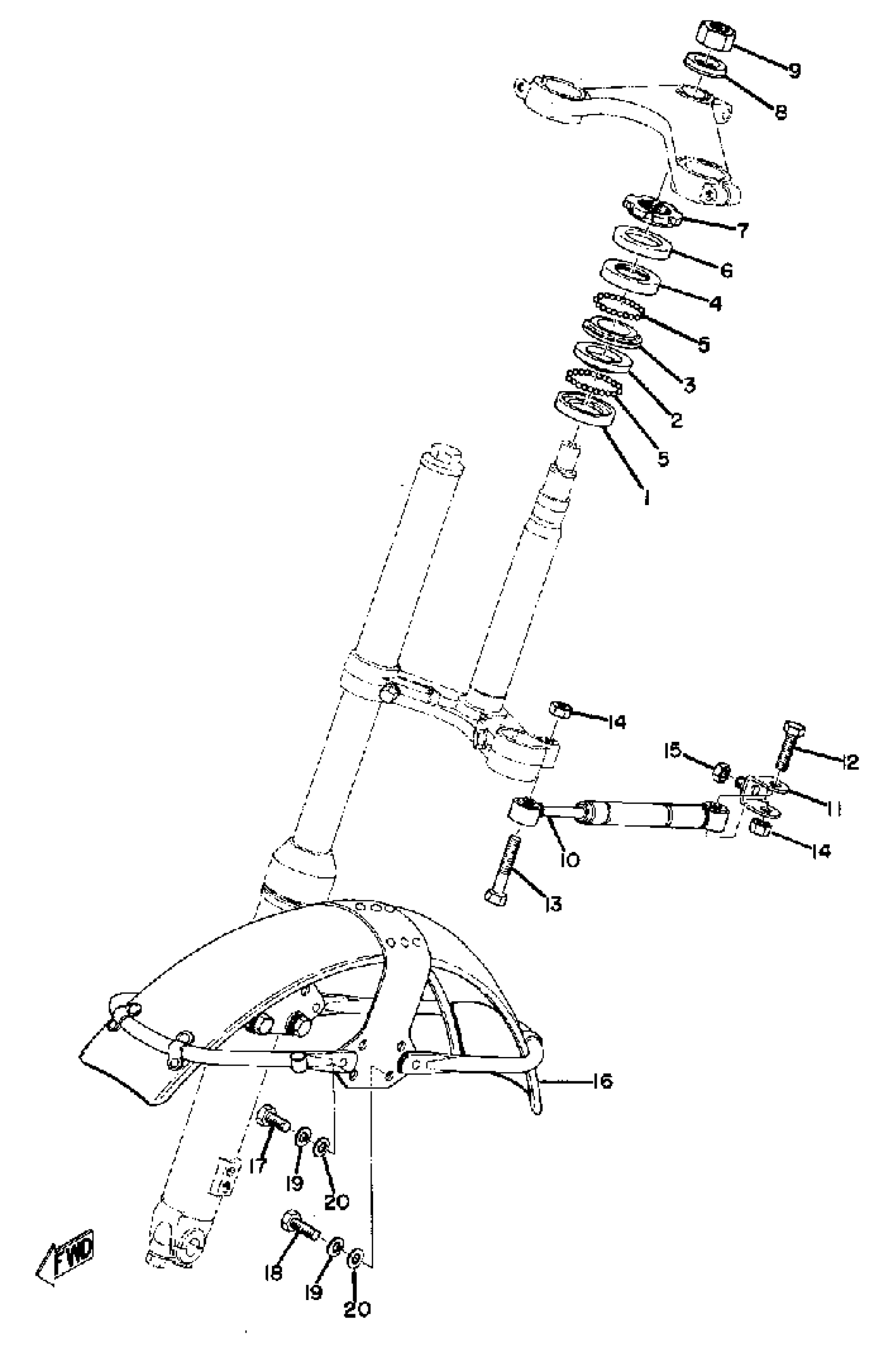

1972 Yamaha TR3 (TR3) Steering - Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

3

RACE, BALL 1

4FP-F3411-20-00

1

$8.70

In stock

4

RACE,BALL 2

4FP-F3412-10-00

—

$3.98

In stock

5

BALL

93501-04011-00

1
Out of stock

6

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

7

NUT

90179-25004-00

1

$20.78

In stock

8

WASHER, SPEC''L SHAP

90209-17057-00

1
Out of stock

9

NUT (95301-16600)

95303-16600-00

1
Out of stock

10

HDLBR SMY DMPR ASSEMBLY

(240-23490-00-00)

1
Out of stock

11

JOINT

59W-23491-00-00

1
Out of stock

12

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

13

BOLT

97013-08045-00

—
Out of stock

14

NUT, U

95617-08100-00

1

$6.78

In stock

15

. NUT

95380-08700-00

1

$3.07

In stock

16

FENDER, FRONT

(328-21510-00-01)

1
Out of stock

17

BOLT, HEAD W/HOLE

(90103-08013-00)

1
Out of stock

18

BOLT, FLAT HD.DRILL

(95201-08025-00)

1
Out of stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock
