1970 Yamaha TR2 (TR2) Starter Diagram

← All diagrams

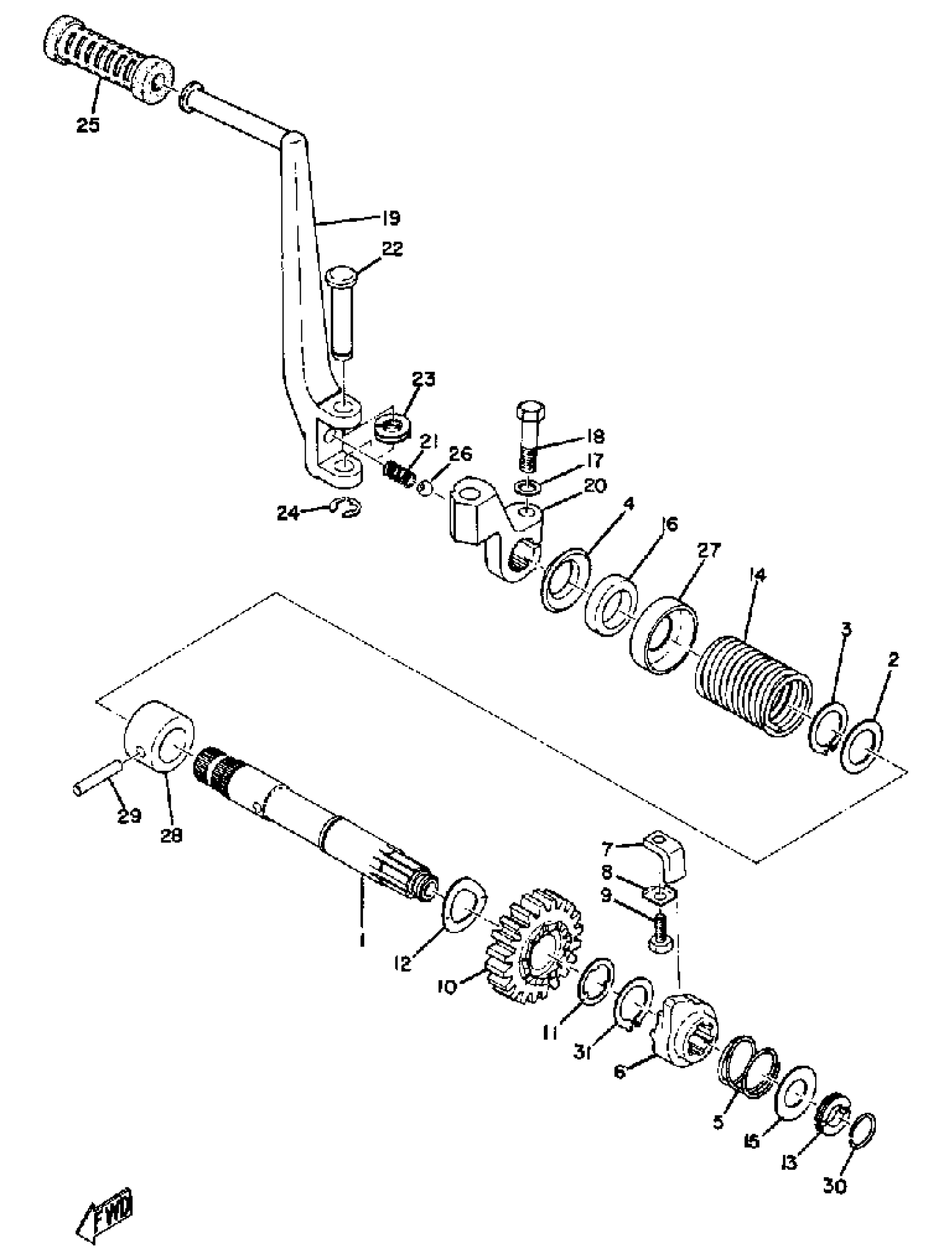

Find the part on the Starter diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha TR2 (TR2) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, KICK

(168-15661-00-00)

1
Out of stock

2

WASHER, PLATE 1832514700

90201-20269-00

1
Out of stock

3

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

4

SEAL

(168-15663-00-00)

1
Out of stock

5

SPRING COMPRESSION168156750000

90501-16107-00

—
Out of stock

6

WHEEL, RATCHET

(168-15671-00-00)

1
Out of stock

7

GUIDE, RATCHET WHL

(168-15674-03-00)

1
Out of stock

8

PLT, RCHET WHL GDE

(168-15655-00-00)

1
Out of stock

9

BOLT, STUD

(90116-06180-00)

1
Out of stock

10

GEAR, KICK

(239-15641-00-00)

1
Out of stock

11

WASHER, CLAW (168-15653-00)

90214-16009-00

1
Out of stock

12

WASHER, WAVE

(90206-20047-00)

1
Out of stock

13

HOLDER, KICK GEAR

137-15654-00-00

1
Out of stock

14

SPRING, TORSION

(90508-32058-00)

1
Out of stock

15

WASHER, PLAIN (1JL)

90201-155K6-00

—
Out of stock

16

OIL SEAL (20X30X7-371)

93102-20108-00

—

$9.17

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

18

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

19

UNAVAILABLE IN PRICE BOOK

17-01561-10-10

1
Out of stock

20

KICK CRANK ASSEMBLY (168-15621-01)

2G2-15620-00-00

1
Out of stock

21

SPRING, COMPRESSION

(90501-15091-00)

1
Out of stock

22

PIN, KICK CRANK

(168-15624-00-00)

1
Out of stock

23

SPRING,KICK CRANK

214-15625-00-00

1
Out of stock

24

CIRCLIP (137)

93430-08007-00

—

$6.17

In stock

25

COVER, KICK LEVER

156-15618-01-00

—

$6.43

In stock

26

BALL

93505-16006-00

—

$2.22

In stock

27

GUIDE, SPRING

(168-15664-00-00)

1
Out of stock

28

BUSH, KICK AXLE

(168-15682-00-00)

1
Out of stock

29

PIN, DOWEL (168)

93606-20044-00

—

$2.12

In stock

30

CLIP

(168-15673-00-00)

1
Out of stock

31

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock
