1970 Yamaha TR2 (TR2) Magneto Diagram

← All diagrams

Find the part on the Magneto diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

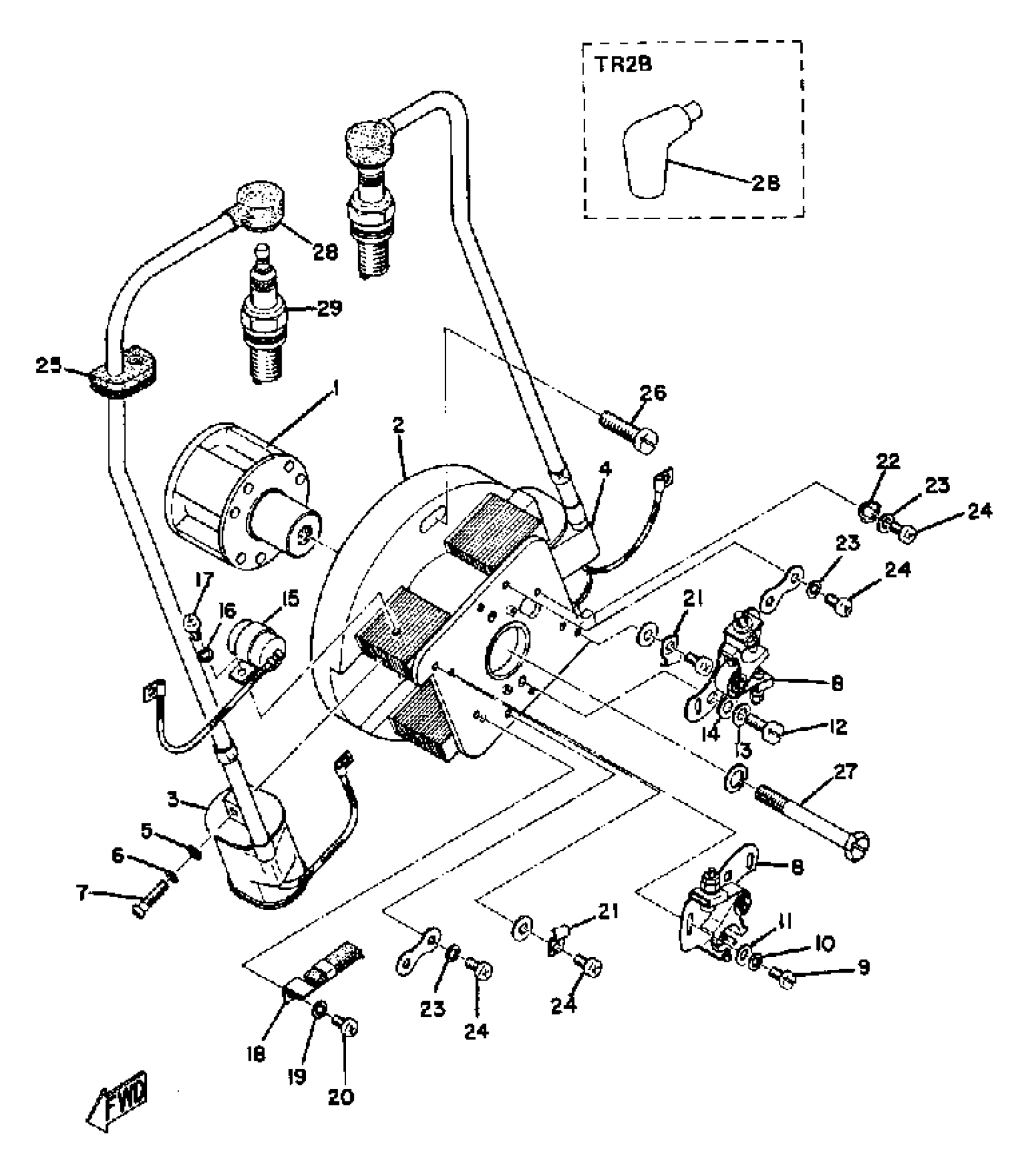

1970 Yamaha TR2 (TR2) Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAGNETO ASSEMBLY

(239-81500-10-00)

1
Out of stock

1

ROTOR ASSEMBLY

(239-81550-10-00)

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

COIL, IGNITION 1

(239-81511-10-00)

1
Out of stock

4

COIL, IGNITION 2

(239-81512-10-00)

1
Out of stock

5

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

6

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

7

SCREW, PAN HEAD

98517-04020-00

1

$6.18

In stock

8

CONTACT BRKR ASSEMBLY 1

(183-81521-10-00)

1
Out of stock

9

SCREW 1

(144-81523-10-00)

1
Out of stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

12

SCREW 2

(144-81524-10-00)

1
Out of stock

13

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

14

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

15

. CONDENSER

144-81526-10-00

1
Out of stock

16

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

17

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

18

LUBRICATOR

(239-81531-10-00)

1
Out of stock

19

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

20

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

21

CLAMP 1

(239-81528-10-00)

1
Out of stock

22

PLATE, TIMING

(132-81532-10-00)

1
Out of stock

23

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

24

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

25

GROMMET

(239-81518-10-00)

1
Out of stock

26

SCREW, STATOR

(239-81535-10-00)

1
Out of stock

27

BOLT

(177-81552-10-00)

1
Out of stock

28

PLUG CAP ASSEMBLY

294-82370-00-00

1
Out of stock

28

PLUG CAP ASSY

56J-82370-00-00

—

$56.63

In stock

29

SPARK PLUG B9EN

(94701-00016-00)

1
Out of stock

29

SPARK PLUG B10EN

(94701-00017-00)

1
Out of stock

29

SPARK PLUG B11EN

(94701-00018-00)

1
Out of stock
