1970 Yamaha TR2 (TR2) Fairing Diagram

← All diagrams

Find the part on the Fairing diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

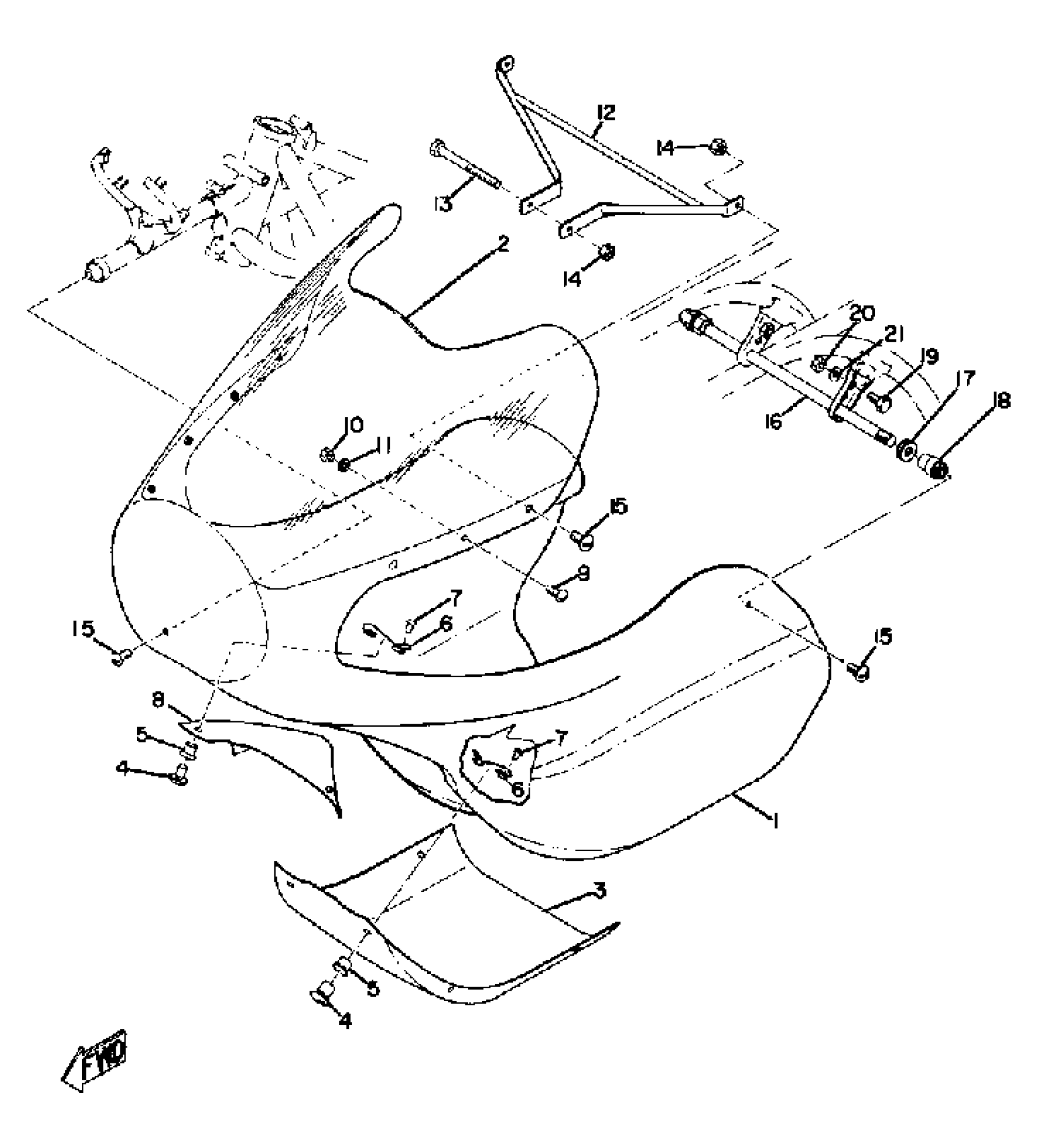

1970 Yamaha TR2 (TR2) Fairing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING ASSEMBLY

(328-28350-00-02)

1
Out of stock

2

TZ750E WNDSHD ONLY

(ACC-11110-77-04)

1
Out of stock

3

COVER, LOWER

(240-28385-00-00)

1
Out of stock

4

. HEAD

240-28386-00-00

1
Out of stock

5

RIVET

240-28389-00-00

1
Out of stock

6

SPRING

(240-28388-00-00)

1
Out of stock

7

RIVET, ROUND HEAD

(90260-02002-00)

1
Out of stock

8

COVER, UPPER

(240-28384-00-00)

1
Out of stock

9

SCREW, ROUND HEAD

90140-04012-00

1
Out of stock

10

NUT(6TA)

95307-04600-00

1

$6.69

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

STAY 2

(240-28357-00-33)

1
Out of stock

13

BOLT,HEXAGON

97027-06075-00

1
Out of stock

14

NUT, NYLON

95707-06300-00

1

$3.20

In stock

15

SCREW, ROUND HEAD(55K)

90150-06021-00

1

$6.46

In stock

16

STAY 3

(240-28358-00-33)

1
Out of stock

17

NUT, SPEC''L SHAPE

(90179-14145-00)

1
Out of stock

18

DAMPER

240-28371-00-33

1
Out of stock

19

BOLT, FLAT HD.DRILL

(95201-08015-00)

1
Out of stock

20

NUT, SPECIAL SHAPE

90179-08288-00

1
Out of stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
