1970 Yamaha TR2 (TR2) Frame Diagram

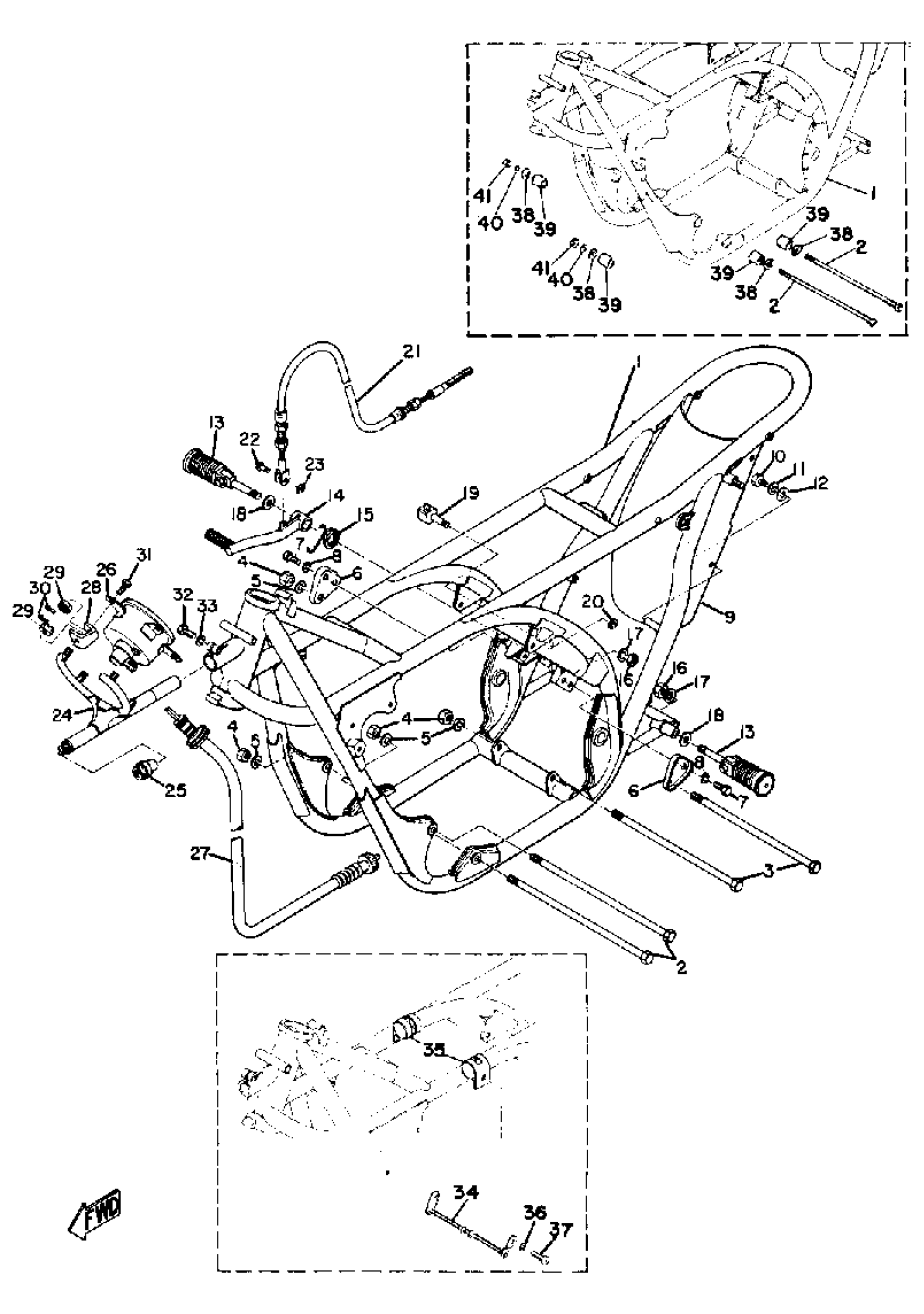

Find the part on the Frame diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME
(239-21110-00-33)
1
. COVER, FOOTREST
240-27413-00-00
1
FRAME
(294-21110-00-33)
2
BOLT, ENG MNTNG 1
(294-21481-00-00)
2
BOLT, DOME HEAD
90106-10029-00
3
BOLT, WASHER BASED
(90105-10019-00)
4
NUT, SPEC''L SHAPE
(90179-10119-00)
6
BRACKET, REAR UPR 1
(239-21425-00-33)
7
BOLT, FLAT HD.DRILL
(95201-08015-00)
9
FENDER, REAR
(239-21610-00-00)
10
BOLT, COWLING
(145-28374-00-00)
13
FRT FOOTREST ASY L
5F6-27410-10-00
14
PEDAL, BRAKE
(240-27211-00-91)
14
PEDAL, BRAKE
(240-27211-10-91)
15
SPRING, TORSION
(90508-23028-00)
15
SPRING, TORSION
(90508-23029-00)
16
NUT, SPEC''L SHAPE
(90179-10119-00)
19
HOLDER, CABLE
(144-21161-00-00)
21
GUIDE, SIDE STAND
(240-27351-00-00)
21
GUIDE, SIDE STAND
(240-27351-10-00)
22
PIN, SPEC''L SHAPE
(90249-06074-00)
24
STAY 1
(240-28356-00-33)
25
DAMPER
240-28371-00-33
26
TACHOMETER ASSEMBLY
(239-83540-00-00)
27
TACHOMETER CABLE
(145-83560-00-00)
28
DAMPER, BRACKET
143-83543-00-00
29
NUT, SLTED
95307-05900-00
30
. PIN, COTTER
91401-10015-00
31
BOLT, WITH HOLE
(90102-05012-00)
34
BRACKET
(294-21158-00-00)
35
BRACKET, PROTC FRT
(214-21433-00-33)
41
NUT, SPECIAL SHAPE
90179-08288-00
