1970 Yamaha TR2 (TR2) Crankshaft-Piston Diagram

← All diagrams

Find the part on the Crankshaft-Piston diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

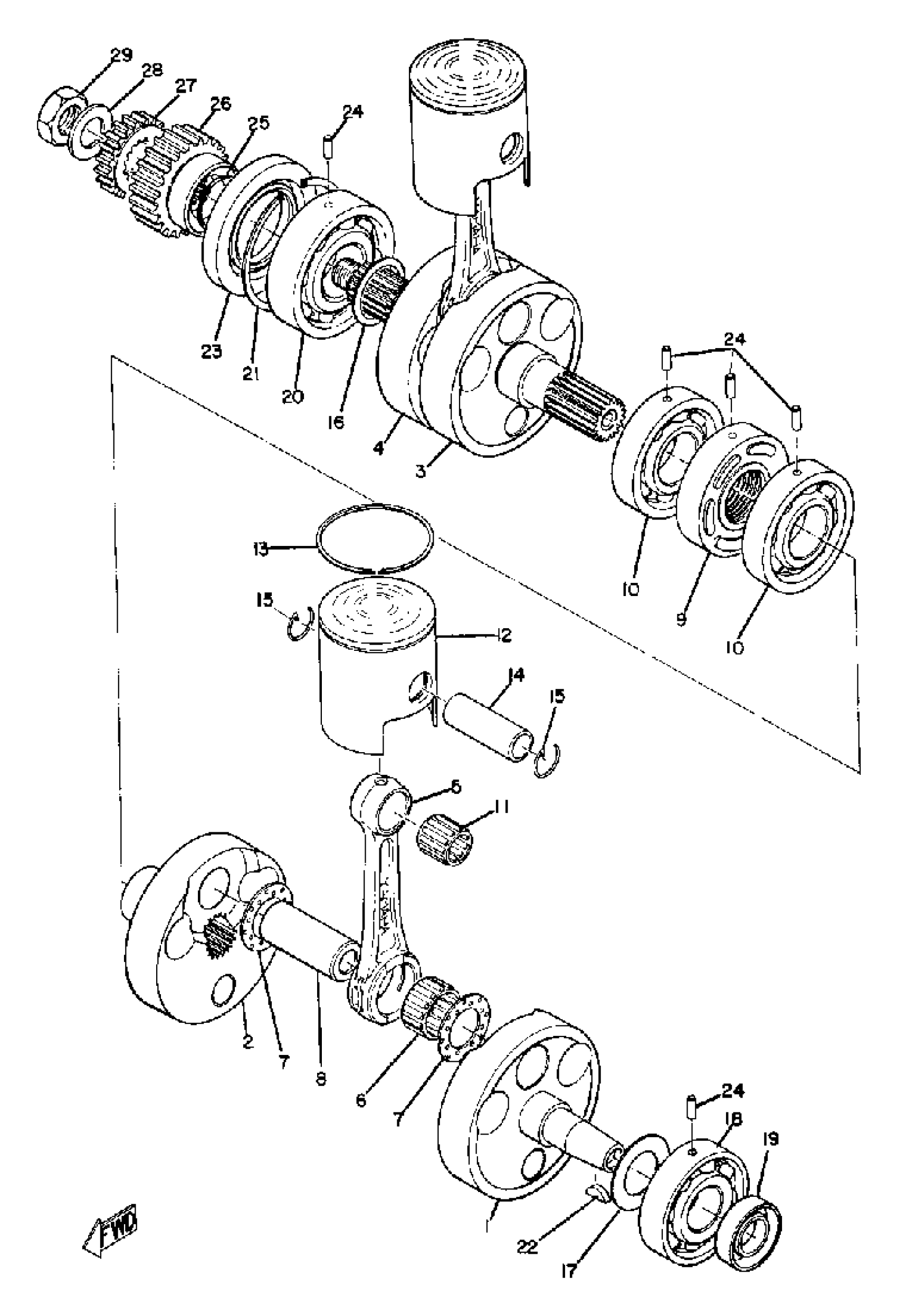

1970 Yamaha TR2 (TR2) Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(239-11400-00-00)

1
Out of stock

1

CRANK 1

(239-11412-00-00)

1
Out of stock

2

CRANK 2

(239-11422-00-00)

1
Out of stock

3

CRANK 3

(239-11432-00-00)

1
Out of stock

4

CRANK 4

(239-11442-00-00)

1
Out of stock

5

ROD, CONNECTING

(239-11651-00-00)

1
Out of stock

6

BEARING

93310-424E8-00

1

$19.49

In stock

7

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

8

. PIN, CRANK 1

168-11681-00-00

1
Out of stock

9

SEAL, LABYRINTH 1

(168-11515-00-00)

1
Out of stock

10

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

11

1

$32.87

In stock

12

PISTON STD

(239-11631-00-96)

1
Out of stock

12

PISTON STD

(294-11631-00-96)

1
Out of stock

13

RING, PISTON STD

(294-11611-00-00)

1
Out of stock

14

PIN, PISTON

168-11633-00-00

1
Out of stock

15

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

16

SHIM, CRANK 1

(168-11561-00-03)

1
Out of stock

17

SHIM, CRANK 2

(156-11562-00-05)

1
Out of stock

18

BEARING

(93306-30505-00)

1
Out of stock

19

OIL SEAL, SW-TYPE

93103-20046-00

1
Out of stock

20

—

$68.89

In stock

21

CIRCLIP, OUTER

93440-78011-00

1
Out of stock

22

KEY,WOODRUFF

90280-04005-00

1
Out of stock

23

OIL SEAL, SW-TYPE (SW42-78-10)

93103-42047-00

1
Out of stock

24

PIN,DOWEL (168)

93604-12037-00

—
Out of stock

25

O-RING (437)

93210-24235-00

—

$5.72

In stock

26

GEAR, PRI DRIVE

(239-16111-00-00)

1
Out of stock

27

GEAR, DRIVE

(168-13188-00-00)

1
Out of stock

28

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

29

NUT

90170-16425-00

—
Out of stock
