1970 Yamaha TR2 (TR2) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1970 Yamaha TR2 (TR2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

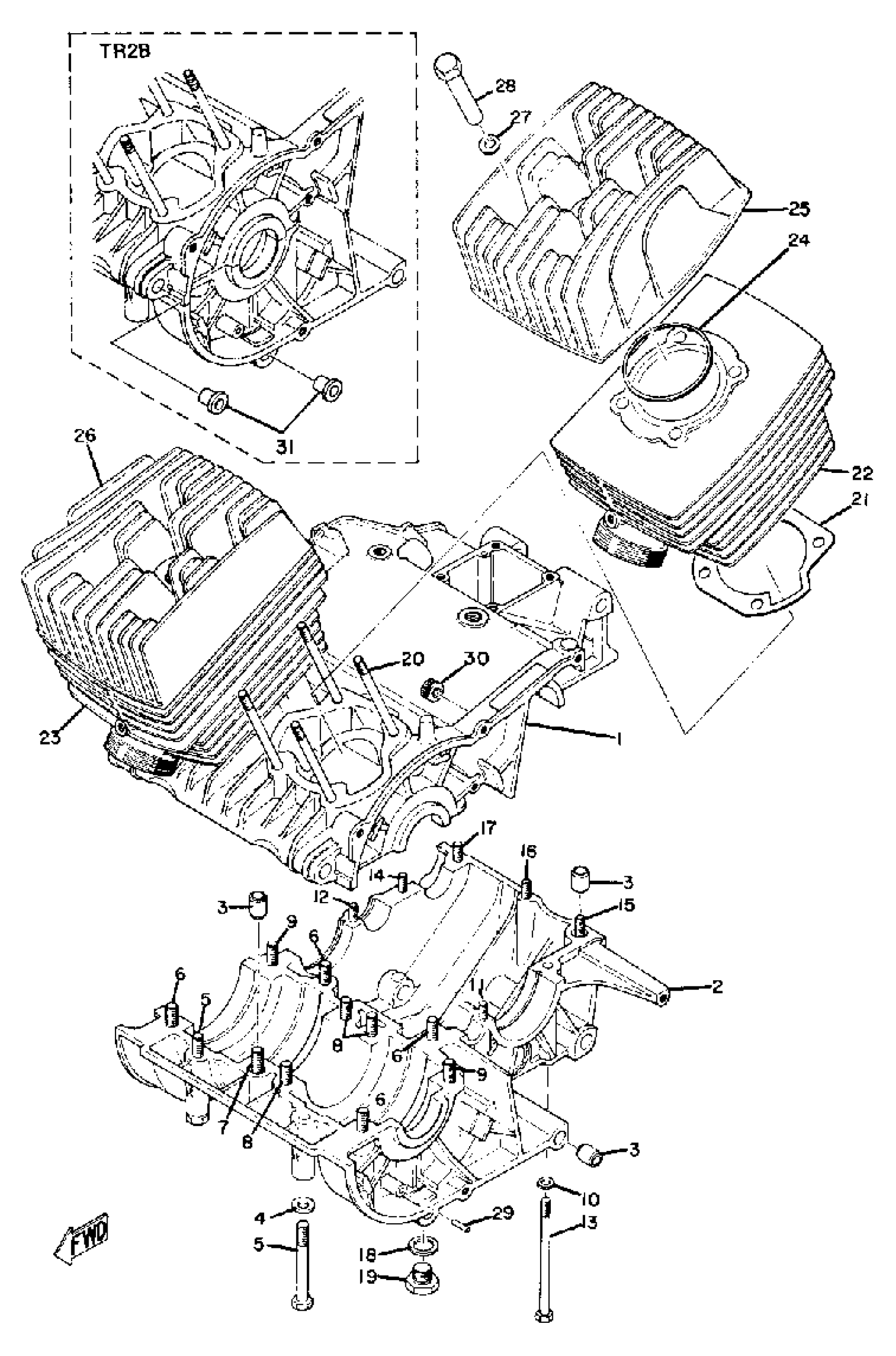

1970 Yamaha TR2 (TR2) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(239-15100-00-00)

1
Out of stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

5

BOLT

97021-08065-00

1
Out of stock

6

BOLT,HEXAGON

97013-08085-00

1
Out of stock

7

BOLT, FLANGE(8BT)

95817-08095-00

1
Out of stock

8

BOLT (6K8)

97013-08075-00

1

$5.66

In stock

9

BOLT, HEXAGON

97027-08100-00

1

$4.55

In stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

BOLT, HEXAGON

(97321-06085-00)

1
Out of stock

12

BOLT, HEXAGON

97080-06100-00

1

$8.70

In stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06095-00

—
Out of stock

14

BOLT(3GG)

97017-06090-00

1
Out of stock

15

BOLT, HEXAGON

(97321-06105-00)

1
Out of stock

16

BOLT(62J)

97013-06070-00

—

$3.37

In stock

17

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

1
Out of stock

18

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

19

PLUG,STRAIGHT SCRW

90340-14033-00

1
Out of stock

19

PLUG, STRAIGHT SCREW

90340-14119-00

1
Out of stock

20

BOLT, STUDHOLDING

90116-08067-00

1
Out of stock

21

GASKET, CYLINDER

168-11351-10-00

1
Out of stock

22

CYLINDER 1

(239-11311-00-00)

1
Out of stock

22

CYLINDER 1

(294-11311-00-00)

1
Out of stock

23

CYLINDER 2

(239-11321-00-00)

1
Out of stock

23

CYLINDER 2

(294-11321-00-00)

1
Out of stock

24

GASKET

(90430-61060-00)

1
Out of stock

24

GASKET

(90430-61061-00)

1
Out of stock

25

HEAD, CYLINDER 1

(239-11111-00-00)

1
Out of stock

26

HEAD, CYLINDER 2

(239-11121-00-00)

1
Out of stock

27

WASHER PLATE 278111750000

90201-12362-00

—

$6.42

In stock

28

NUT, SPEC''L SHAPE

90179-08026-00

1
Out of stock

29

PIN, DOWEL

93603-14026-00

—
Out of stock

30

GROMMET

(239-15365-00-00)

1
Out of stock

31

SPACER

(90560-08100-00)

1
Out of stock
Crankcase Cover →
