2000 Ski-Doo Touring E Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 2000 Ski-Doo Touring E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

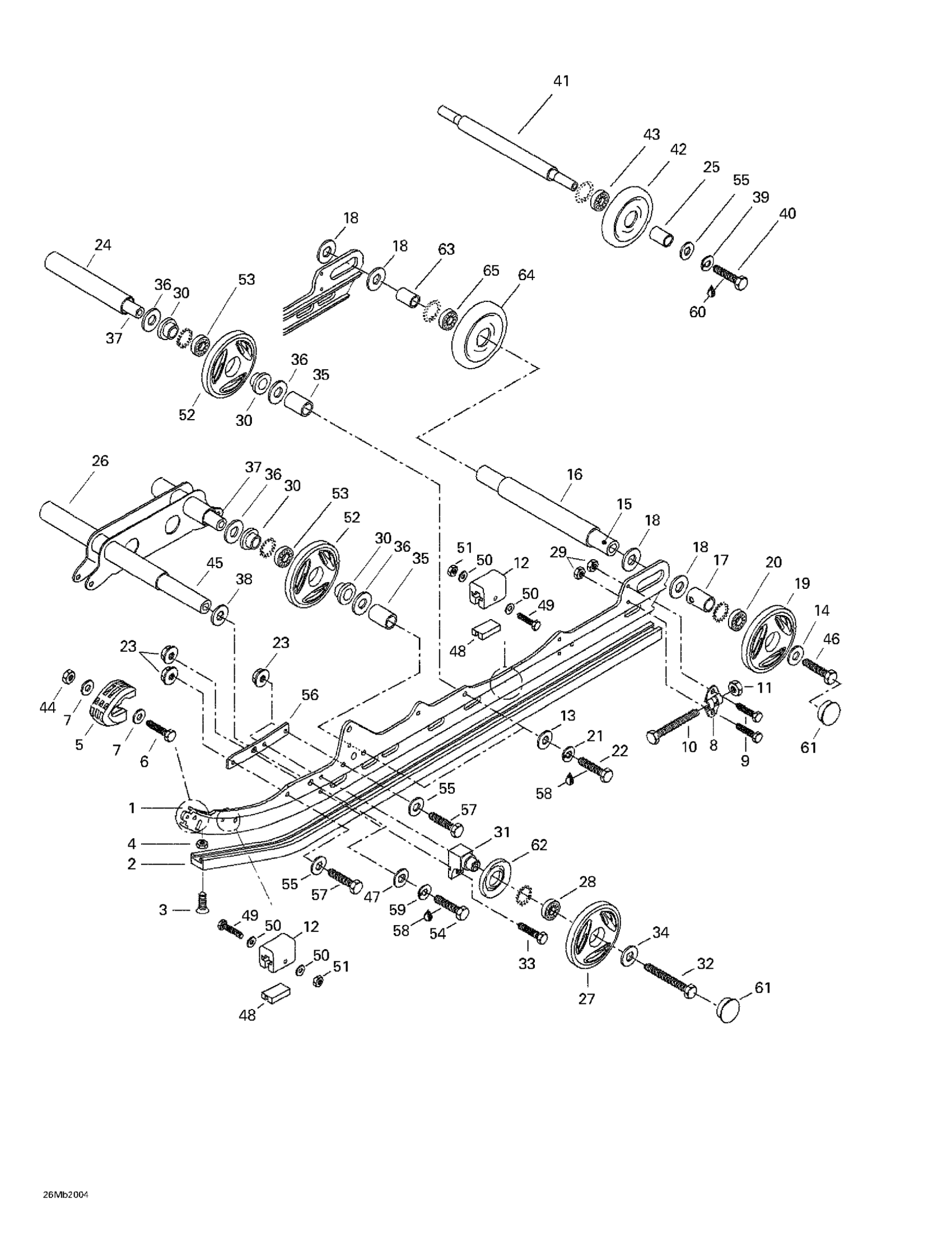

2000 Ski-Doo Touring E Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Runner

503188994

—
Out of stock

2

RUNNER SHOE - Call your local BRP dealership

560103500

—
Out of stock

3

2

$1.92

In stock

4

Elastic Stop Nut M6

232561414

2
Out of stock

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

—
Out of stock

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

—
Out of stock

7

Washer | DS 650 X

391301600

4
Out of stock

8

Tensioner

503155300

—
Out of stock

9

Hex. Screw M6 X 20 | XT Models

207162044

4
Out of stock

10

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

—
Out of stock

11

Elastic Locking Nut M10 X 1.5

233601416

2
Out of stock

12

Rubber Stopper

570063000

—
Out of stock

13

Flat Washer 10 mm

234001410

4
Out of stock

14

Washer

503183300

2

$5.68

In stock

15

Rear Axle

503167900

1

$129.20

In stock

16

CENTRAL SPACER - Call your local BRP dealership

503183000

—
Out of stock

17

Outer Spacer

503189809

2

$15.35

In stock

18

Washer

503180400

4

$3.37

In stock

19

Wheel 165 (Black) | Includes 19 - 20.

503189475

—
Out of stock

20

Ball Bearing

293350115

2
Out of stock

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

—
Out of stock

22

4

$1.42

In stock

23

Hex. Flange Elastic Nut M8

233281414

8
Out of stock

24

Spacer

503153100

—
Out of stock

25

Spacer

572048300

—
Out of stock

26

Shock Support

503189466

—
Out of stock

27

Wheel 139 | Includes 30 - 31.

503188944

—
Out of stock

28

Ball Bearing

293350115

2
Out of stock

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

4
Out of stock

30

Labyrinth Shaft

503189314

—
Out of stock

31

SUPPORT - Call your local BRP dealership

503190389

—
Out of stock

32

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

—
Out of stock

33

Hex. Screw M8 X 25

207182544

2

$0.74

In stock

34

Washer

503183100

2

$3.08

In stock

35

SPACER - Call your local BRP dealership

503188800

—
Out of stock

36

WASHER - Call your local BRP dealership

503154000

—
Out of stock

37

WHEEL AXLE - Call your local BRP dealership

503188700

—
Out of stock

38

Hardened Washer

503175400

—
Out of stock

39

Lock Washer 8 mm

234181401

2
Out of stock

40

Hex. Screw M8 X 30

207183044

2

$0.92

In stock

41

Wheel Support Axle

503153600

—
Out of stock

42

Idler Wheel | Includes 48 - 49.

572043500

2
Out of stock

43

Ball Bearing

405404600

2
Out of stock

44

Elastic Stop Nut M5

232551414

2
Out of stock

45

Lower Axle

503174900

—
Out of stock

46

Hex. Screw With Nylon

250000019

2
Out of stock

47

Flat Washer 12 mm

234021410

2
Out of stock

48

4

$5.25

In stock

49

—

$1.31

In stock

50

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

—
Out of stock

51

Elastic Stop Nut M5

232551414

4
Out of stock

52

Wheel 139 mm Ass'y

503190798

4
Out of stock

53

Ball Bearing

293350115

4
Out of stock

54

Hex. Screw M12 x 40

207124044

—
Out of stock

55

Flat Washer 8 mm

234081410

6
Out of stock

56

Reinforcement

503189058

—
Out of stock

57

Hex. Screw M8 X 30

207183044

4

$0.92

In stock

58

Loctite 271, 10 ml

293800005

1
Out of stock

59

Lock Washer 12 mm

234120602

—
Out of stock

60

Loctite 243, 10 ml

293800060

1
Out of stock

61

Wheel Cap

570063600

4
Out of stock

62

LABYRINTH SEAL - Call your local BRP dealership

572089000

—
Out of stock

63

Inner Spacer

503182900

1

$10.18

In stock

64

1

$49.97

In stock

65

Ball Bearing

293350115

1
Out of stock
