2000 Ski-Doo Touring E Front Suspension AND SKI Diagram

← All diagrams

Find the part on the Front Suspension AND SKI diagram for your 2000 Ski-Doo Touring E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

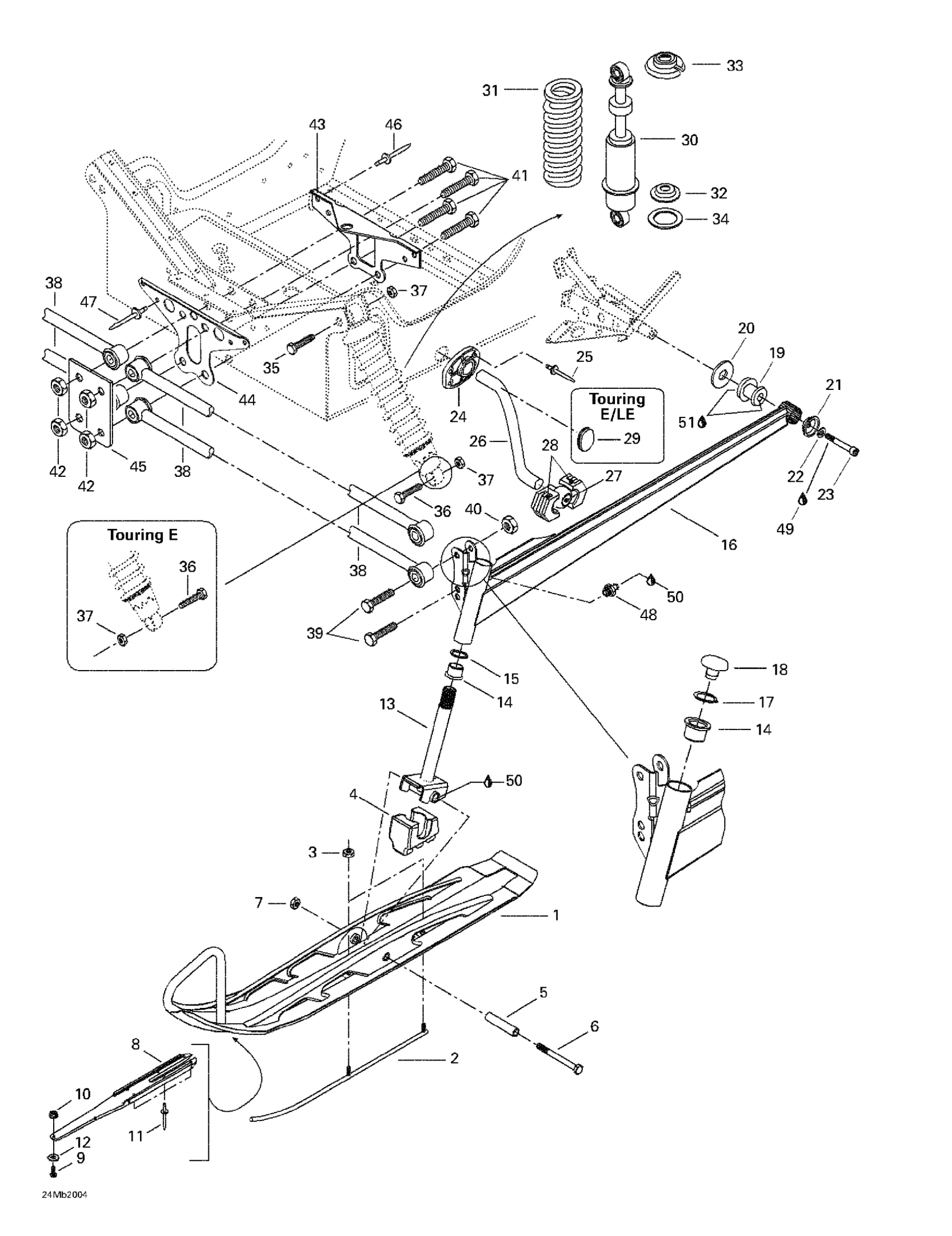

2000 Ski-Doo Touring E Front Suspension AND SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Ski

505070370

—
Out of stock

2

Ski Weld Runner (C/U) | 380 F.

505070428

—
Out of stock

2

Carbide Weld Runner | 500 F.

860502200

—
Out of stock

3

Hex. Elastic Stop Nut M8

232581414

4
Out of stock

4

Ski Stopper

505070324

—
Out of stock

5

Spacer

505070323

—
Out of stock

6

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

—
Out of stock

7

Elastic Locking Nut M10 X 1.5

233601416

2
Out of stock

8

Proactive Control

505070087

—
Out of stock

9

Socket Screw M5 X 16

205451646

—
Out of stock

10

Hex. Flange Elastic Nut M5

233251414

2
Out of stock

11

Pop Rivet 3/16"

390402200

12
Out of stock

12

Flat Washer 6 mm

234061410

2
Out of stock

13

Ski Leg

505070321

—
Out of stock

14

Cushion

505070003

4
Out of stock

15

WASHER - Call your local BRP dealership

505070004

—
Out of stock

16

RH Swing Arm

505070374

—
Out of stock

LH Swing Arm

505070375

—
Out of stock

RH Swing Arm (Black)

505070378

—
Out of stock

LH Swing Arm (Black)

505070379

—
Out of stock

17

CIRCLIP - Call your local BRP dealership

371910400

—
Out of stock

18

Cap

572091300

2
Out of stock

19

DAMPER - Call your local BRP dealership

570062200

—
Out of stock

20

WASHER - Call your local BRP dealership

503146700

—
Out of stock

21

Cup | Package Hunter

705007171

2
Out of stock

22

Lock Washer 8 mm

234181401

2
Out of stock

23

Socket Head Screw M8 X 25

205082544

2
Out of stock

24

BUSHING - Call your local BRP dealership

505070139

—
Out of stock

25

Pop Rivet 3/16"

390402300

8
Out of stock

26

Stabilisator | Touring 500 F.

505070069

—
Out of stock

27

Ball Joint | Touring 500 F.

505070068

—
Out of stock

28

Block Sliding

572069800

—
Out of stock

29

Black, Nylon Cap

414916600

2
Out of stock

30

Shock

505070016

—
Out of stock

Shock | Touring 500 F.

505070395

—
Out of stock

31

Shock Spring (Black) | Formula DLX 500 LC.

415035900

—
Out of stock

32

GUIDE_SPRING - Call your local BRP dealership

503165100

—
Out of stock

Spring Guide

503187500

2
Out of stock

33

Spring Stopper

706200881

2
Out of stock

34

WASHER - Call your local BRP dealership

503184400

—
Out of stock

WASHER - Call your local BRP dealership

505070401

—
Out of stock

35

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

—
Out of stock

36

Hex. Screw M10 X 55

207005544

2
Out of stock

37

Elastic Locking Nut M10 X 1.5

233601416

4
Out of stock

38

Arm Ass'y (40") | Formula S. Formula DLX 380.

580649600

—
Out of stock

Arm Ass'y (42")

580649700

—
Out of stock

39

Hex. Screw M12 x 50

207025044

—
Out of stock

40

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

—
Out of stock

41

Hex. Screw M12 x 100

230020044

—
Out of stock

42

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

—
Out of stock

43

Rear Link Plate

517254900

—
Out of stock

44

Front Link Plate

517254800

—
Out of stock

45

Support

518306700

—
Out of stock

46

Not Available As Spare Part - Friction Washer

—
Out of stock

47

Rivet pop 1/4"

390404900

—
Out of stock

48

Grease Fitting

408200700

2
Out of stock

49

Loctite 243, 10 ml

293800060

1
Out of stock

50

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

—
Out of stock

51

Grease, Super Lube

293550030

1
Out of stock
