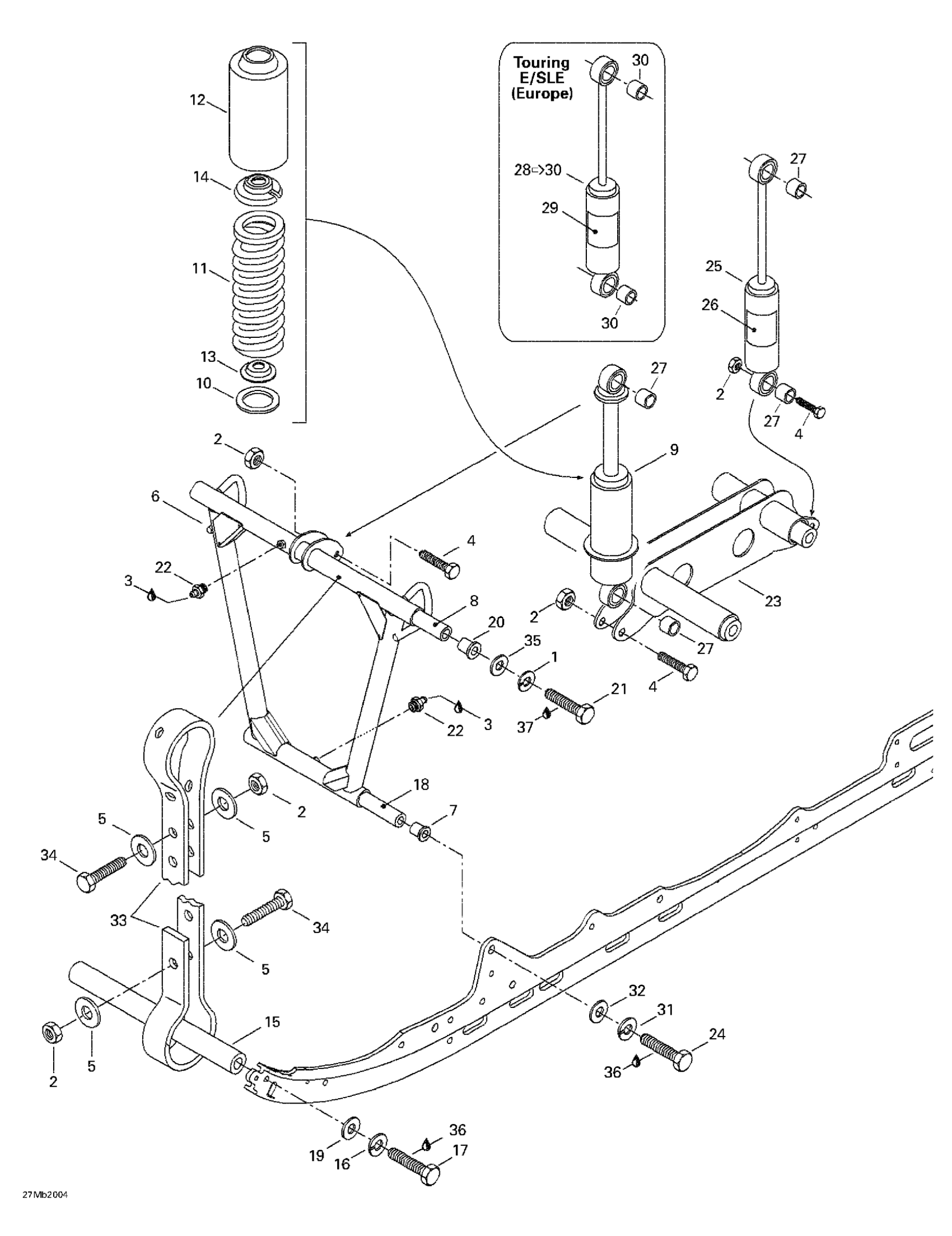

Ski-Doo Touring E, 2000 Front Arm Diagram
#
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Elastic Stop Nut M8
232581414
Unavailable
3
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
4
Hex. Screw M8 X 40
207084044
Unavailable
5
WASHER - Call your local BRP dealership
517078700
Unavailable
6
Welded Front Arm
503189311
Unavailable
7
CUSHION - Call your local BRP dealership
503189323
Unavailable
8
SHAFT - Call your local BRP dealership
503190387
Unavailable
9
Shock | Formula S.
503189174
Unavailable
SHOCK - Call your local BRP dealership
503189331
Unavailable
WASHER - Call your local BRP dealership
505070401
Unavailable
11
Spring
415069900
Unavailable
Spring | Touring 500 F.
415103600
Unavailable
12
Protector
503193663
Unavailable
Spring Guide
503187500
Unavailable
16
Lock Washer 8 mm
234181401
Unavailable
17
Hex. Screw M8 X 30
207183044
Unavailable
18
SHAFT - Call your local BRP dealership
503189313
Unavailable
19
Flat Washer 8 mm
234081410
Unavailable
21
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
22
Grease Fitting
408200700
Unavailable
23
Shock Support
503189466
Unavailable
24
HEX. SCREW M12 X 60 - Call your local BRP dealership
207026044
Unavailable
25
Rear Shock | Touring 380 F.
503188902
Unavailable
Rear Shock | Touring 500 F.
503188907
Unavailable
26
HPG Decal (Europe)
516000182
Unavailable
27
Bushing
414936000
Unavailable
28
Rear Shock Kit (HPG) | Includes 34 - 36.
860305200
Unavailable
29
HPG Decal (Europe)
516000182
Unavailable
30
CUSHION - Call your local BRP dealership
414802600
Unavailable
31
Lock Washer 12 mm
234120602
Unavailable
33
STOPPER STRAP - Call your local BRP dealership
503190782
Unavailable
34
Hex. Screw M8 X 25
207182544
Unavailable
35
Flat Washer 10 mm
234001410
Unavailable
36
Loctite 271, 10 ml
293800005
Unavailable
