1975 Suzuki TM400 Ignition Coil - C.D. Ignition Diagram

← All diagrams

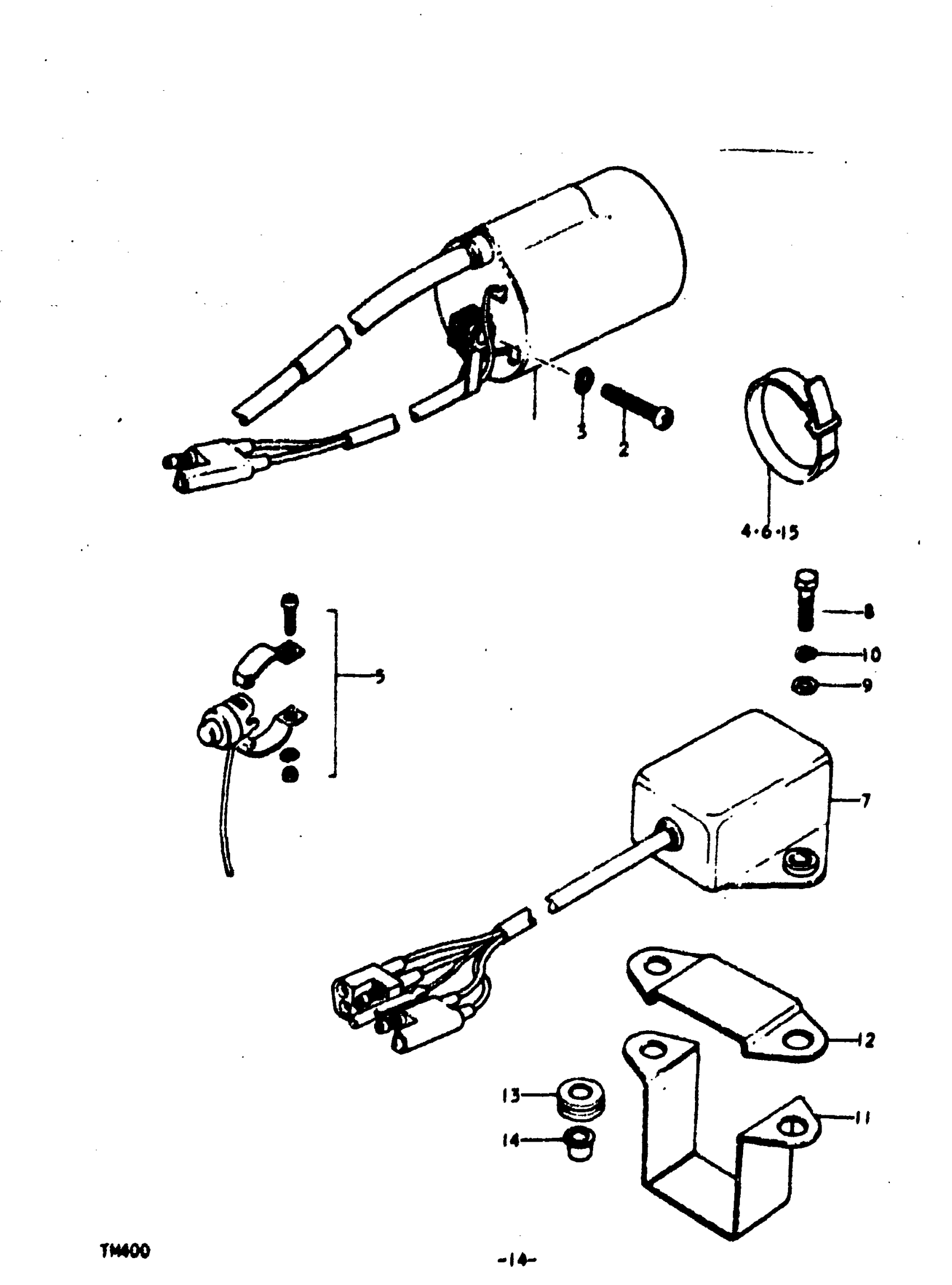

Find the part on the Ignition Coil - C.D. Ignition diagram for your 1975 Suzuki TM400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Suzuki TM400 Ignition Coil - C.D. Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COIL ASSY, IGNITION

33410-16520

1
Out of stock

2

SCREW This part replaces 02111-05207.

02112-05207

2
Out of stock

3

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

4

CLAMP, LEAD WIRE | R,JK,L,M

09407-12402

4
Out of stock

5

SWITCH ASSY, ENGINE STOP | R,J,K,L; TO 37820-16511 This part replaces 37820-16510.

37820-14X50

1
Out of stock

5

SWITCH ASSY, ENGINE STOP | M

37820-16511

—
Out of stock

6

CLAMP, ENGINE STOP LEAD WIRE | L,M

09407-12401

—
Out of stock

7

C.D. IONITION UNIT

31900-16520

1
Out of stock

8

BOLT This part replaces 01112-06208.

01500-06207

2
Out of stock

9

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock

10

2

$2.28

In stock

11

BAND, UNIT LOWER | R,J,K

31992-16500

—
Out of stock

12

BAND, UNIT UPPER | R,J,K

31993-16500

—
Out of stock

14

WASHER | R,J,K

09169-06014

—
Out of stock

15

CLAMP | K,L,M This part replaces 09407-14301.

09407-18302

1
Out of stock
