Partiron

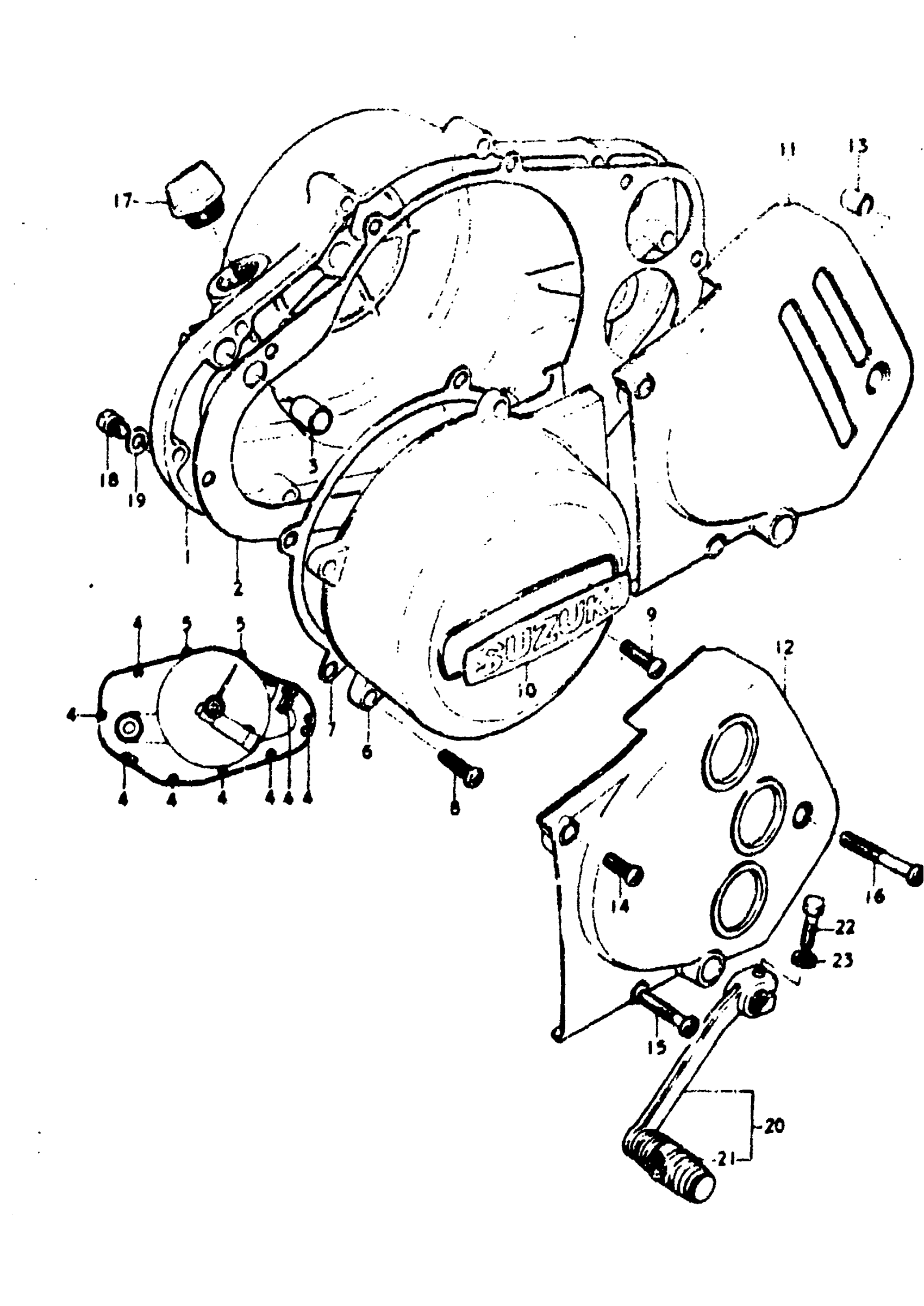

Suzuki TM400 (1975) COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-16500

Unavailable

2

GASKET, CLUTCH COVER

11482-16500

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW

02112-06307

$1.99

5

SCREW This part replaces 02112-06358.

02112-06357

$1.77

6

COVER, MAGNETO

11351-16500

Unavailable

7

GASKET, MAGNETO COVER

11483-16500

Unavailable

8

SCREW This part replaces 02112-06208.

02112-06207

$1.77

9

SCREW This part replaces 02112-06258.

02112-06257

$1.68

10

EMBLEM, MAGNETO COVER

68233-16500

Unavailable

11

COVER, ENGINE SPROCKET | R,J,K

11361-16500

Unavailable

12

COVER, ENGINE SPROCKET | L,M

11361-32300

Unavailable

13

DOWEL PIN

04211-09129

$1.64

14

SCREW This part replaces 02112-06258.

02112-06257

$1.68

15

SCREW This part replaces 02112-06358.

02112-06357

$1.77

16

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$2.00

17

PLUG SET This part replaces 09259-20003.

09200-20811

$3.63

18

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.38

19

GASKET, PLUG | 6.2x11x1

09168-06001

$1.28

20

LEVER ASSY,GEAR | Includes Item(s) 21 This part replaces 25600-16500.

25600-16521

$46.69

21

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.42

22

BOLT This part replaces 01112-06208.

01500-06207

$1.99

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83
