1975 Suzuki TM400 Flywheel Magneto Diagram

← All diagrams

Find the part on the Flywheel Magneto diagram for your 1975 Suzuki TM400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

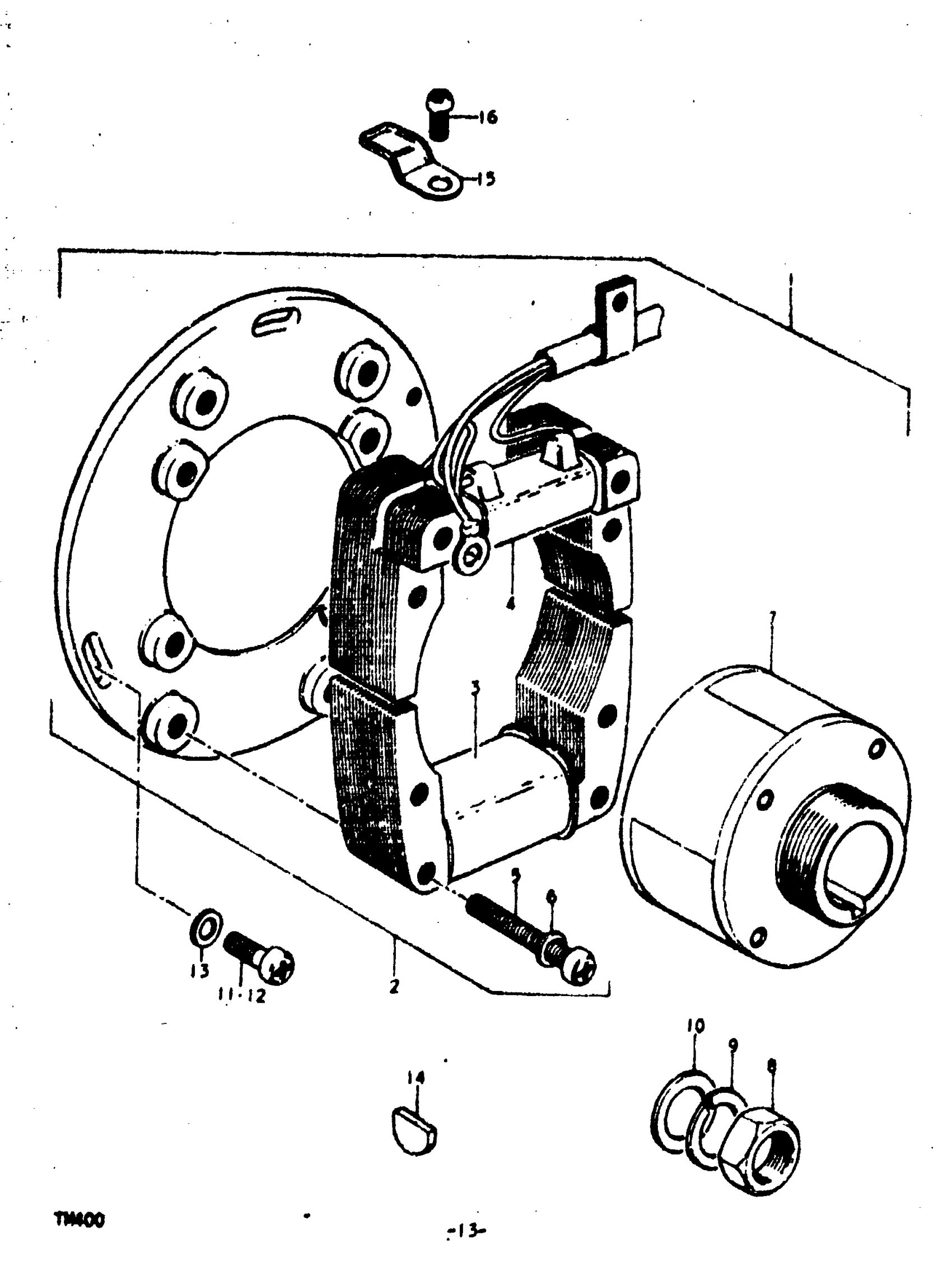

1975 Suzuki TM400 Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAGNETO ASSY | R,J; TO 32100-16521

32100-16520

—
Out of stock

1

MAGNETO ASSY | K,L,M; Includes Item(s) 2 - 7

32100-16521

—
Out of stock

2

STATOR ASSY | R,J; TO 32101-16521

32101-16520

—
Out of stock

2

STATOR ASSY | K,L,M

32101-16521

—
Out of stock

3

COIL, PRAIMARY | R,J; TO 32140-16521

32140-16520

—
Out of stock

3

COIL, PRAIMARY | K,L,M

32140-16521

1
Out of stock

4

COIL, PULSER | R,J; TO 32150-16521

32150-16520

—
Out of stock

4

COIL, PULSER | K,L,M

32150-16521

1
Out of stock

5

SCREW This part replaces 02111-05357.

02112-05357

8
Out of stock

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

8
Out of stock

7

ROTOR, FLYWHEEL

32102-16520

—
Out of stock

8

NUT This part replaces 08311-11148.

08310-0014A

1
Out of stock

9

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

1
Out of stock

10

WASHER, ROTOR | 14x27x3

09160-14015

1
Out of stock

11

SCREW | R,J,K,L This part replaces 02112-05168.

02112-05167

3
Out of stock

12

SCREW | M

09139-05011

3
Out of stock

13

WASHER This part replaces 08322-21058.

08322-01057

3
Out of stock

14

KEY This part replaces 08341-31049.

09420-04008

1
Out of stock

15

CLAMP, CABLE | R,J,K,L This part replaces 09403-06302.

09403-06301

1
Out of stock

15

CLAMP | M This part replaces 09404-06402.

09404-06039

1
Out of stock

16

SCREW This part replaces 02111-06087.

02112-06087

1
Out of stock
