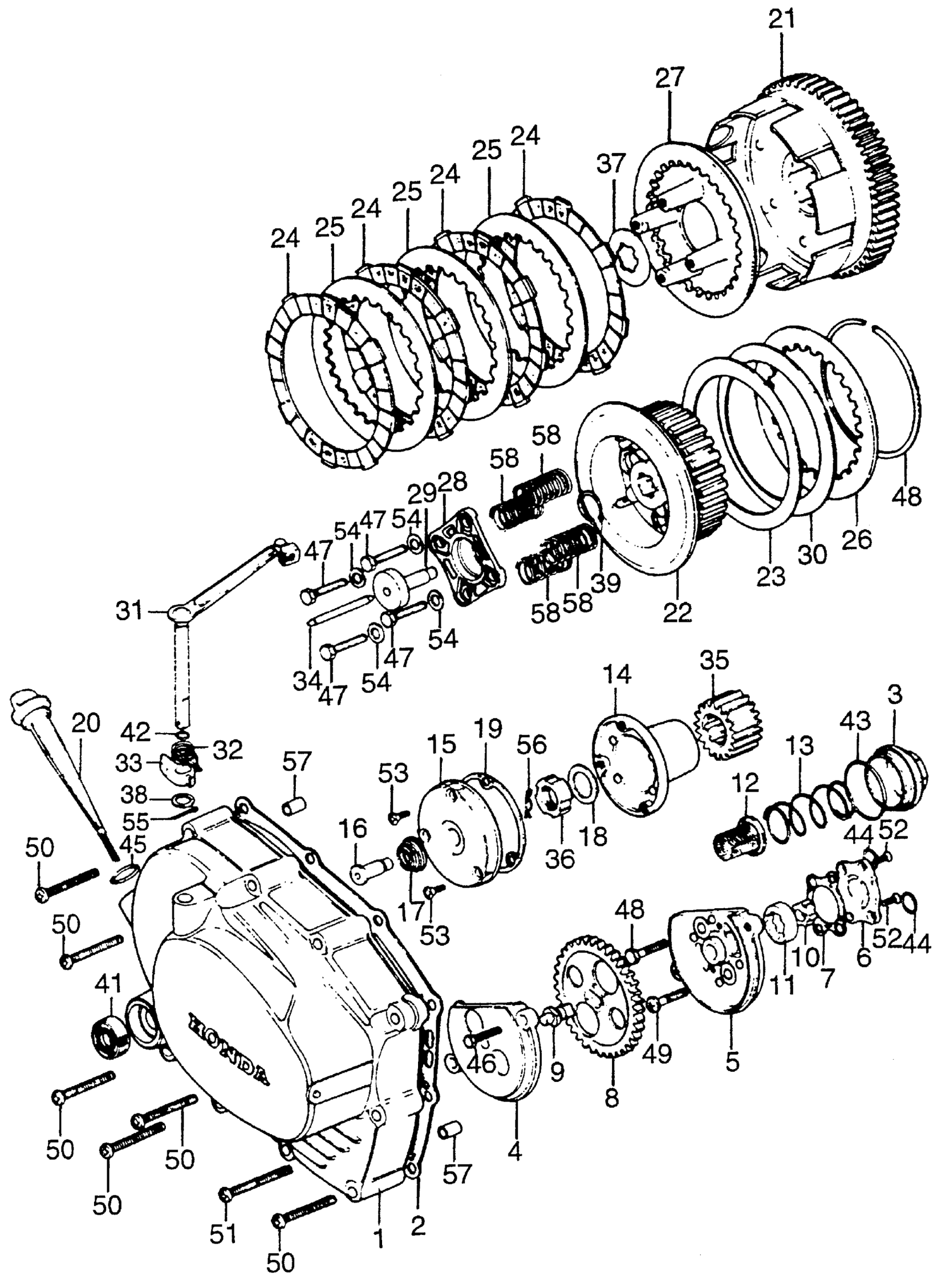

Honda TL125K1A MOTORCYCLE, JPN, VIN# TL125-1100001 RIGHT CRANKCASE COVER + CLUTCH + OIL PUMP Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE) | Use up to Engine SN 1104716

11330-355-000

Unavailable

1

COVER, R. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 1104717

11330-355-010

Unavailable

2

GASKET, R. This part replaces 11393-KY0-600.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-000.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-010.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-020.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-306.

11393-K0K-A00

Unavailable

3

CAP, VALVE ADJ. This part replaces 12361-107-000.

12361-383-000

$6.43

3

CAP, VALVE ADJ.

12361-383-000

$6.43

4

COVER, OIL PUMP GEAR This part replaces 15106-330-000.

15106-330-010

Unavailable

4

COVER, OIL PUMP GEAR

15106-330-010

Unavailable

5

BODY, OIL PUMP (NOT AVAILABLE)

15111-324-020

$38.64

6

PLATE, OIL PUMP

15116-107-020

Unavailable

7

GASKET, OIL PUMP

15126-107-020

$1.70

8

GEAR, OIL PUMP DRIVE (39T)

15131-324-010

$51.82

9

SHAFT, OIL PUMP (NOT AVAILABLE)

15136-330-010

Unavailable

10

ROTOR SET, OIL PUMP This part replaces 15331-324-000.

15021-324-000

$46.44

11

ROTOR SET, OIL PUMP This part replaces 15332-324-000.

15021-324-000

$46.44

12

SCREEN, OIL FILTER

15421-107-000

$6.31

13

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

14

ROTOR, OIL FILTER

15430-324-000

Unavailable

15

CAP, OIL FILTER ROTOR

15436-107-000

$39.51

16

THROUGH, OIL

15441-KCS-650

$6.77

16

THROUGH, OIL This part replaces 15441-107-000.

15441-KCS-650

$6.77

17

SPRING, OIL THROUGH

15446-107-000

$4.11

18

WASHER, OIL FILTER ROTOR LOCKING

15451-107-000

$4.03

19

GSKT, OIL FILTER CAP This part replaces 15459-KT0-710.

15459-K70-630

$3.56

19

GSKT, OIL FILTER CAP This part replaces 15459-107-000.

15459-K70-630

$3.56

19

GSKT, OIL FILTER CAP This part replaces 15459-107-306.

15459-K70-630

$3.56

20

DIPSTICK, OIL

15650-365-000

Unavailable

21

CLUTCH OUTER This part replaces 22100-324-000.

22100-324-505

Unavailable

22

CENTER, CLUTCH (NOT AVAILABLE)

22121-355-000

Unavailable

23

SEAT, DISK SPRING (NOT AVAILABLE)

22125-355-000

Unavailable

24

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$17.44

24

DISK, CLUTCH FRICTION This part replaces 22201-KB4-670.

22201-166-000

$17.44

24

DISK, CLUTCH FRICTION This part replaces 22201-107-000.

22201-166-000

$17.44

24

DISK, CLUTCH FRICTION

22201-166-000

$17.44

25

PLATE, CLUTCH

22311-KN4-680

$6.31

25

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

26

PLATE, CLUTCH DISK SPRING (NOT AVAILABLE)

22321-355-000

Unavailable

27

PLATE, CLUTCH PRESSURE This part replaces 22350-107-000.

22350-107-010

$30.91

27

PLATE, CLUTCH PRESSURE

22350-107-010

$30.91

28

PLATE, CLUTCH LIFTER

22361-107-000

$17.55

29

PIN, CLUTCH LIFTER GUIDE (NOT AVAILABLE)

22366-355-000

Unavailable

30

DISK, CLUTCH SPRING (NOT AVAILABLE)

22402-355-000

Unavailable

31

LEVER, CLUTCH (NOT AVAILABLE)

22810-355-000

Unavailable

32

SPRING, CLUTCH LEVER

22816-355-000

Unavailable

33

CAM, CLUTCH LIFTER

22821-355-000

Unavailable

34

ROD, CLUTCH LIFTER

22850-355-000

Unavailable

35

GEAR, PRIMARY DRIVE (18T) (NOT AVAILABLE)

23121-324-000

Unavailable

36

NUT, LOCK (16MM)

90231-107-000

Unavailable

37

WASHER B, SPLINE (20MM)

90461-107-000

$4.58

38

WASHER, SHOE ADJUST CAM (NOT AVAILABLE)

90503-512-000

Unavailable

39

SET-RING (20MM)

90605-200-000

$2.92

40

SET-RING, SPECIAL (82.5MM) (NOT AVAILABLE)

90609-355-000

Unavailable

41

OIL SEAL (16X28X7) This part replaces 91204-259-000.

91204-259-003

$5.60

41

OIL SEAL (16X28X7)

91204-259-003

$5.60

42

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

42

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

42

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

43

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

44

O-RING (9.4X2.4)

91304-KK3-830

$2.31

44

O-RING (9.4X2.4) This part replaces 91304-107-000.

91304-KK3-830

$2.31

45

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

45

O-RING (18X3)

91307-035-000

$2.92

46

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

46

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

46

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

47

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

47

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

48

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

48

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

50

SCREW, PAN (6X40) | Use up to Engine SN 1104716 This part replaces 93500-06040.

93500-06040-0A

$1.49

50

SCREW, PAN (6X40) | Use from Engine SN 1104717 This part replaces 93500-06040.

93500-06040-0A

$1.49

50

SCREW, PAN (6X40) | Use up to Engine SN 1104716

93500-06040-0A

$1.49

50

SCREW, PAN (6X40) | Use from Engine SN 1104717

93500-06040-0A

$1.49

51

SCREW, PAN (6X50) | Use from Engine SN 1104717 This part replaces 93500-06050.

93500-06050-0A

$1.49

51

SCREW, PAN (6X50) | Use from Engine SN 1104717

93500-06050-0A

$1.49

52

SCREW, FLAT (4X12)

93600-04012-0A

$1.49

53

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

54

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

54

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

54

WASHER, PLAIN (6MM)

94101-06800

$1.49

55

PIN, COTTER (2.0X15)

94201-20150

$1.49

56

PIN, LOCK (8MM)

94251-08000

$1.49

57

PIN A, DOWEL (8X14)

94301-08140

$2.25

58

SPRING, CLUTCH

95014-75110

$2.26
