2001 Suzuki TL1000S Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2001 Suzuki TL1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

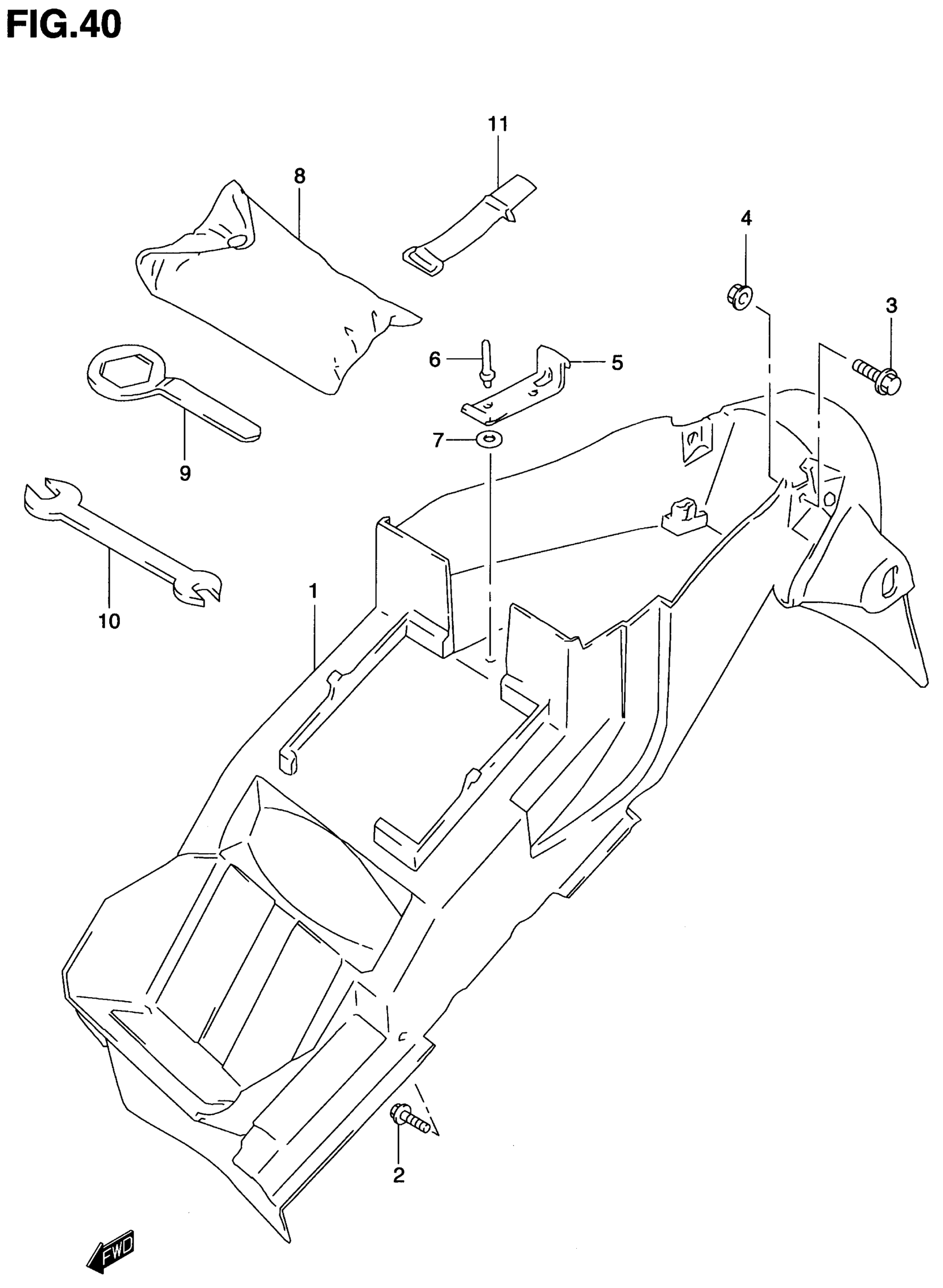

2001 Suzuki TL1000S Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR

63111-02F00

1
Out of stock

1

FENDER, REAR | E33

63111-02F10

1
Out of stock

2

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

2
Out of stock

3

BOLT, CENTER | MODEL V/W/X This part replaces 09116-06144.

09116-06165

2
Out of stock

3

BOLT | MODEL Y/K1

09116-06165

2
Out of stock

4

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

5

HOLDER, TOOL

63466-02F00

1
Out of stock

6

RIVET

09229-04020

2
Out of stock

6

RIVET | E33

09229-04020

4
Out of stock

7

WASHER This part replaces 08322-01043.

08322-0104A

2
Out of stock

7

WASHER | E33 This part replaces 08322-01043.

08322-0104A

4
Out of stock

8

TOOL ASSY | MODEL V/W This part replaces 09800-21008.

09800-21065

1
Out of stock

8

TOOL ASSY | MODEL X/Y/K1 This part replaces 09800-21039.

09800-21089

1
Out of stock

9

RING SPANNER, 36 | MODEL V/W

09817-00034

1
Out of stock

10

SPANNER (8X10)

09813-00027

1
Out of stock

11

BAND,TOOL This part replaces 47435-02F01.

47435-02F02

1
Out of stock
