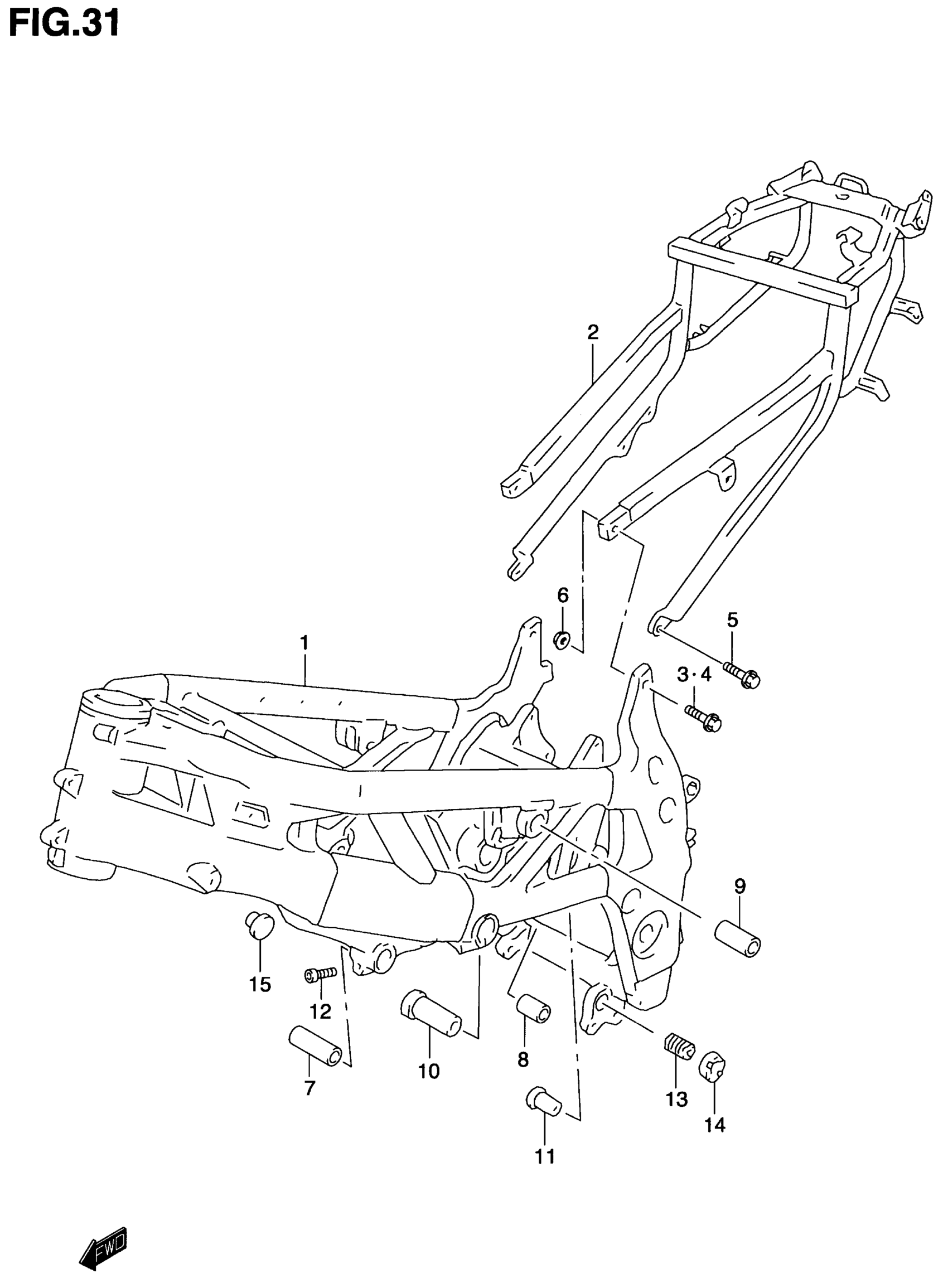

Suzuki TL1000S (2001) FRAME Diagram

#

Description
Price

1

FRAME | MODEL V This part replaces 41100-02F00.

41100-02F03

Unavailable

1

FRAME | MODEL W/X/Y/K1

41100-02F03

Unavailable

2

RAIL, SEAT

41200-02F00

Unavailable

3

BOLT, SEAT RAIL | MODEL V This part replaces 59199-33E00.

09103-10296

$6.28

3

BOLT, SEAT RAIL | MODEL W/X

09103-10296

$6.28

4

BOLT, UPPER | MODEL Y/K1

09103-10284

$5.17

5

BOLT, LOWER | MODEL Y/K1

09103-10296

$6.28

6

NUT, UPPER | MODEL Y/K1

08319-31107

$2.80

7

SPACER, ENGINE HEAD FRONT LH

41198-02F00

Unavailable

8

SPACER, ENGINE HEAD REAR RH

41941-02F00

Unavailable

9

SPACER, ENGINE HEAD REAR LH

41942-02F00

$32.40

10

SPACER, CRANKCASE FRONT LH

41932-02F00

Unavailable

11

SPACER, ENGINE MOUNT This part replaces 41911-33E00.

41911-40F01

$22.19

12

BOLT, SPACER

07130-08307

$4.98

13

BOLT, CRANKCASE ADJUST | MODEL V This part replaces 41921-33E10.

41921-33E11

Unavailable

13

BOLT, CRANKCASE ADJUST | MODEL W/X/Y/K1

41921-33E11

Unavailable

14

NUT,CRANK CASE ADJUST This part replaces 41922-33E10.

41922-33E30

$24.80

15

PLUG This part replaces 09250-06001.

09250-06005

$2.35
