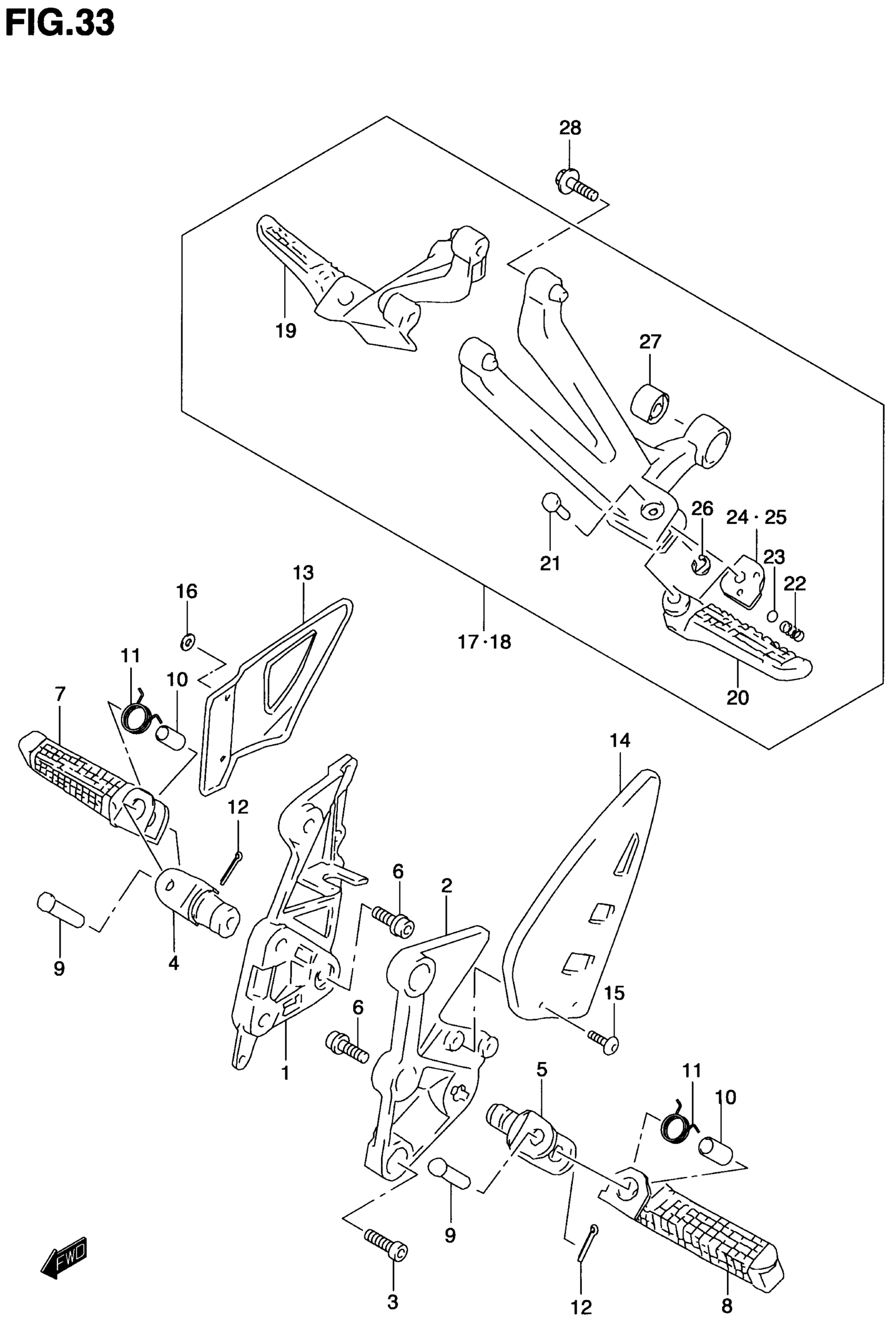

Suzuki TL1000S (2001) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-02F00

Unavailable

2

BRACKET, FRONT FOOTREST LH

43521-02F00

Unavailable

3

BOLT, BRACKET | MODEL V

07130-08207

$4.70

3

BOLT | MODEL W/X/Y/K1 This part replaces 07130-08203.

07130-0820B

$3.19

4

HOLDER, FOOTREST RH | MODEL V This part replaces 43530-17E00.

43530-17E01

$63.26

4

HOLDER, FOOTREST RH | MODEL W/X/Y/K1

43530-17E01

$63.26

5

HOLDER, FOOTREST LH

43540-17E00

$60.93

6

BOLT, HOLDER

09106-10064

$4.42

7

BAR, FRONT FOOTREST RH | MODEL V/W/X This part replaces 43510-02F00.

43510-02F11

$67.70

7

BAR, FRONT FOOTREST RH | MODEL Y/K1

43510-02F11

$67.70

8

BAR, FRONT FOOTREST LH | MODEL V/W/X This part replaces 43520-02F00.

43520-02F11

$66.75

8

BAR, FRONT FOOTREST LH | MODEL Y/K1

43520-02F11

$66.75

9

PIN

09200-08057

$2.58

10

SPACER

09180-08149

$5.10

11

SPRING

09448-18022

$3.42

12

PIN This part replaces 04111-25158.

04111-2515A

$1.64

13

GUARD, FOOTREST RH | MODEL V This part replaces 43570-02F00.

43570-02F01

Unavailable

13

GUARD, FOOTREST RH | MODEL W/X/Y/K1

43570-02F01

Unavailable

14

GUARD, FOOTREST LH | MODEL V This part replaces 43580-02F00.

43580-02F01

$82.62

14

GUARD, FOOTREST LH | MODEL W/X/Y/K1

43580-02F01

$82.62

15

BOLT, GUARD LH

09139-05033

$2.38

16

WASHER, GUARD RH

09160-06129

$2.50

17

FOOTREST ASSY, PILLION RH

43600-02F00

Unavailable

18

FOOTREST ASSY, PILLION LH | Includes Item(s) 19 - 22

43700-02F00

Unavailable

19

BAR, PILLION FOOTREST RH | MODEL V/W/X This part replaces 43611-33E00.

43611-33E11

$62.80

19

BAR, PILLION RH | MODEL Y/K1

43611-33E11

$62.80

20

BAR, PILLION FOOTREST LH | MODEL V/W/X This part replaces 43621-33E00.

43621-33E11

$62.80

20

BAR, PILLION LH | MODEL Y/K1

43621-33E11

$62.80

21

PIN

87259-85510

$4.89

22

SPRING

09440-05005

$1.45

23

BALL | Includes Item(s) 24 - 27

06111-07004

$1.22

24

PLATE, RH | MODEL V

43816-23E10

Unavailable

24

PLATE, RH | MODEL W/X This part replaces 43816-33E20.

43816-33E21

$11.76

24

PLATE, RH | MODEL Y/K1

43816-33E21

$11.76

25

PLATE, LH | MODEL V

43826-23E10

Unavailable

25

PLATE, LH | MODEL W/X This part replaces 43826-33E20.

43826-33E22

$11.76

25

PLATE, LH | MODEL Y/K1 This part replaces 43826-33E21.

43826-33E22

$11.76

26

E RING This part replaces 08332-11043.

08332-1104A

$1.37

27

BUSH This part replaces 09319-08028.

09319-08052

$23.07

28

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.31
